1pcs 12V 24V 220V 6L/min Lift=70m Deep Well Submersible Pump For Solar Energy Panels Small Mini Electric Water Transfer Pumps
1pcs 12V 24V 220V 6L/min Lift=70m Deep Well Submersible Pump For Solar Energy Panels Small Mini Electric Water Transfer Pumps
Couldn't load pickup availability
The solution to your remote water pumping needs. This pump is rugged, durable and built to last. This pump delivers a steady 103 GPH (390 LPH) at its maximum depth of 230 feet (70M) when supplied with 24 VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering, irrigation, pond aeration, remote homes and cabins.
Parameter：
Power : Electric
Voltage : DC 12V/24V
Watts : 150W
Amps : 8.0A or 4.0A Max
Net weight : 2.7kg
Gross weight ： 3kg
Maximum Lift : 230 ft (70 M)
Naximum Submersion : 100ft (30 M)
OUTLET PORT : 1/2 "(12.7 mm) Fitting
Pump Types : Submersible Pump
Protection : Thermally protected
Inlet : 40 Mesh Stainless Steel Screen
Materials : High Strength Engineered Plastics and Stainless Steel Fasteners

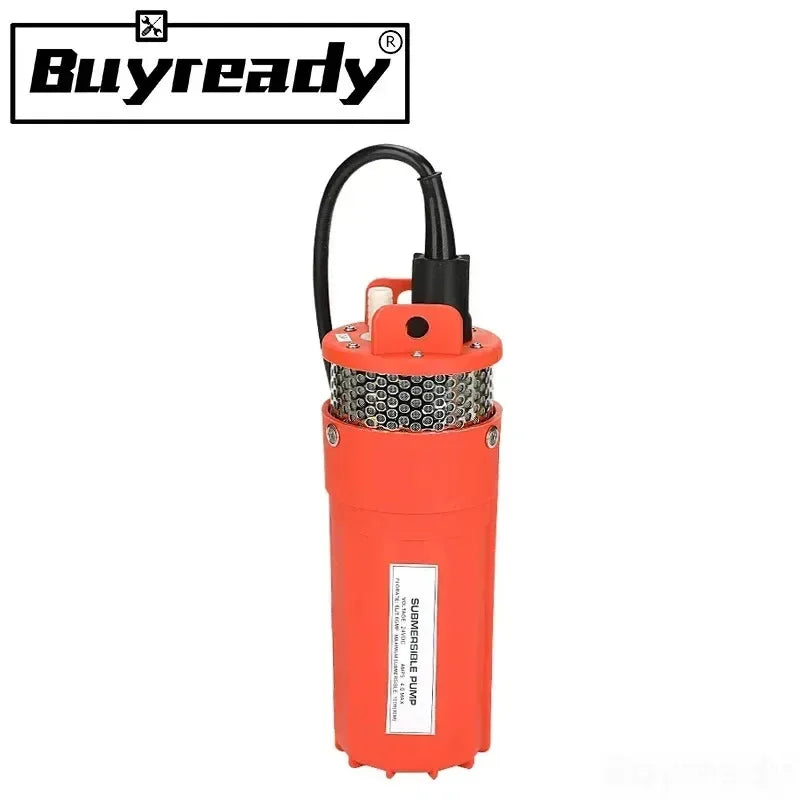

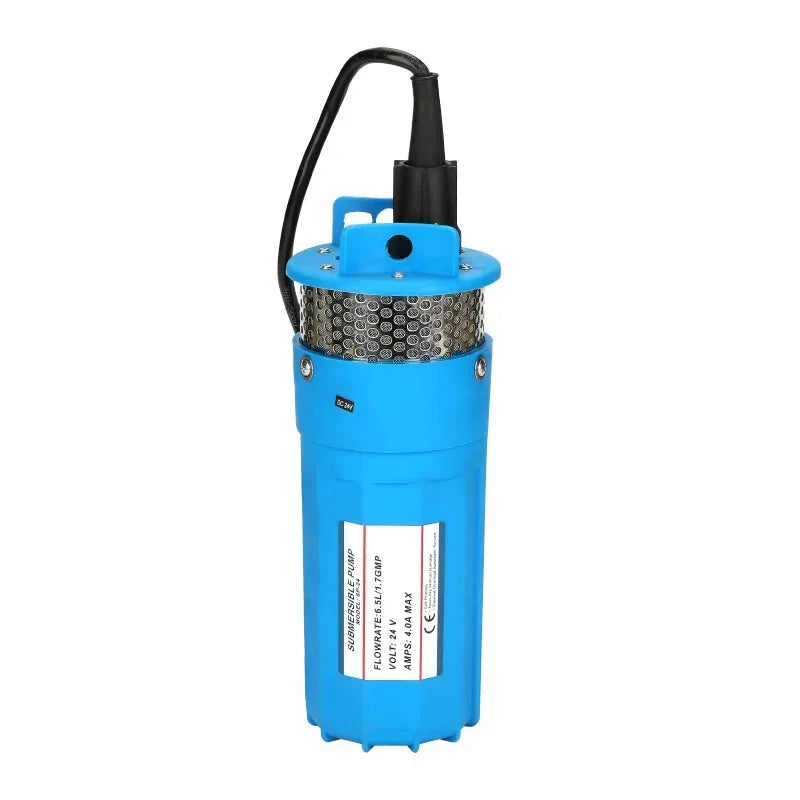

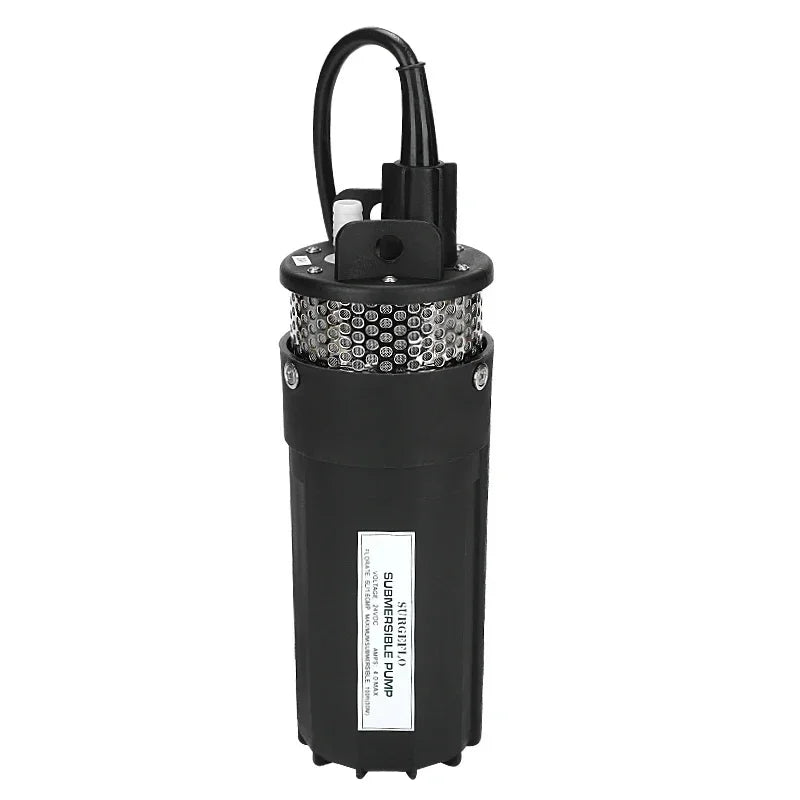

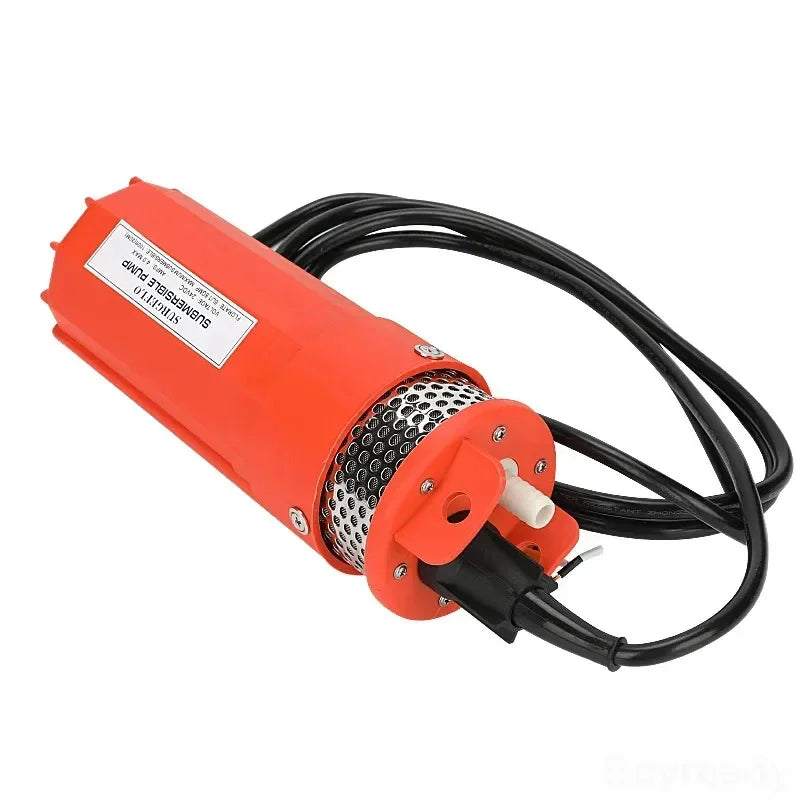

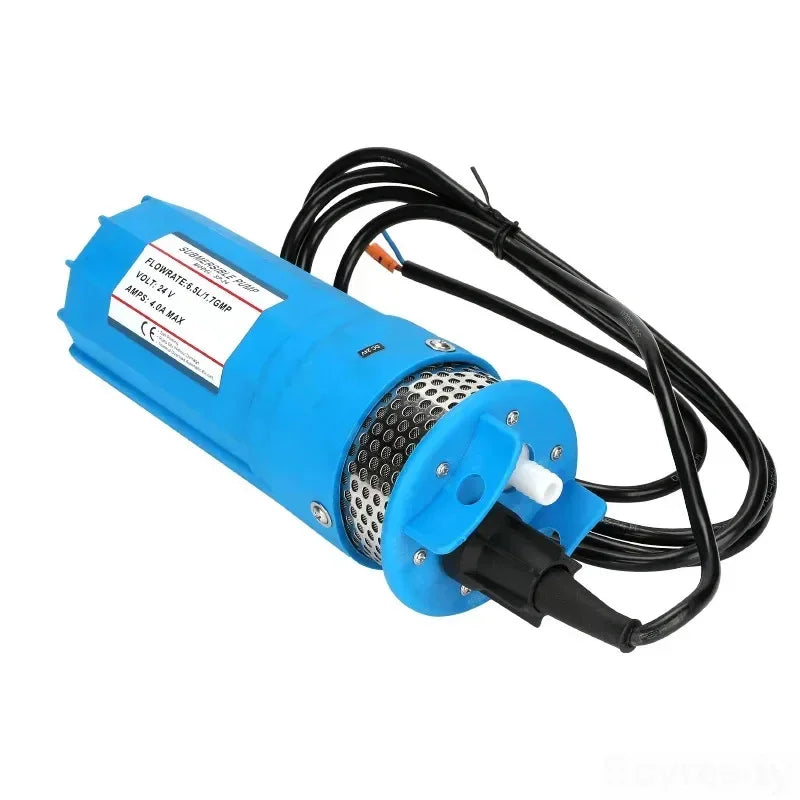

Color selection : Orange / Blue / Black

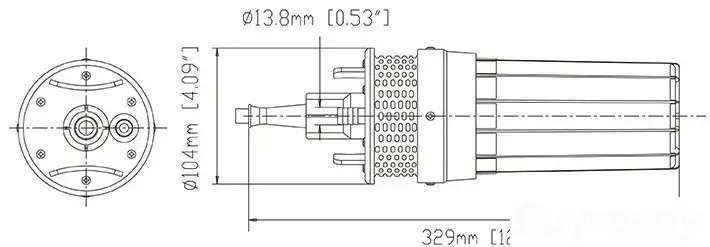

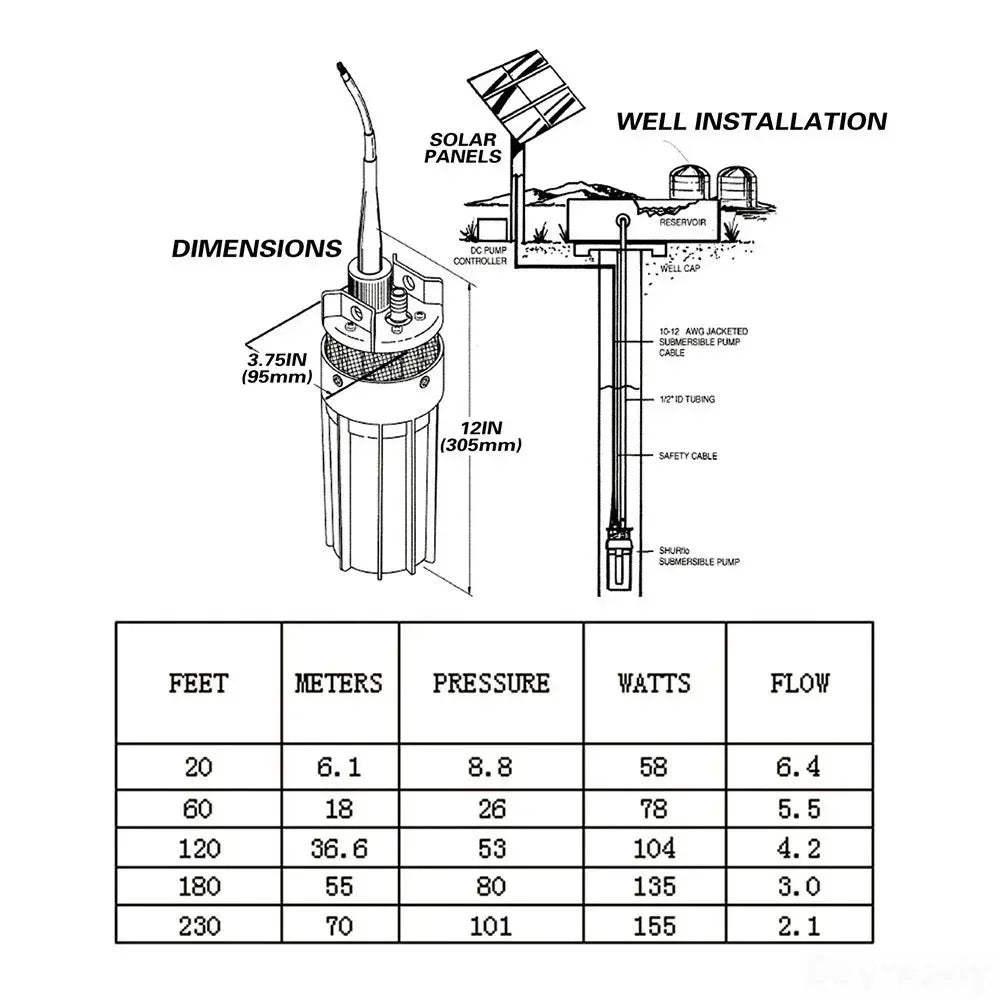

Size：
structure：
N.O |
REPLACEMENT PART KITS |
1 |
Front Cover |
2 |
3 m power cord + connect cover |
3 |
Valve + umbrella valve buckle |
4 |
In the cover assembly (including Diaphragm) |
5 |
Motor |
6 |
Motor Connecting Bracket |
7 |
Pump head + filter assembly |
8 |
Outlet assembly |
