50pcs High Pressure Atomizing Misting Nozzle Sprayer Fogging Sprinkler for Disinfection,Booth Sterilizing,Patio Garden
50pcs High Pressure Atomizing Misting Nozzle Sprayer Fogging Sprinkler for Disinfection,Booth Sterilizing,Patio Garden
Couldn't load pickup availability
Packing List:
High Pressure Misting Nozzle: 50 pcs (OR 50 pcs Connectors)
Notice: The nozzles are Separate sale with the connectors
If you need both of them,Pls order them together.Thank you!
Any questions for placing oder, please feel free to contact us. (7*24 Hours service)
Product Information:
Product Name:Name:3/16" Male thread high pressure mist nozzles
Material: brass body with stainless steel orifice
Nozzles Connection size: 3/16" Thread
Working Pressure:20bar~90bar
Purpose:humidification, dust, cooling, landscaping,Irrigation.

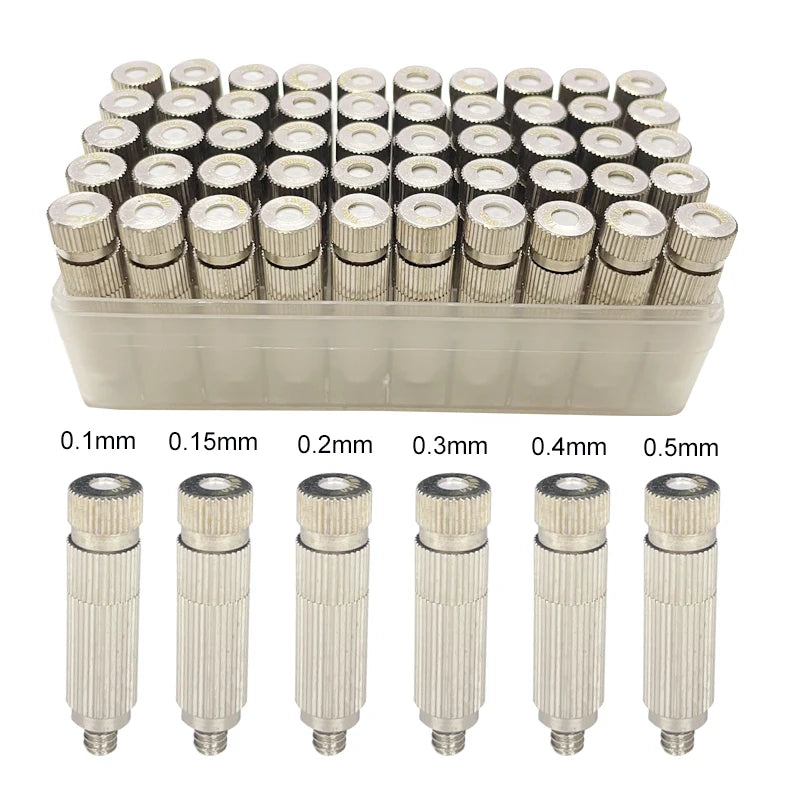

Orifice: 0.1mm,0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm
Feature:
0.1mm nozzle liter 0.05L/min
0.2mm nozzle liter 0.075L/min
0.3mm nozzle liter 0.105L/min
0.4mm nozzle liter 0.15L/min
0.5mm nozzle liter 0.19L/min

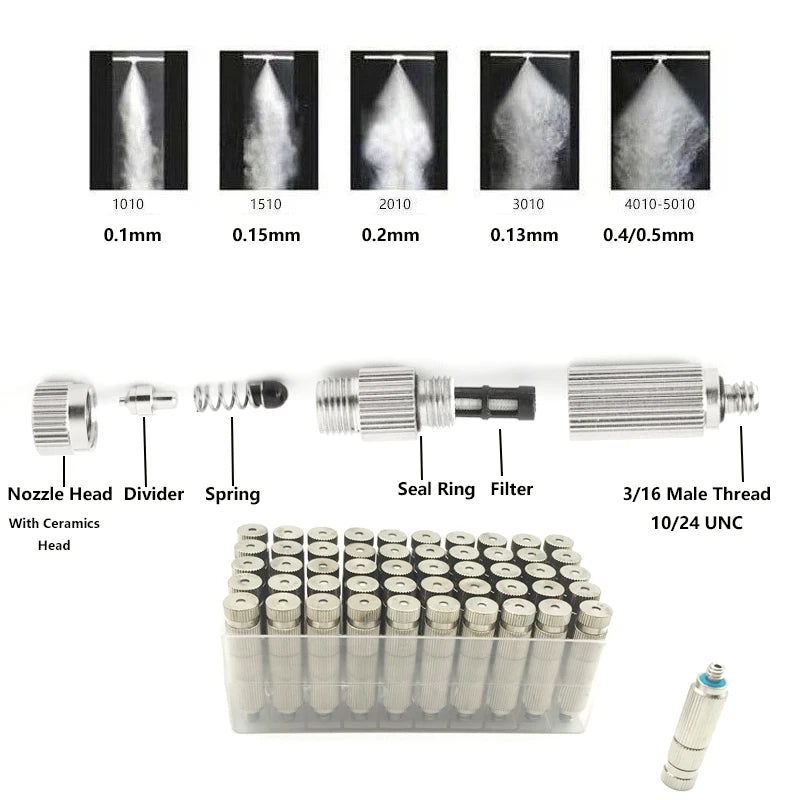

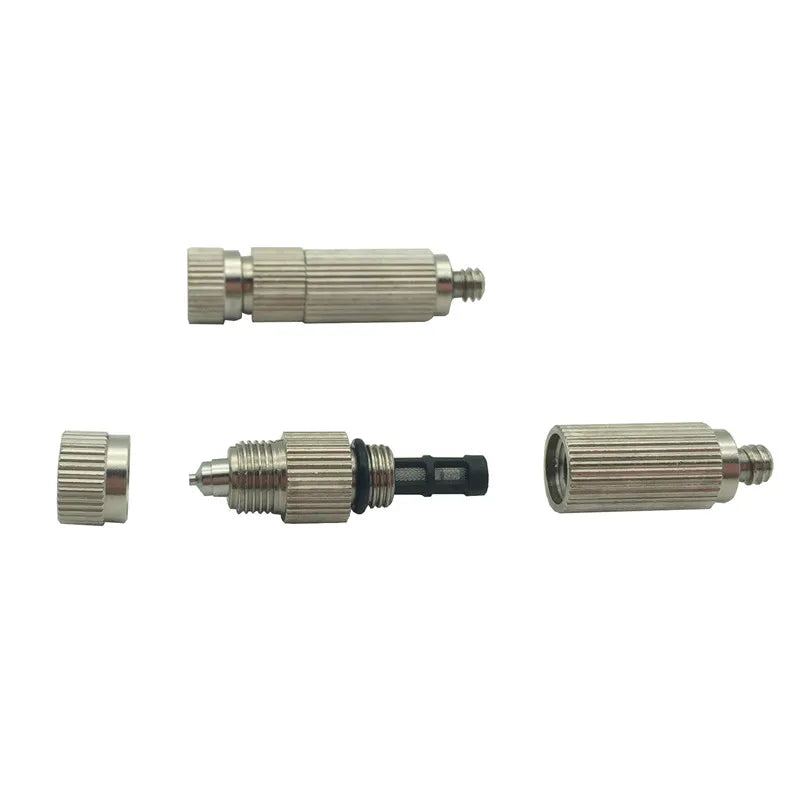

This anti-drop misting nozzle is made of stainless steel with filter inside,it contains a anti-drop device, the liquid is flowing at a high speed under pressure of 20-90 bar and forming a centrifugal vortex while passing the vane, then come out from the nozzle in a fine mist hollow spraying.
Scope:

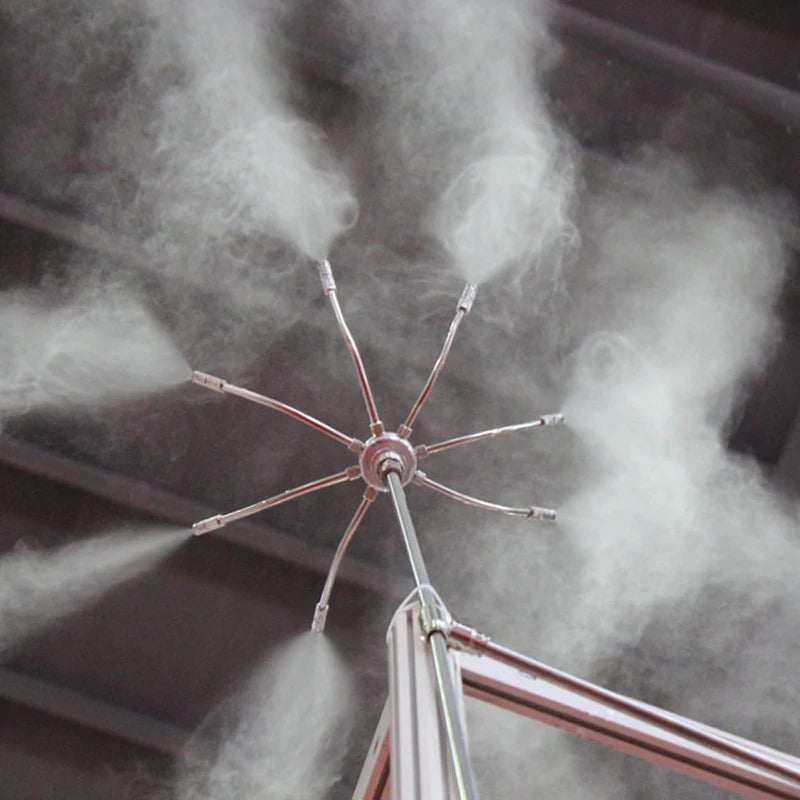

It can be widely used in garden landscaping,factory humidification, salt fog test Inspection, artificial fog and other places of required for humidifying,The orifice of this nozzle is punched by precision American punching machine which ensures the diameter is around 0.1mm-0.5mm.
