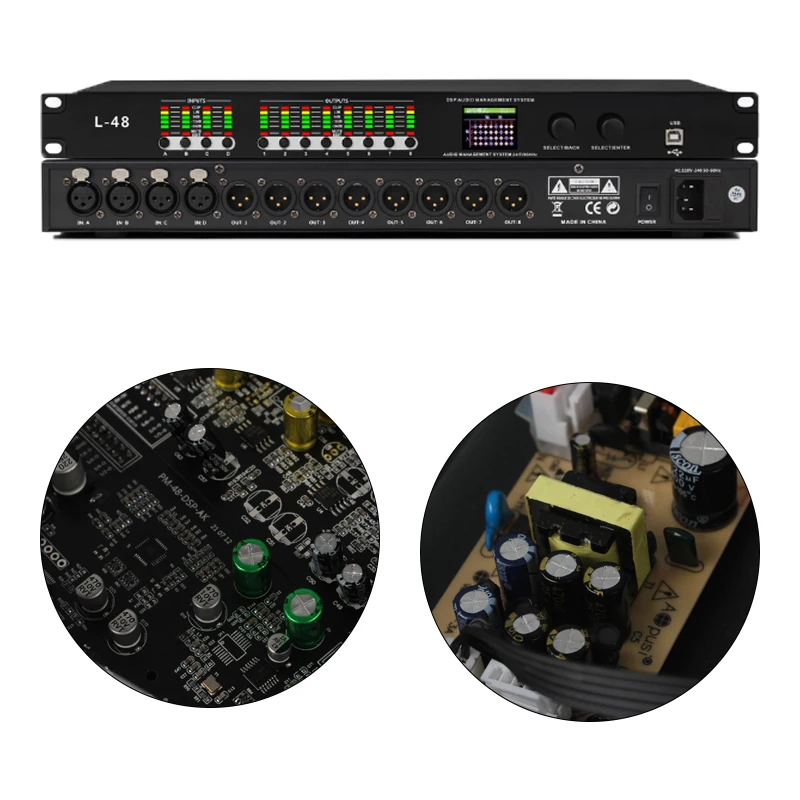

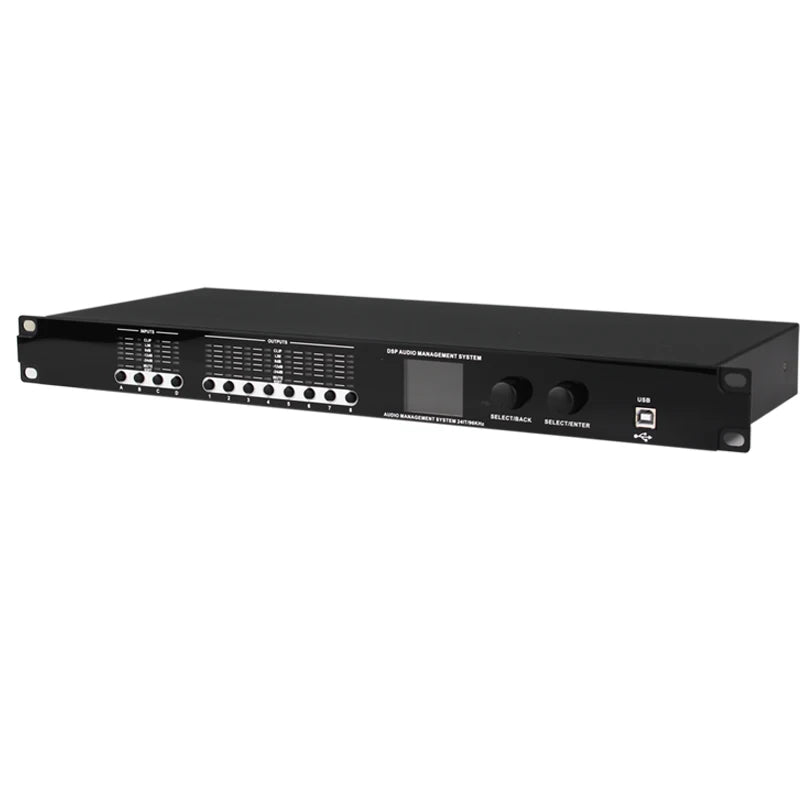

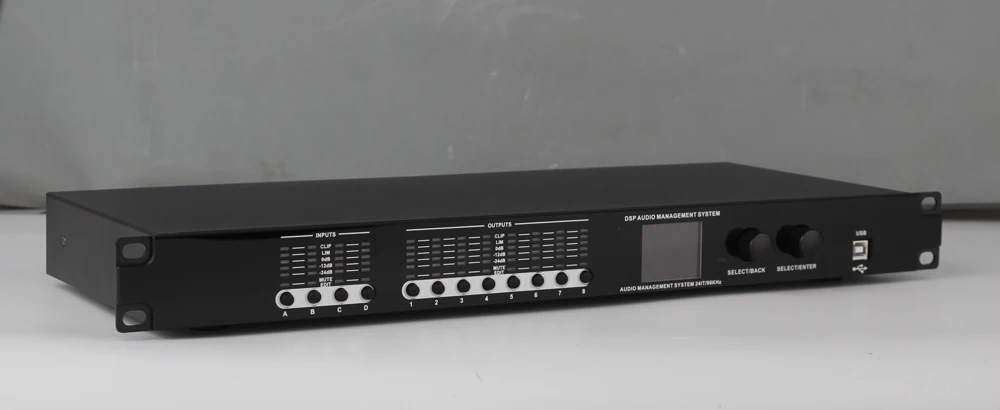

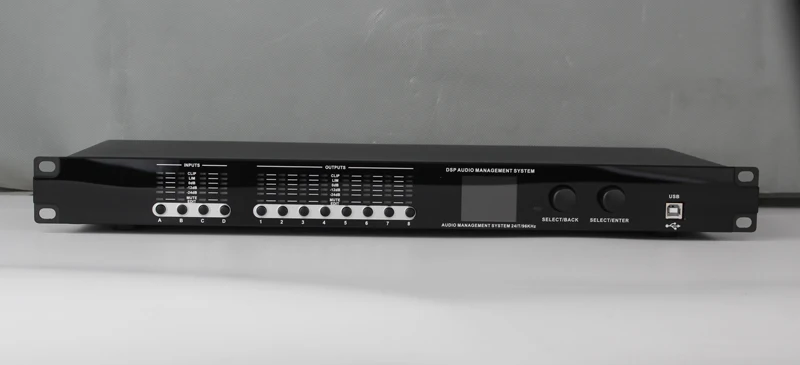

Paulkitson L-48 Professional Digital Audio Processor 4 IN 8 OUT 32-bit DSP Audio Speaker Management System Stage Performance

Paulkitson L-48 Professional Digital Audio Processor 4 IN 8 OUT 32-bit DSP Audio Speaker Management System Stage Performance Karaoke Equipment

Product Features:

● Full 32-bit high-speed digital signal processing, system delay as low as 1490ms
● Arbitrary routing and mixing control from input to output, full range of Peak compression and amplitude limiting
● Each input channel has a delay of up to 1490ms, and is equipped with 11 parametric equalizers with optional filter characteristics
● Each output channel has 11 parametric equalizers, filter characteristics are optional, and the Q value can reach up to 60
● Each output has high-pass and low-pass as well as filters, delays, compressors, and limiters
● Full Chinese and English switchable operation interface, simple and intuitive
● Balanced XLR input and output interface
● 16 savable preset modes, suitable for switching in various occasions

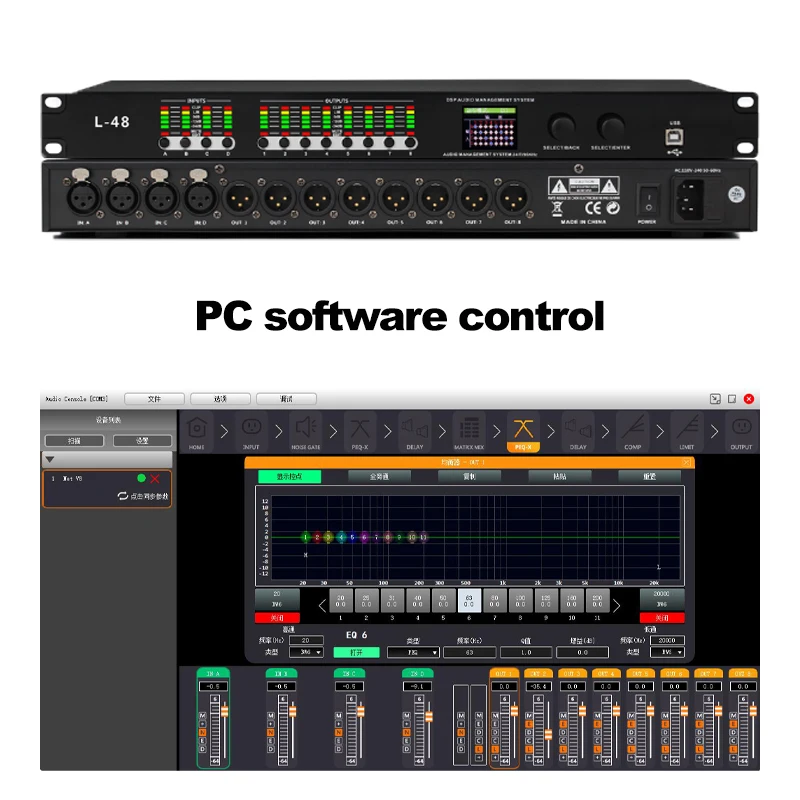

● Quickly connect to the computer operation interface via USB
● Chinese and English switchable operation display screen, intuitive and convenient operation interface

Performance Technical Parameters

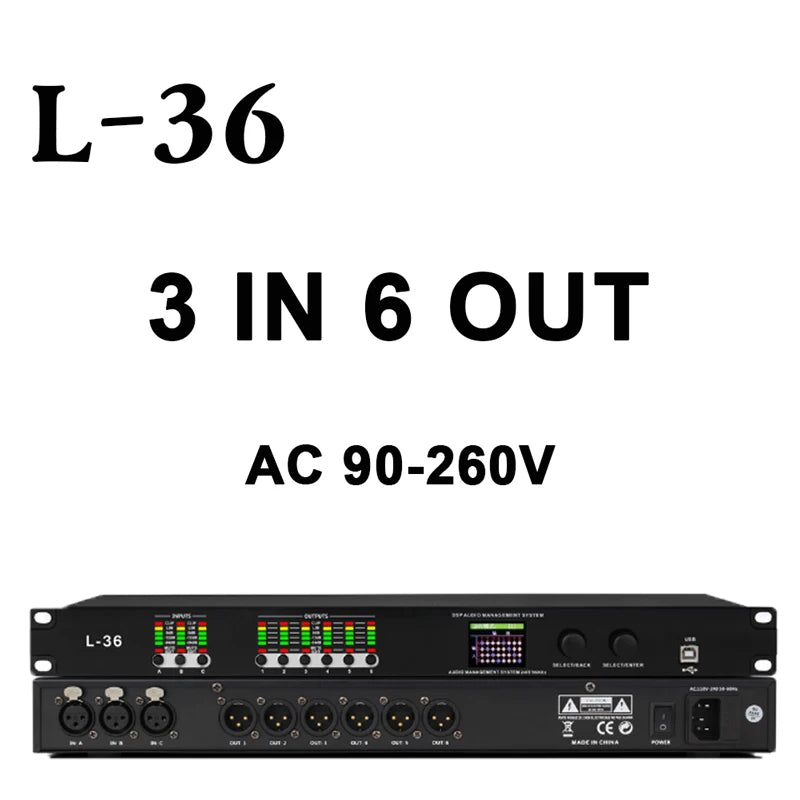

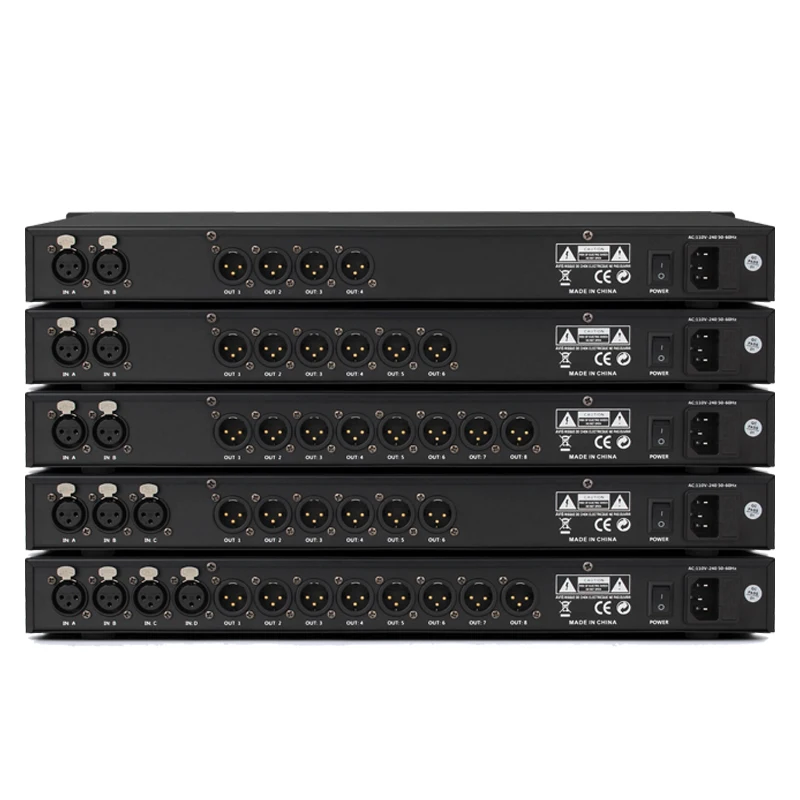

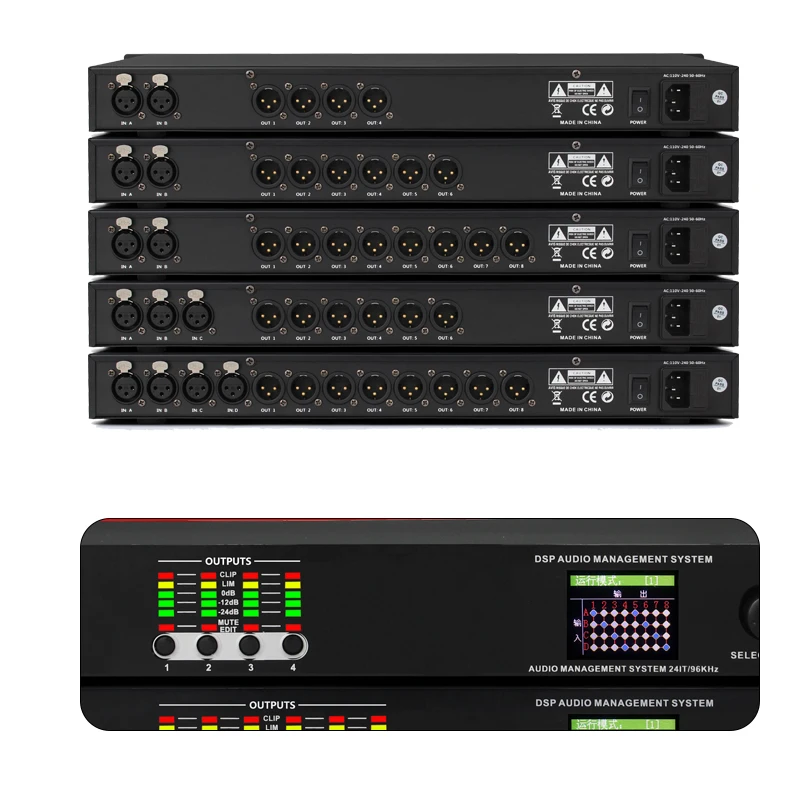

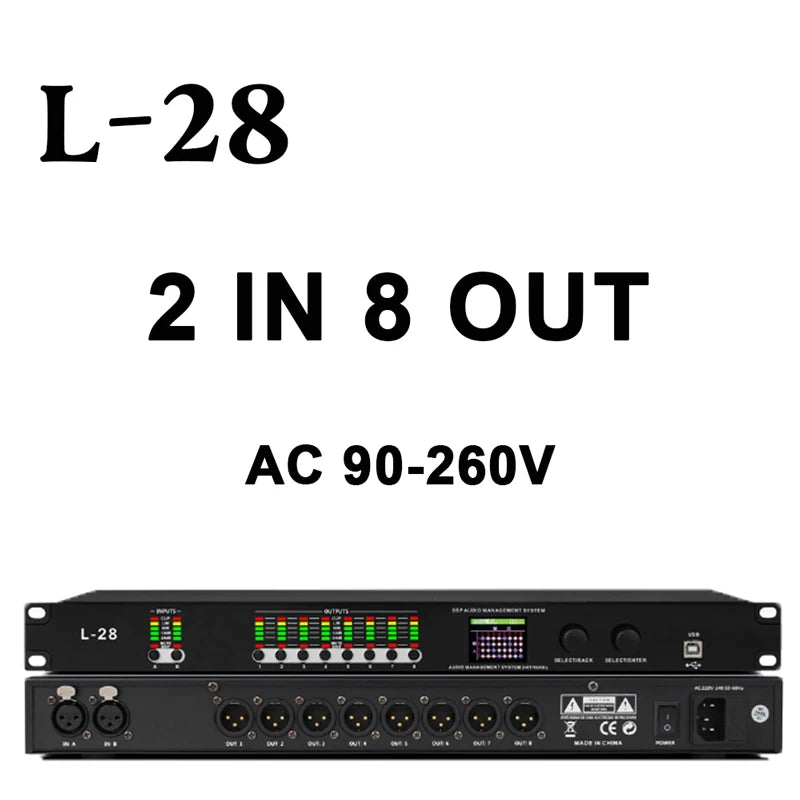

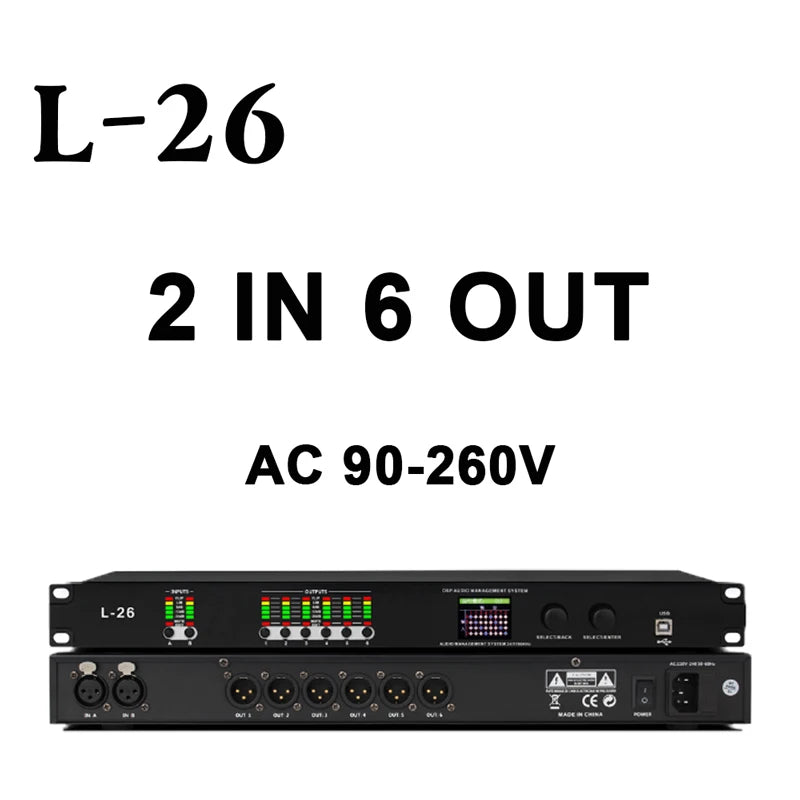

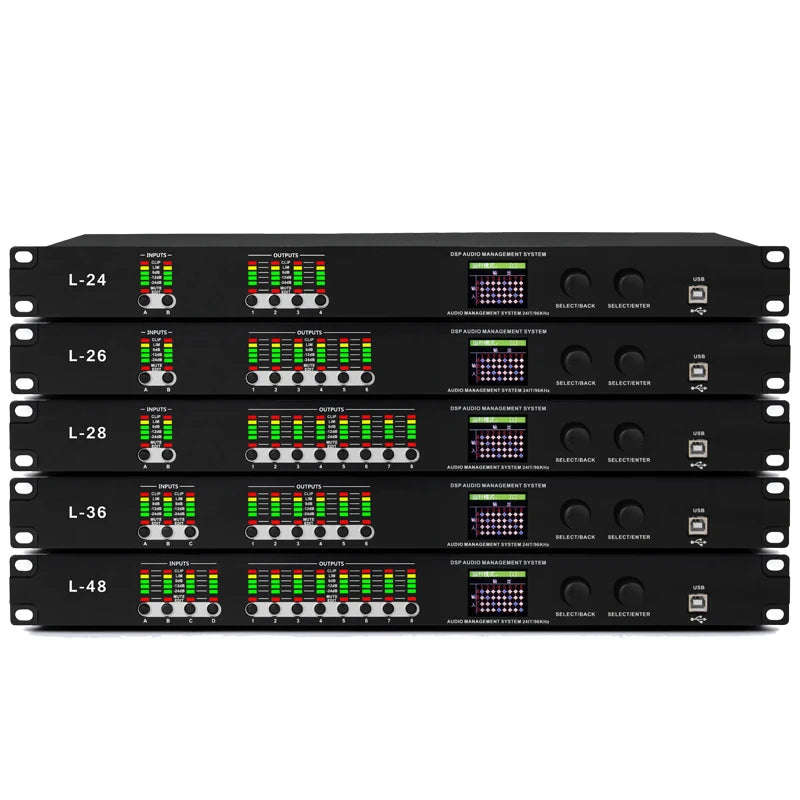

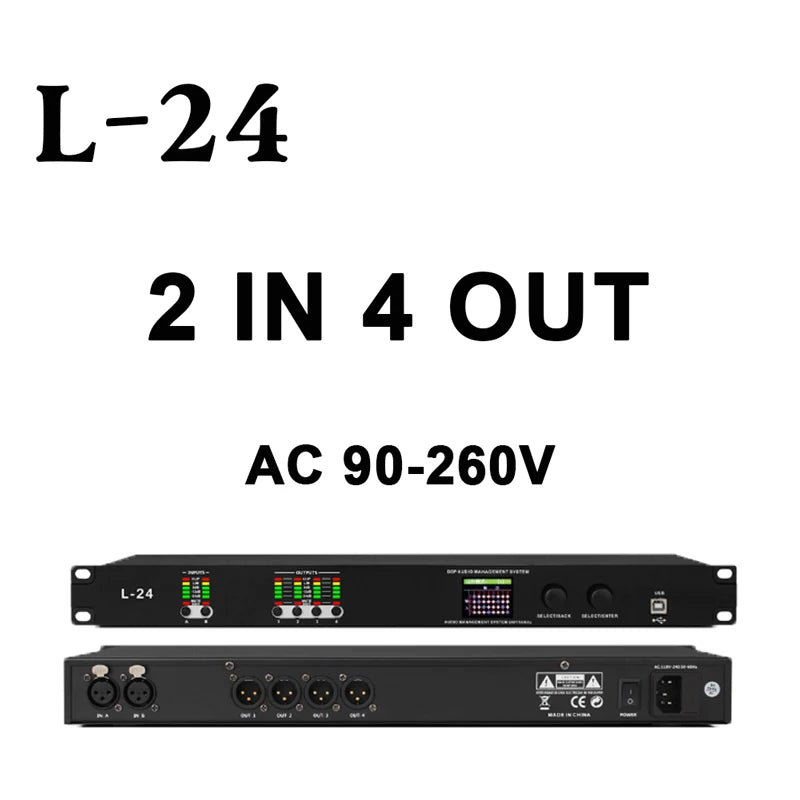

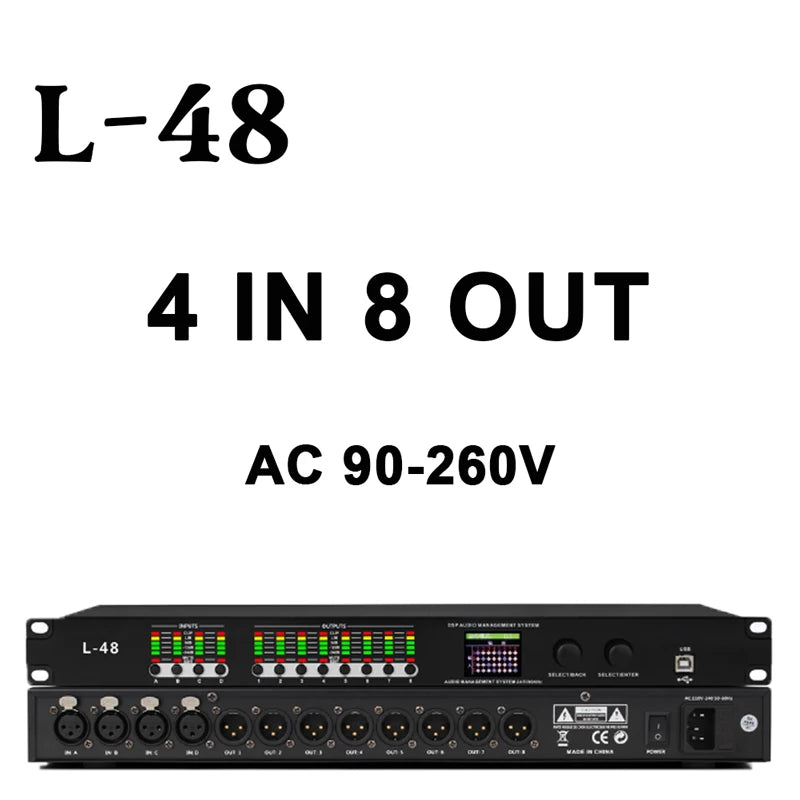

Input/Output Channels 2 in 4 out, 2 in 6 out, 2 in 8 out, 3 in 6 out, 4 in 8 out
Function of each input channel Mute Each channel has a separate mute control
Delay Each input channel has an independent delay control, the delay value is 0-1486.05MS, the step is 0.01MS
Polarity Same (+) Inverted (-)
Equalization Each input channel has 11 segments of PEQ, and the adjustment parameters in PEQ state are: center frequency point: 20Hz-20KHz, step: 1Hz, gain: ±12dB, step: 0.1dB.Q value: 0.5 to 6.0
Function of each output channel Mute Each channel has an independent mute control
Mix Each output channel can select different input channels separately, or any combination of input channels
Gain ±12dB, step: 0.1dB
Delay 0-1486.05MS
Polarity Same (+) Inverted (-)
Equalization Each channel can be set to 11 bands of equalization, with PEQ/LO-shelf/Hi-shelf optional

Crossover Low pass filter (LPF), high pass filter (HPF), filter type (PFMODE): LinkwitzRiley/Bessel/Butterworth, crossover point: 20Hz-20KHz

Attenuation slope: 6dB/oct, 12dB/oct, 18dB/oct, 24dB/oct, 30dB/oct, 36dB/oct, 42dB/oct, 48dB/oct

Limiter Each output channel can be set to a compressor individually, and the adjustable parameters are: threshold value: 17~-70dBu, step 1dBμ, release time: 1ms-200ms; step: 1ms

Input/output interface Input: XLR female Canon socket Output: XLR male Canon socket

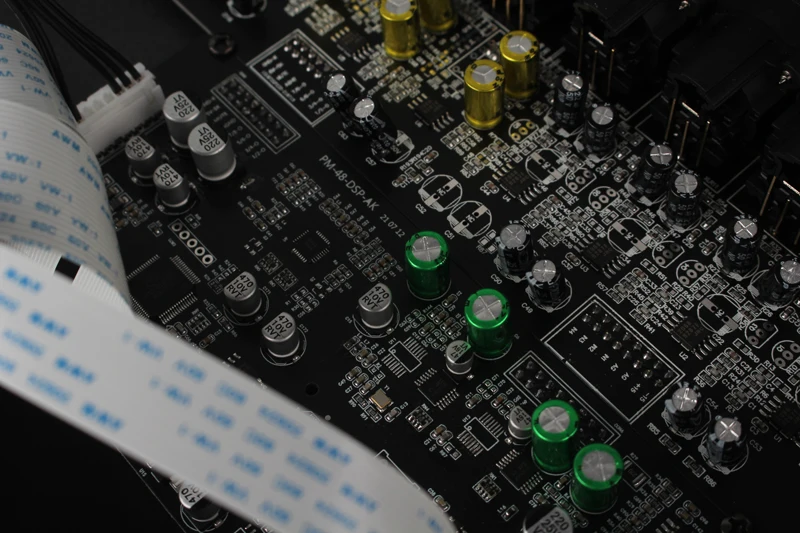

Processor 255MHz main frequency 48KHz sampling frequency 32-bit DSP processor, 24-bit/D and D/A conversion

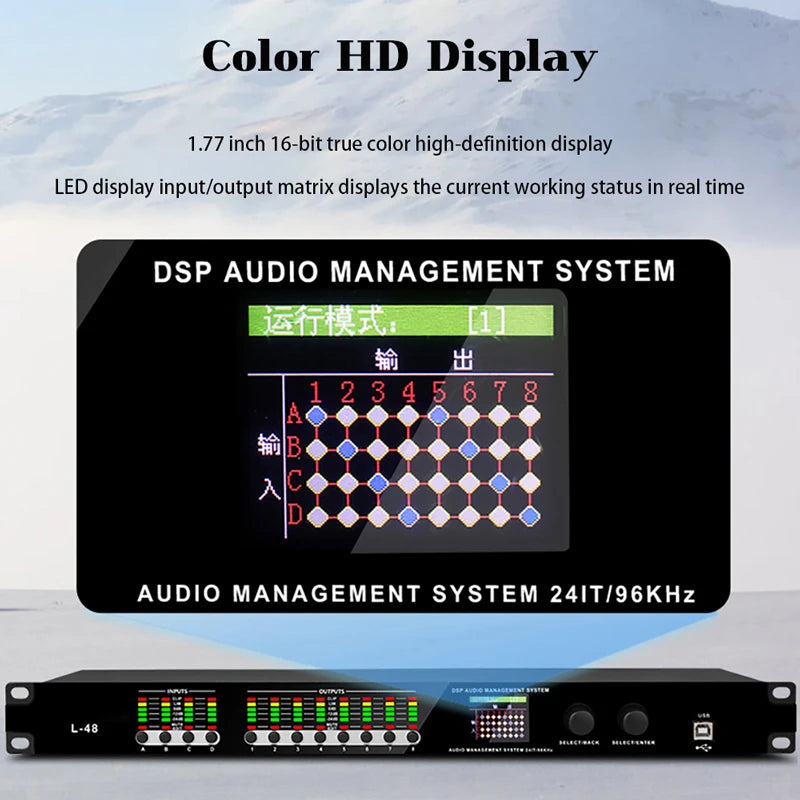

Display 1.77-inch 16-bit true color display, LED display input/output matrix
Input impedance 20KΩ
Output impedance Balanced 100Ω
Input range <14dBu
Frequency response 20Hz-20KHz (0~0.5dB)
Signal-to-noise ratio >98dB
Distortion <0.01% (Output=0dBμ/1KHz)
Separation >80dB (1KHz)

Warranty Period

The warranty period is as follows:
Warranty period: 2 years

The warranty period starts from the date of original purchase. Damage caused by human factors or force majeure is not covered by the warranty.

Terms of Service

During the warranty period, we will be responsible for repairing or replacing any defective or damaged products free of charge.
But this is only for damaged parts, if you want to replace the entire circuit board, you must pay for it.

For those that exceed the service life, we will be responsible for repairs and only charge for the replaced parts.

Shipping Costs
For all valid warranty claims, the user shall bear the shipping costs of sending replacement goods. The user shall bear the shipping costs of returning defective goods.
