0-100/0-600 /0-200/0-300/0-400Celsius degree electronic digital temperature controller thermostat powered by 220V 380V

1. Easy to learn! You can just rotate the transparent cap on the panel to set the temperature.

2. Wrong sensor alarm!Should there be anything wrong with the sensor, it'll alarm. It includes wrong sensor type, damaged sensor, or not connecting any sensor.

3. It can be used in both cooling system and heating system.

4. Large temperature range for choice!  The temperature range includes 0-100°C / 0-200°C / 0-300°C / 0-400°C / 0-600°C.

Specification:

Power supply: 220V±10% AC / 380V±10% AC (In ordering, please specify the voltage you want. The default voltage is 220V.)

Temperature range: 0-100°C / 0-200°C / 0-300°C / 0-400°C / 0-600°C (In ordering, please specify the temperature range you want.The default temperature range is 0-400°C)

Output current: 5A

Temperature difference: 2°C (It's not adjustable.)

Working environment: 0-50°C

Sensor type: K type

Panel size for assembly: 78.5mm*78.5mm

Operation instruction:

1. Wiring per the wiring diagram. Should there be anything wrong with the sensor, it'll display "HHH".

2. Rotate the transparent cap on the panel to adjust the red indicator. Let the red indicator point to the temperature you want to set. In heating system, it won't switch off before reaching the set temperature; In cooling system, it won't switch on before reaching the set temperature (See below example for more information).

Wiring diagram:

It can both used in heating (connecting terminal 7 & terminal 6) and cooling system (connecting terminal 7 & terminal 8).

In heating system, it will not switch off if the temperature hasn't reached the set temperature. In below picture, we connected 7 & 6 (heating system). In below picture, the set temperature is around 37°C. The actual temperature is 11°C. The actual temperature is lower than the set temperature, so the lamp  is on.

In below picture, we also connected 7 & 6 (heating system). But the set temperature is around 7°C. The actual temperature is 11°C. The actual temperature is higher than the set temperature, so the lamp  is off.

In cooling system, it will not switch on if the temperature hasn't reached the set temperature. In below picture, we connected 7 & 8 (cooling system).  In below picture, the set temperature is around 37°C. The actual temperature is 10°C. The actual temperature is lower than the set temperature, so the lamp  is off.

lan

 In below picture, we also connected 7 & 8 (cooling system). But the set temperature is around 7°C. The actual temperature is 11°C. The actual temperature is higher than the set temperature, so the lamp  is on.

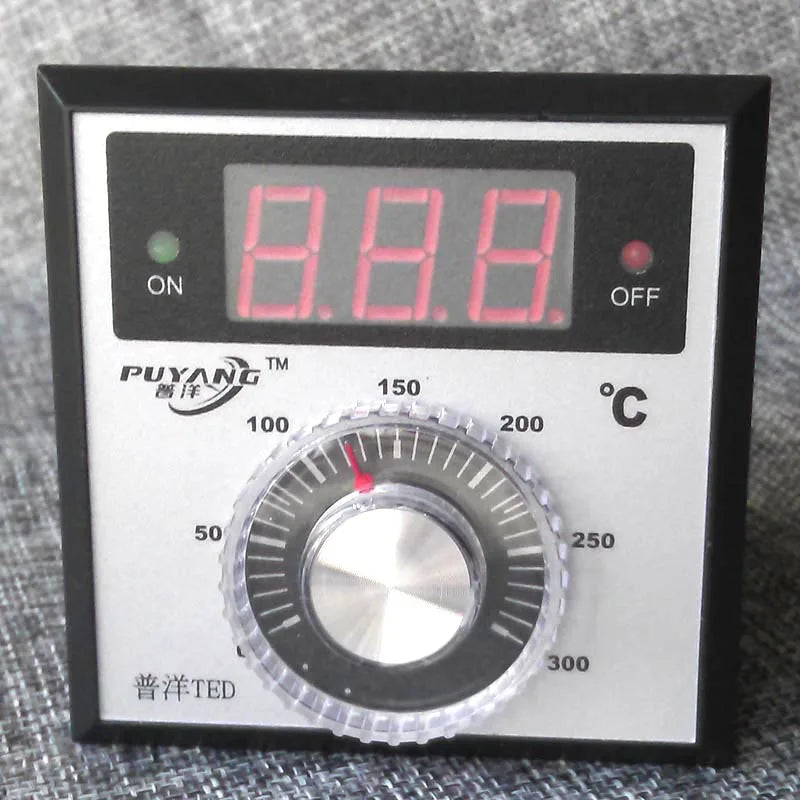

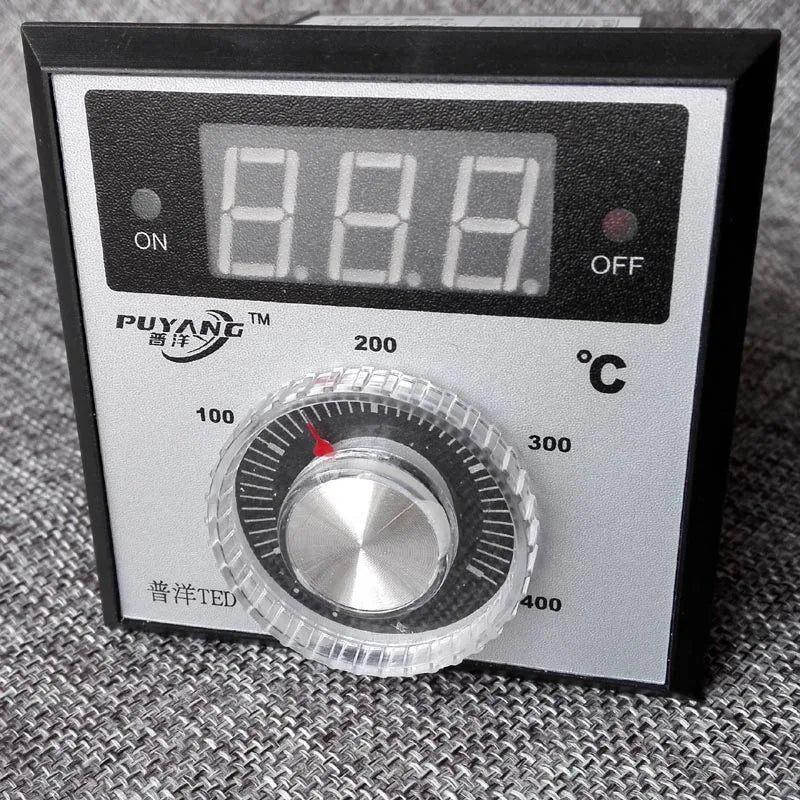

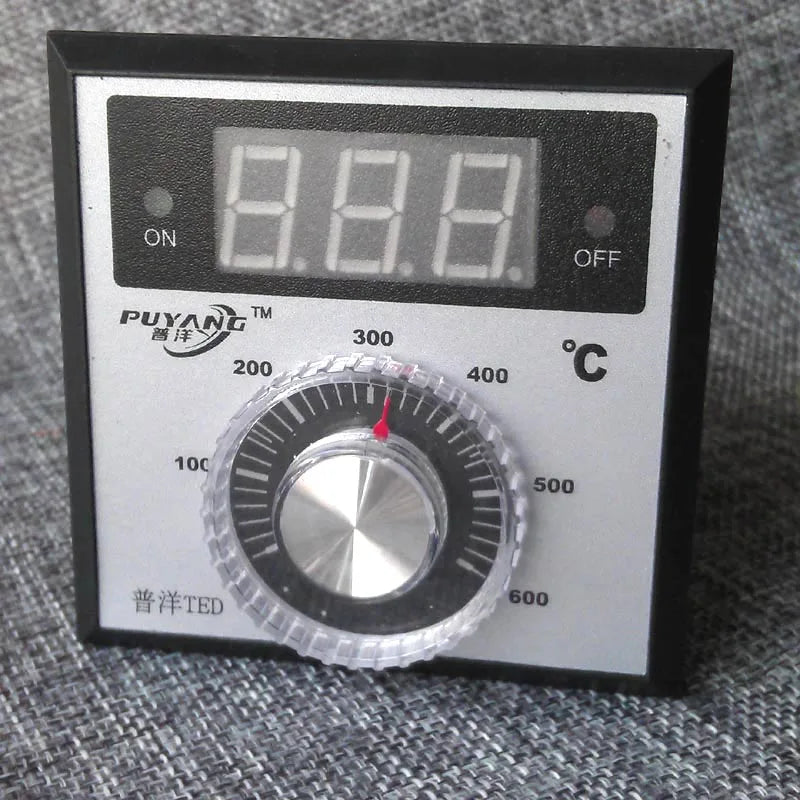

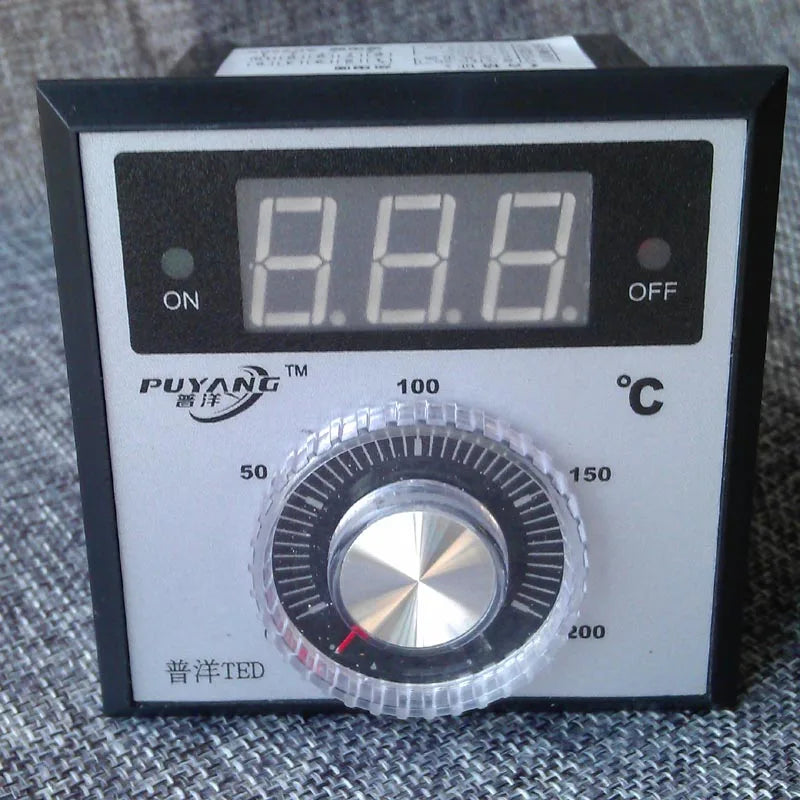

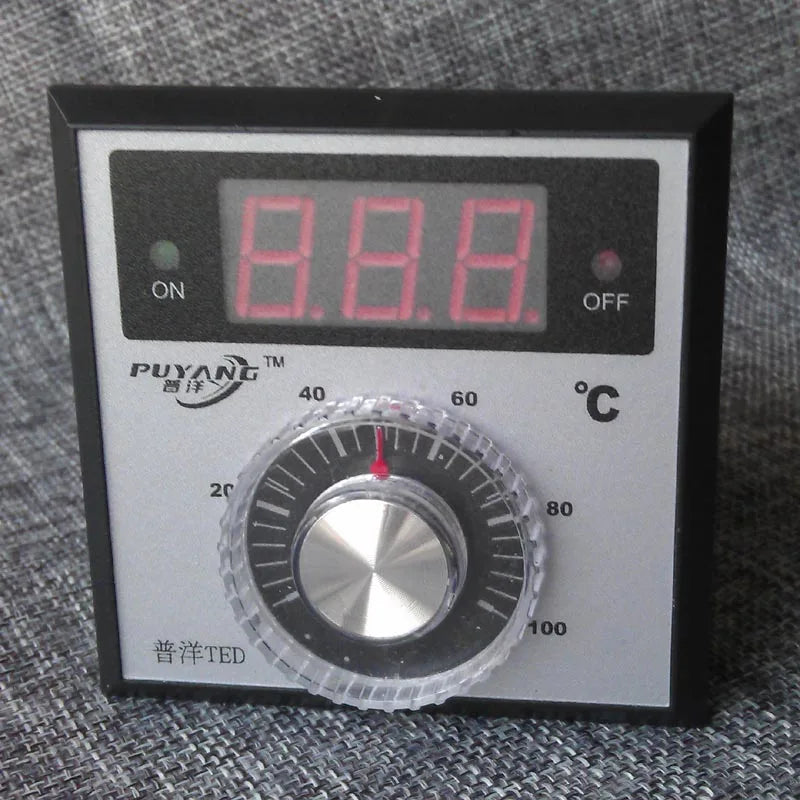

A glance of the product itself with different temperature range.

Dimension:

Note: The price doesn't include any sensor. Please order sensor separately.

Below are sensors to match it. You can click the picture to reach them.
