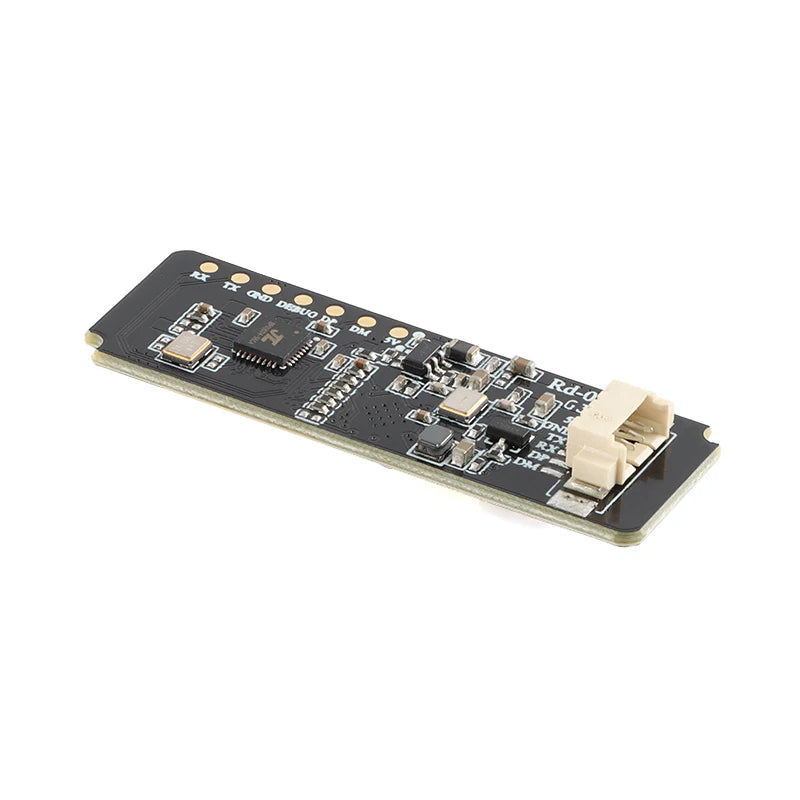

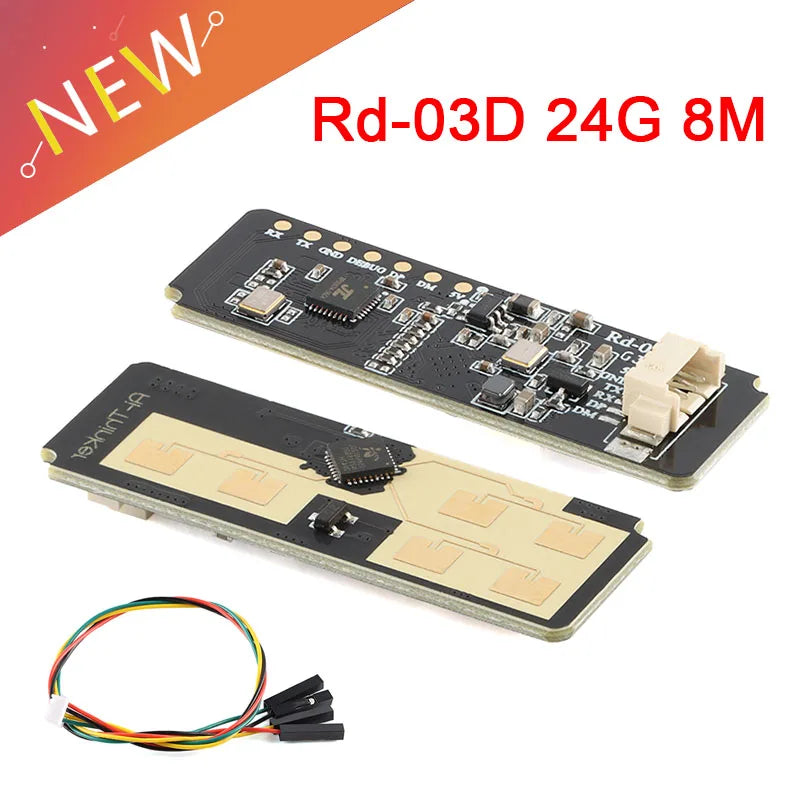

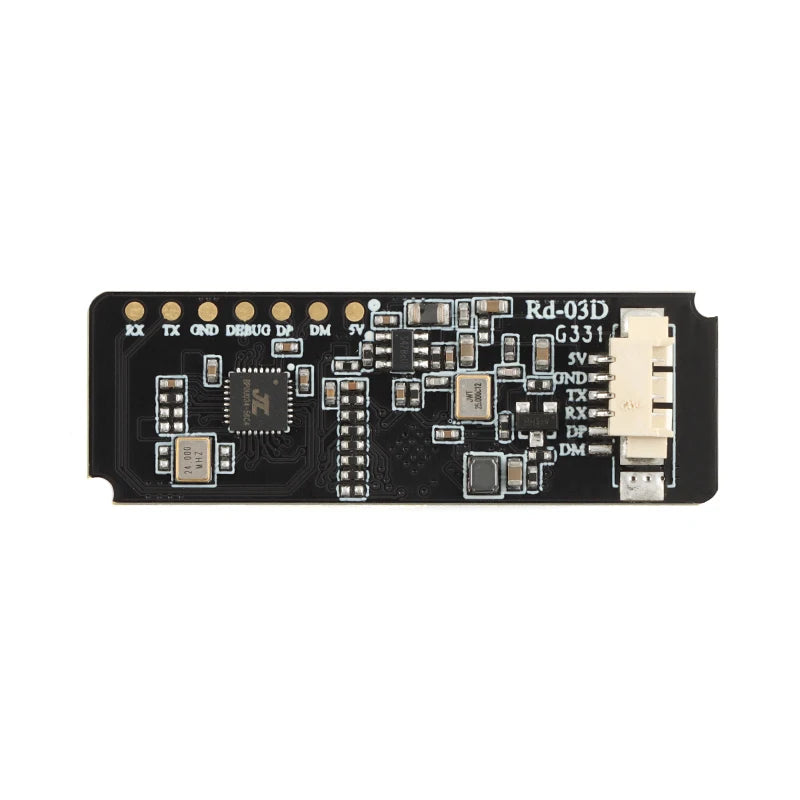

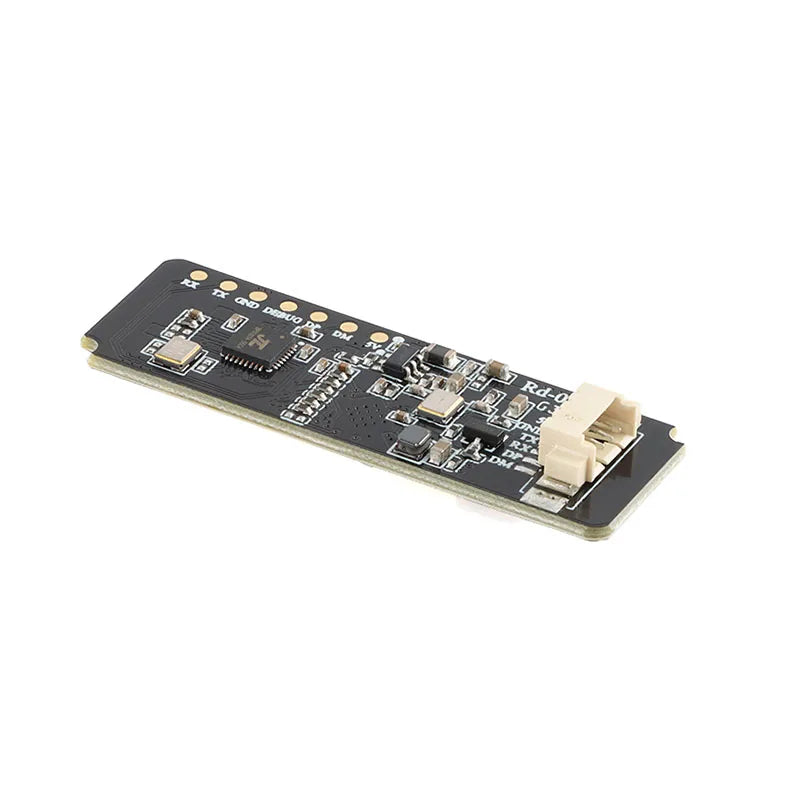

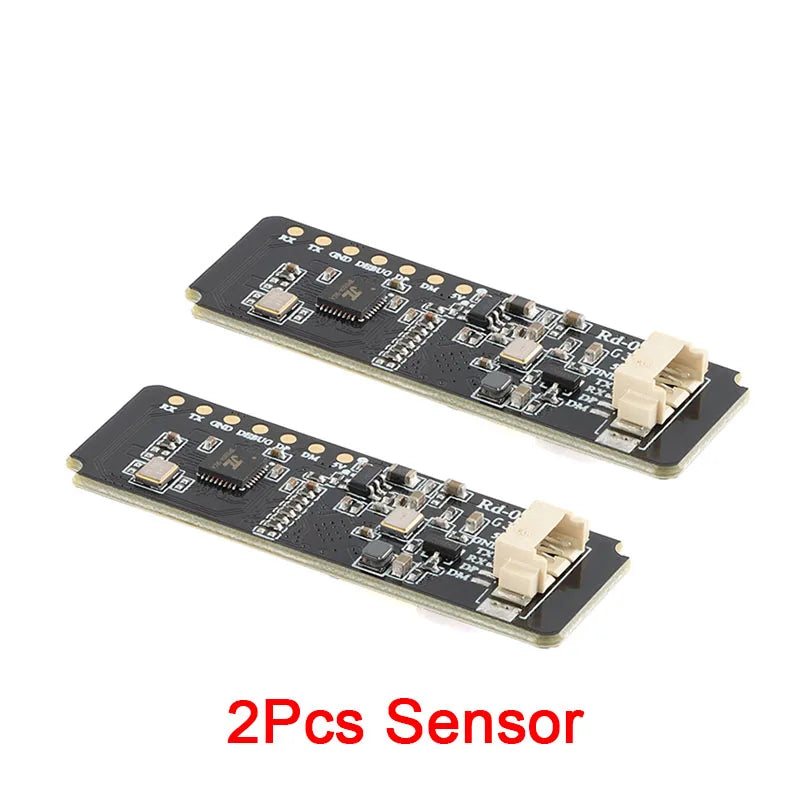

5Pcs/1pc Rd-03D 24G Multi-target Human Motion Trajectory Positioning Localization Tracking Radar Sensor Module PCB Antenna
5Pcs/1pc Rd-03D 24G Multi-target Human Motion Trajectory Positioning Localization Tracking Radar Sensor Module PCB Antenna

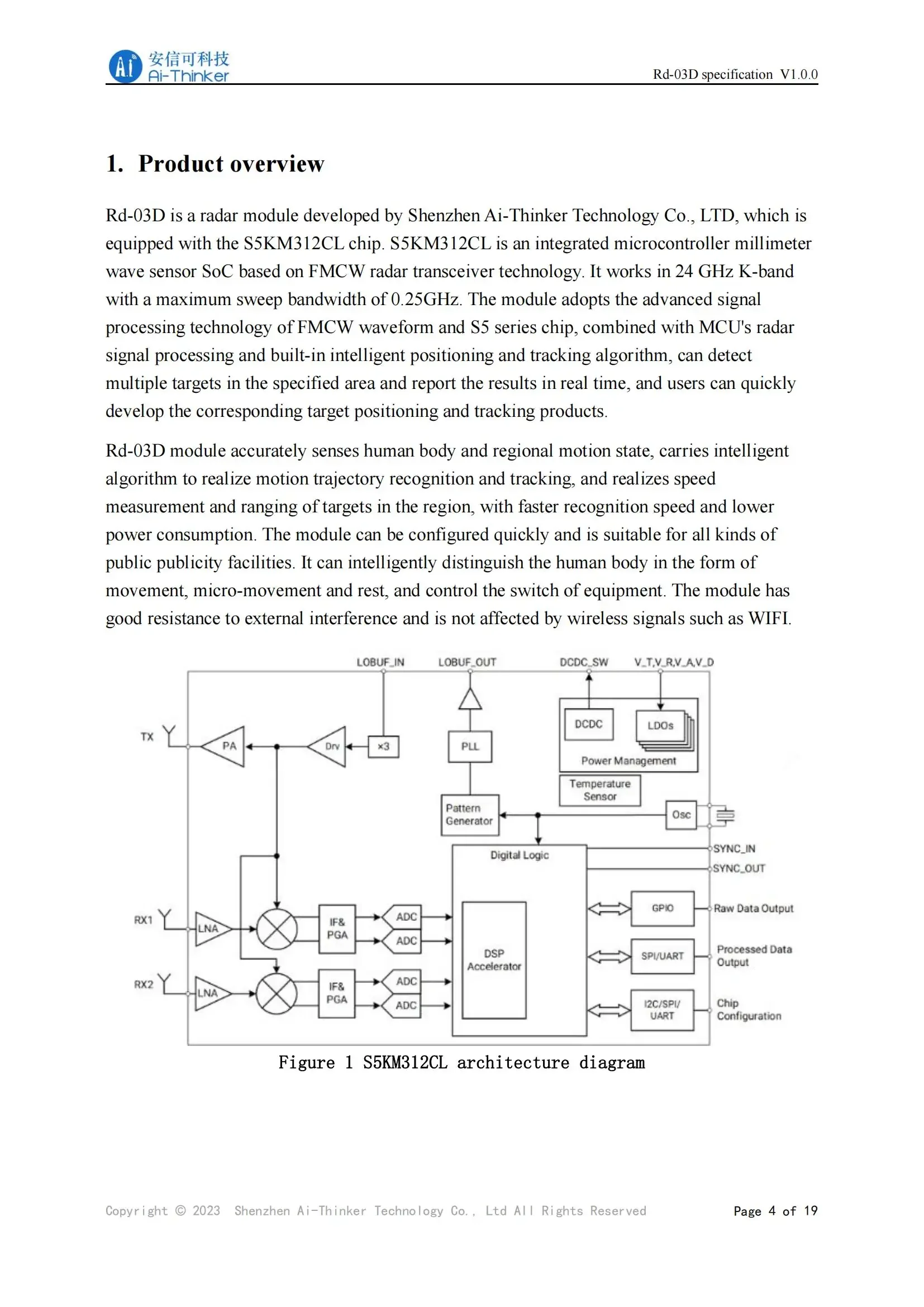

Rd-03D is a radar module equipped with Silicon Microelectronics' S5KM312CL chip. S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology. It operates in the 24 GHz K-band with a maximum sweep bandwidth of 0.25GHz. This module uses FMCW waveform and S5 series chip's proprietary advanced signal processing technology, combined with MCU's proprietary radar signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets in a designated area and report the results in real time. Users can quickly Develop corresponding targeting tracking products.

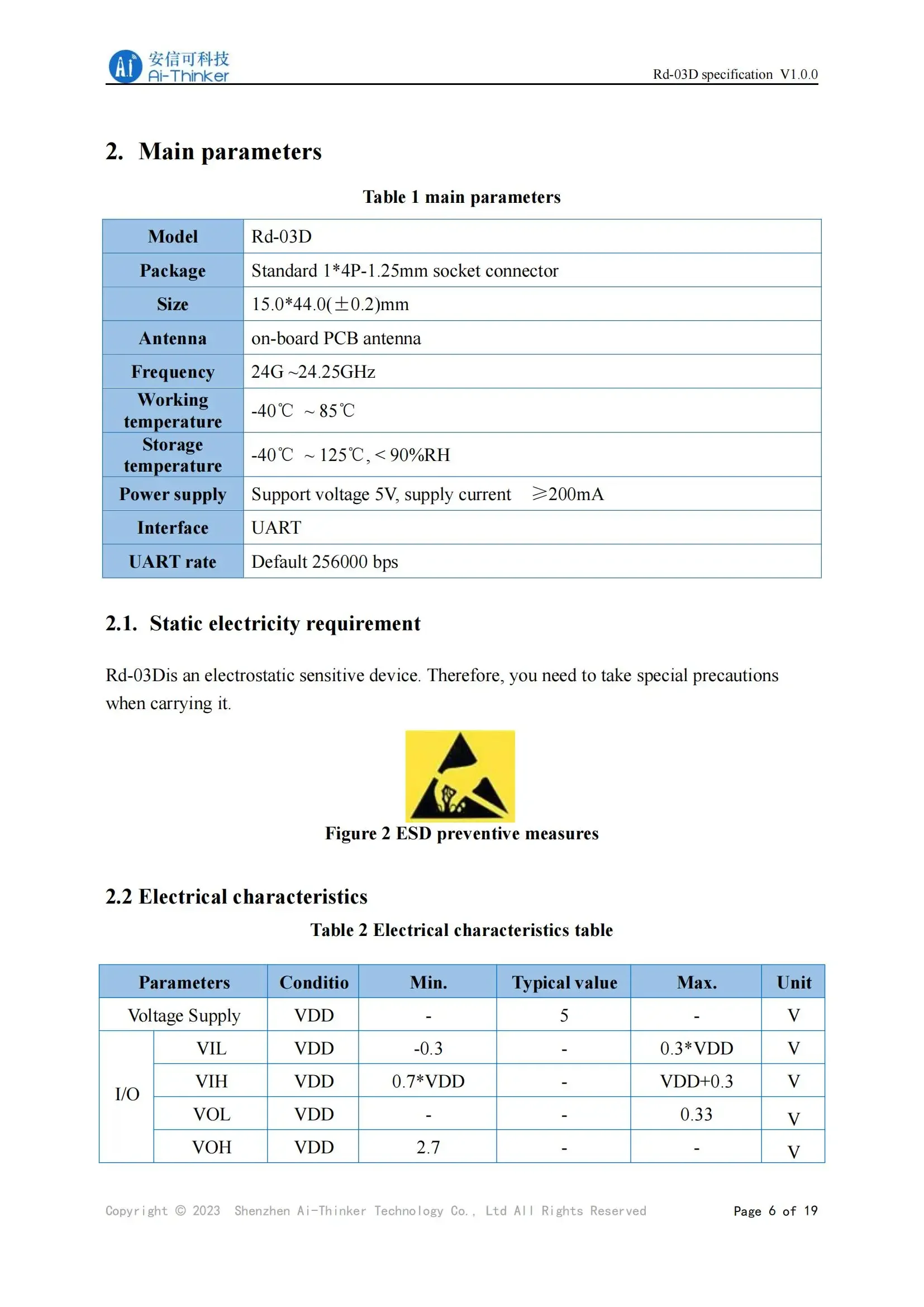

Model |
Rd-03D |

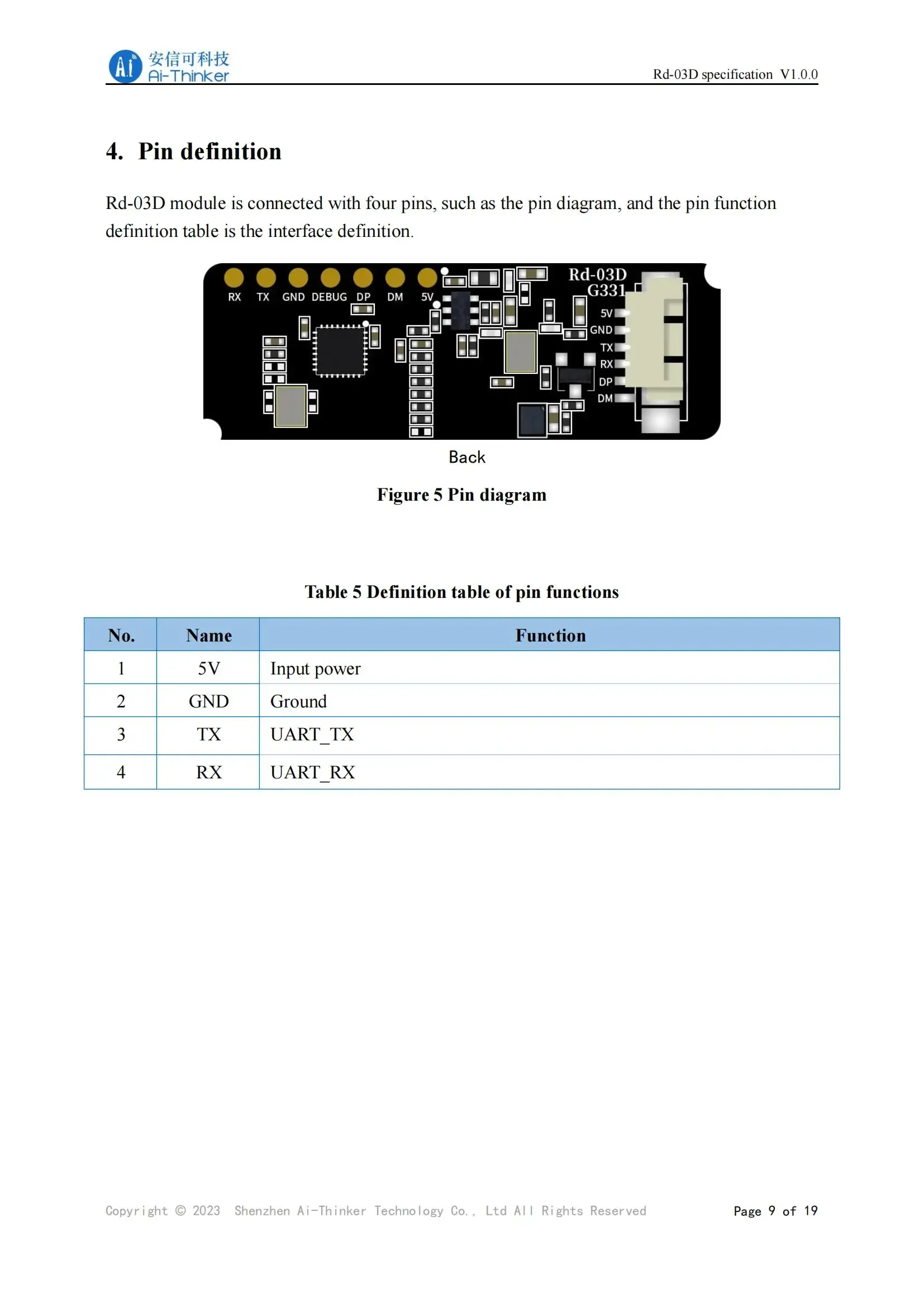

Package |

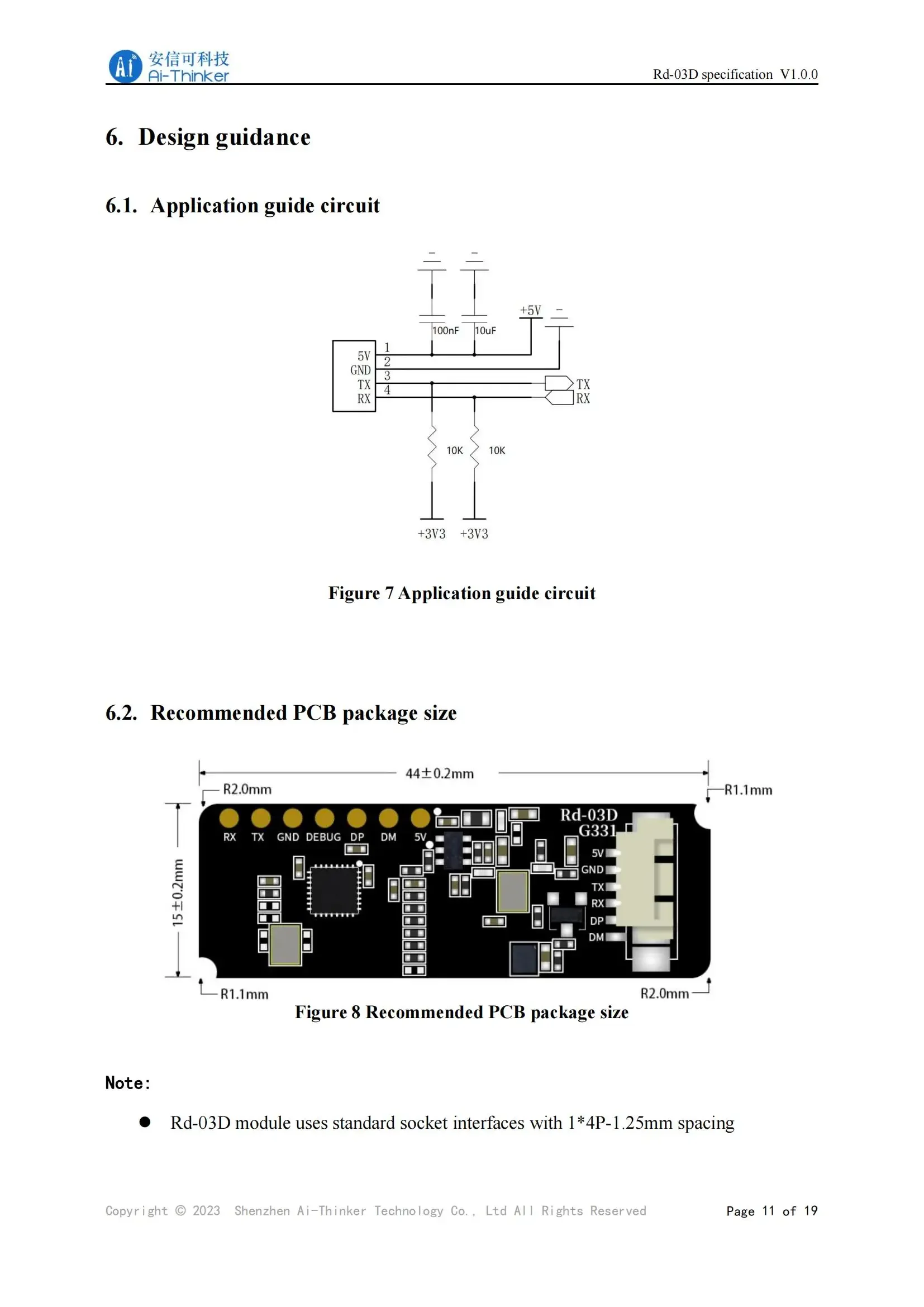

Standard 1*4P-1.25mm socket connector |

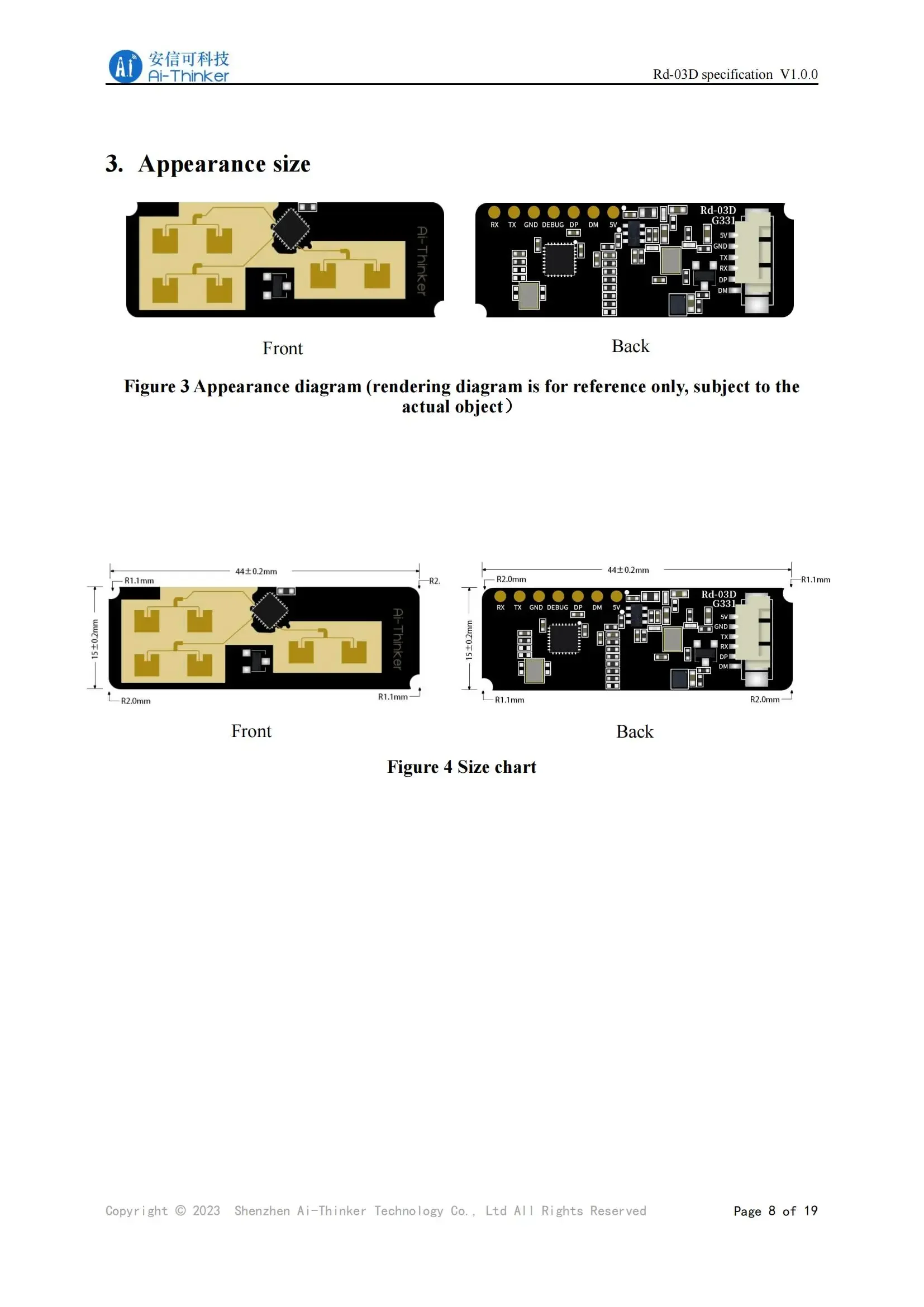

Size |

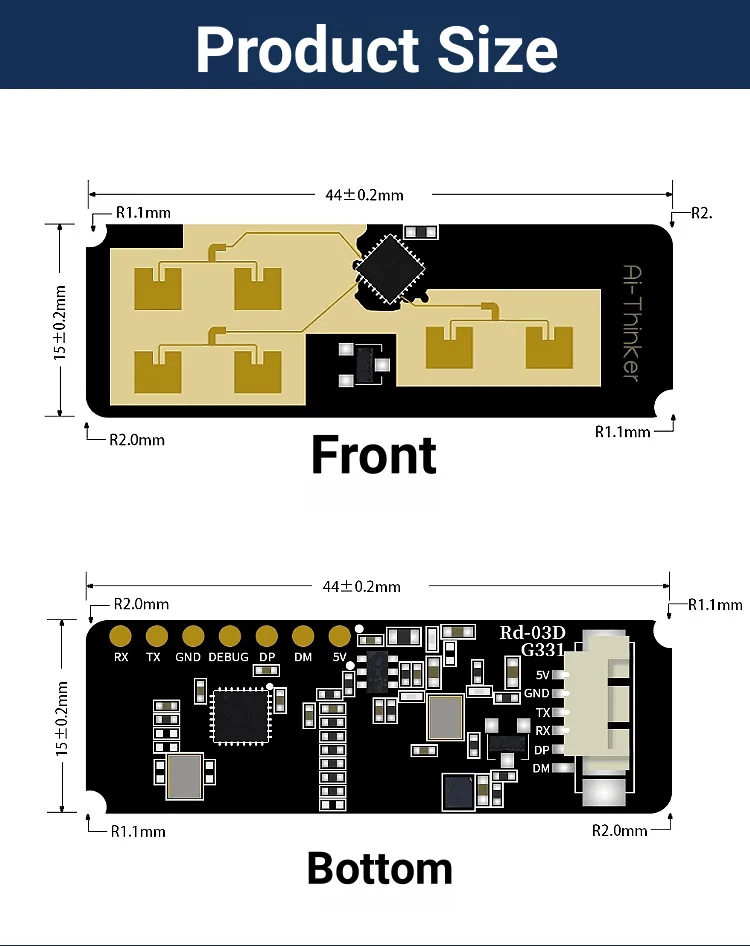

15.0*44.0(±0.2)mm |
Antenna |
on-board PCB antenna |
Frequency |
24G ~24.25GHz |

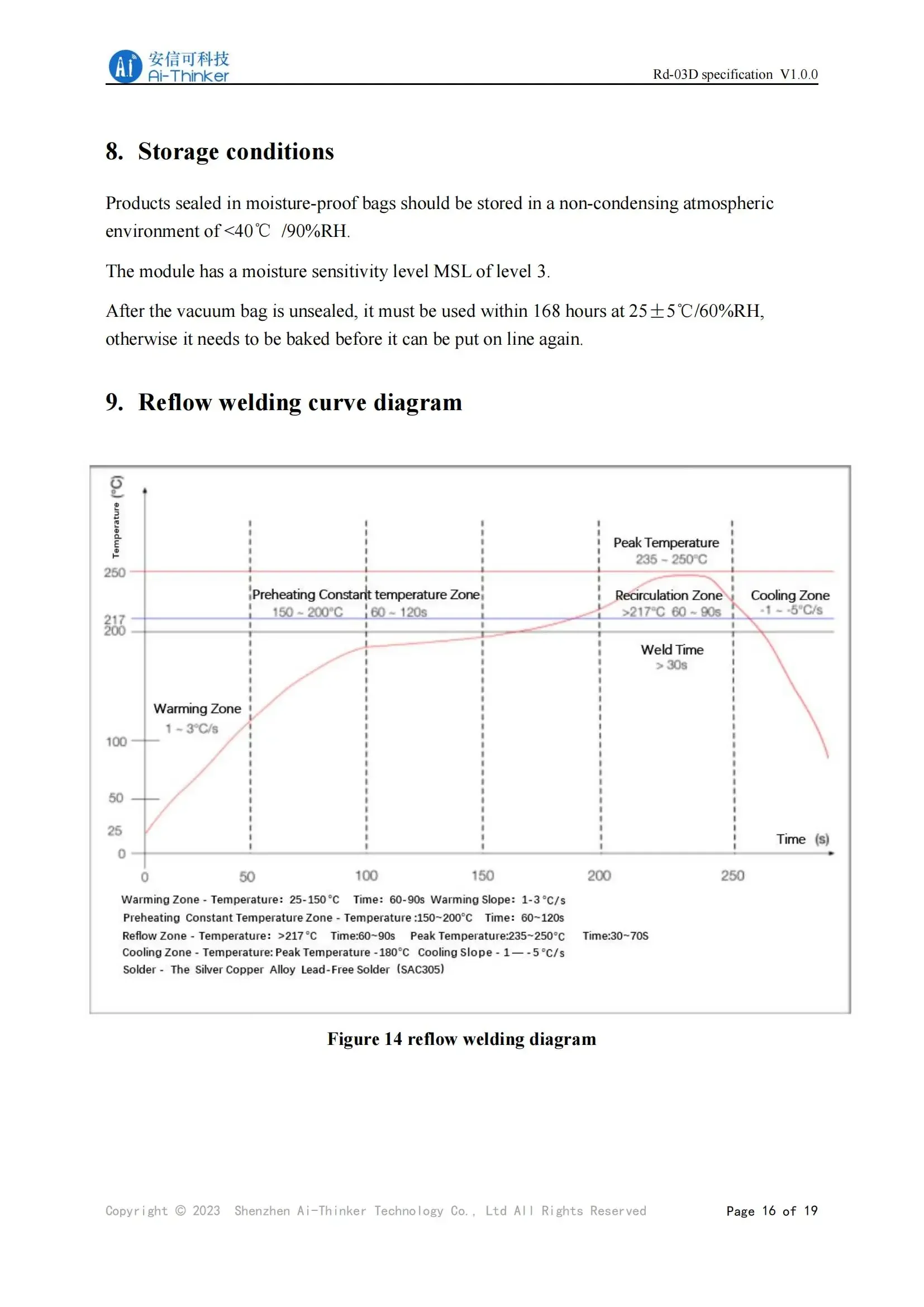

Working temperature |
-40℃ ~ 85℃ |
Storage temperature |
-40℃ ~ 125℃, < 90%RH |
Power supply |
Support voltage 5V, supply current ≥200mA |
Interface UART |
UART rate Default 256000 bps |

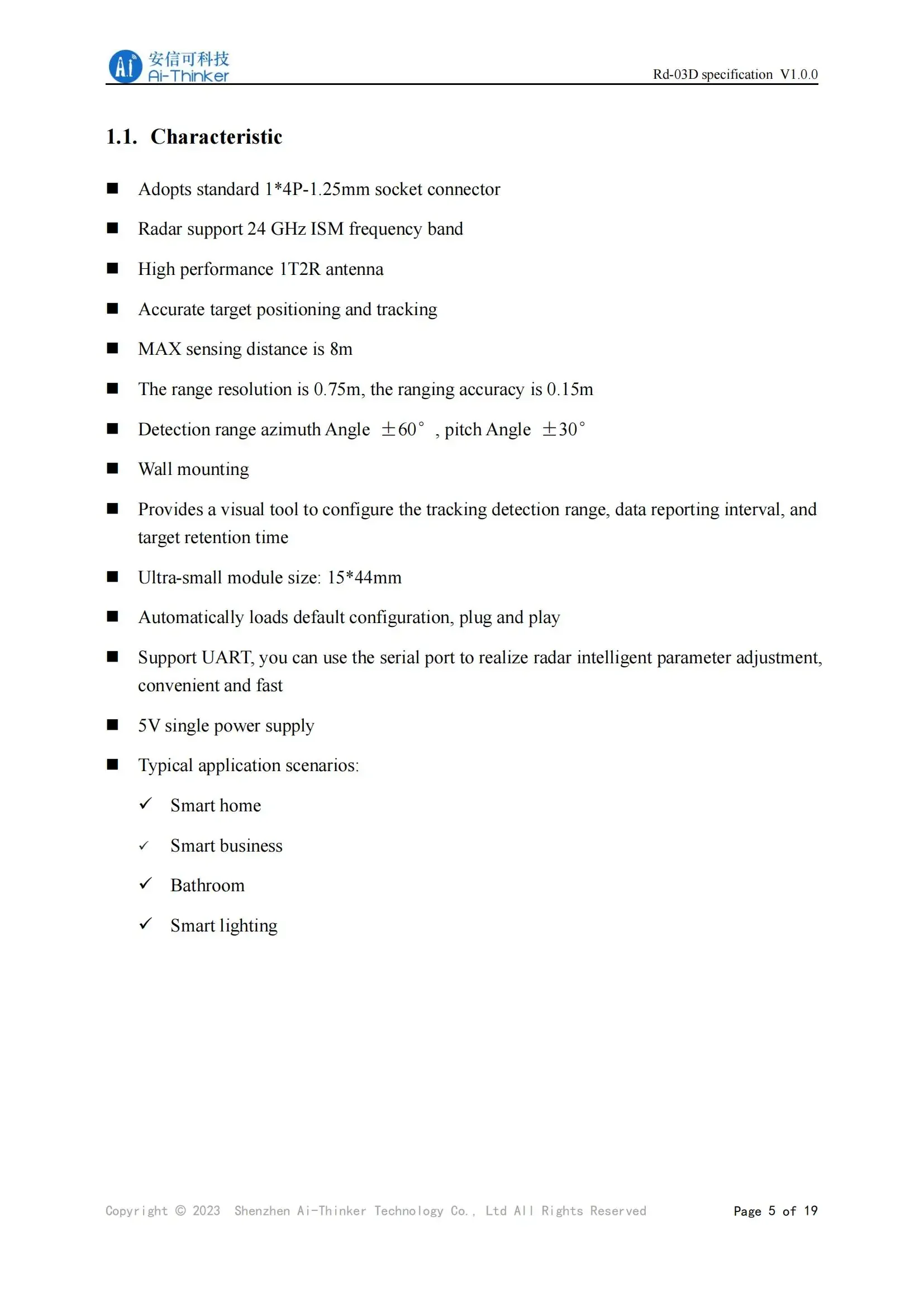

Characteristic: |
1. Adopts standard 1*4P-1.25mm socket connector |
2. Radar supports 24 GHz ISM frequency band |

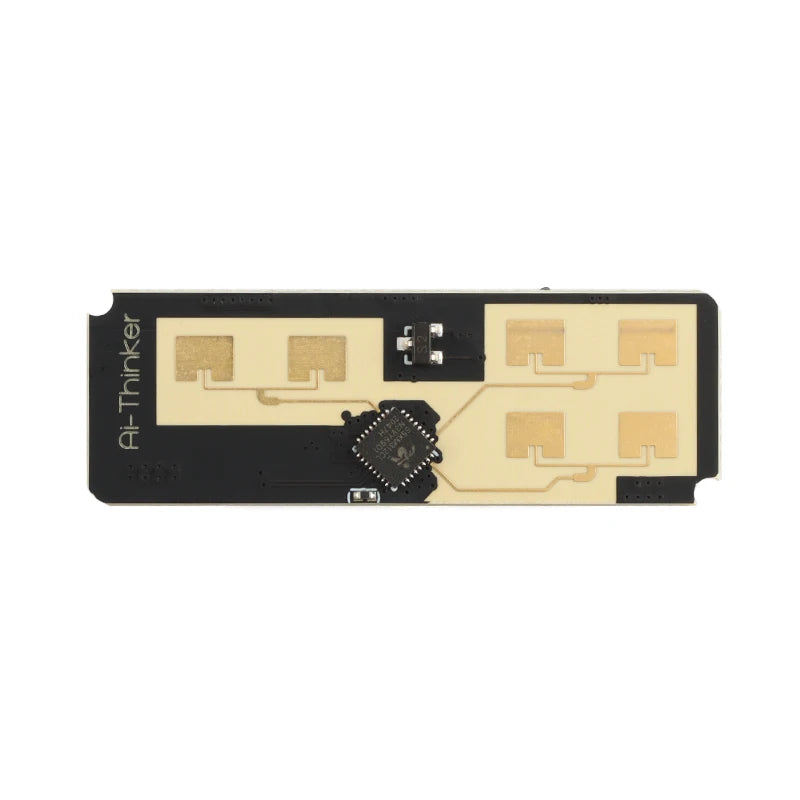

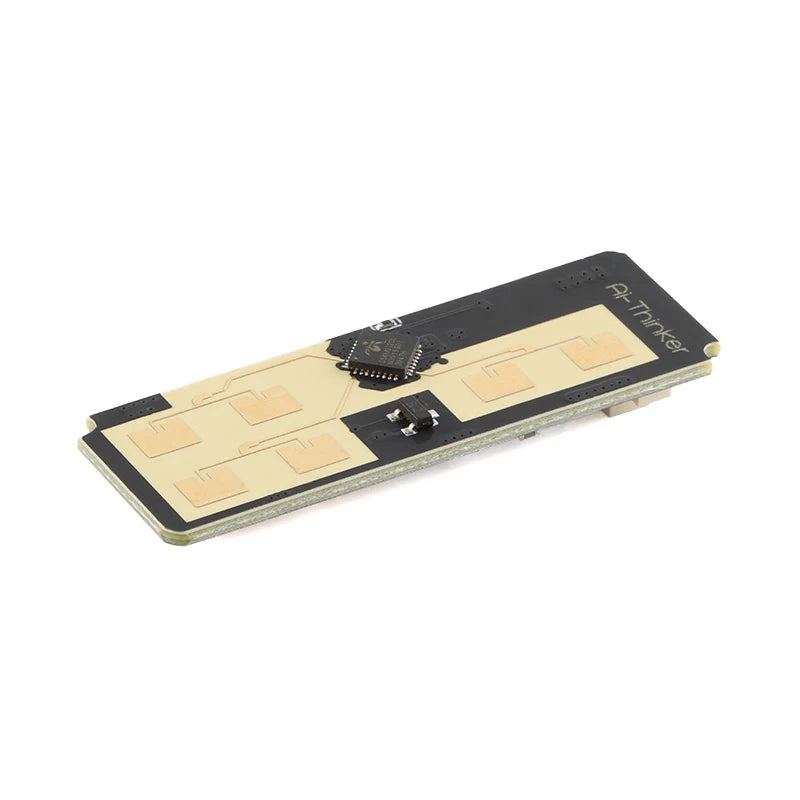

3. High performance 1T2R antenna |
4. Accurate target positioning and tracking |

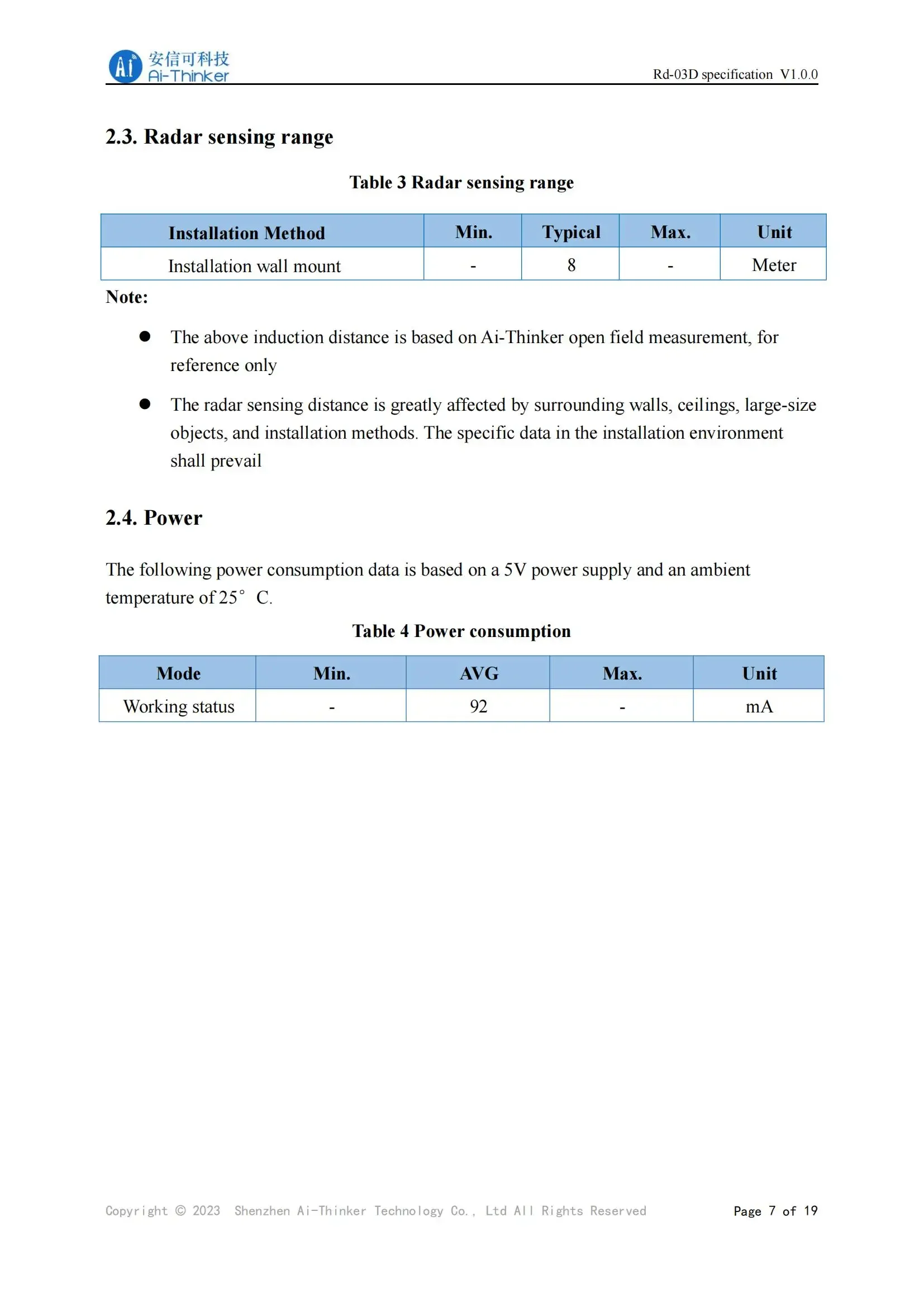

5. MAX sensing distance is 8m |
6. The range resolution is 0.75m, the ranging accuracy is 0.15m |

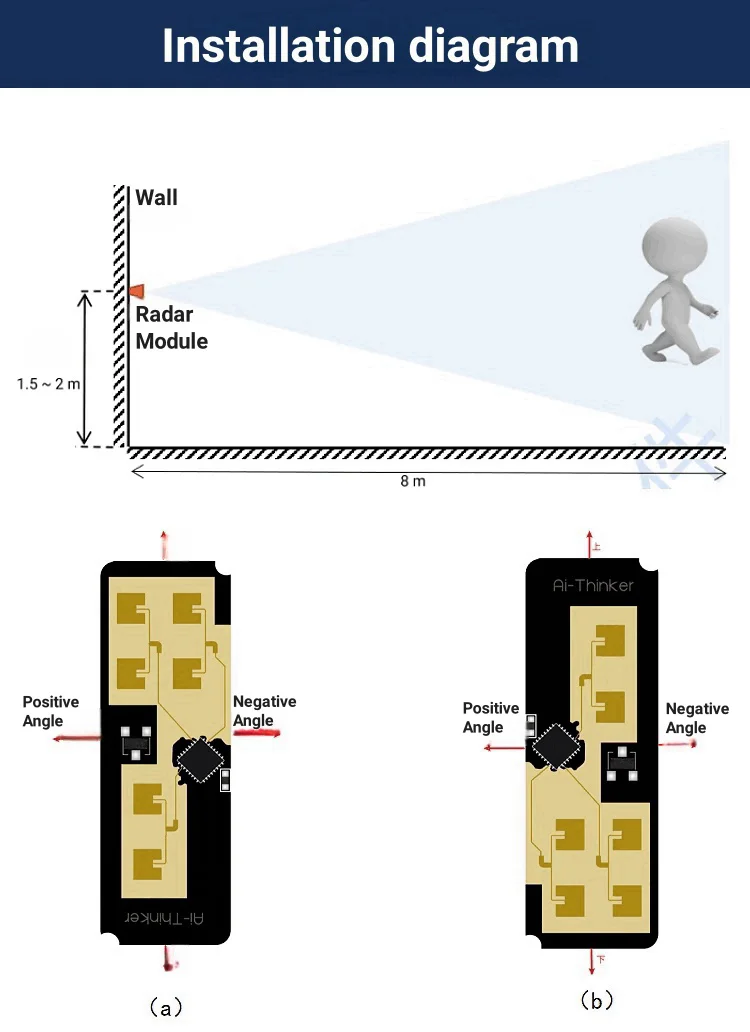

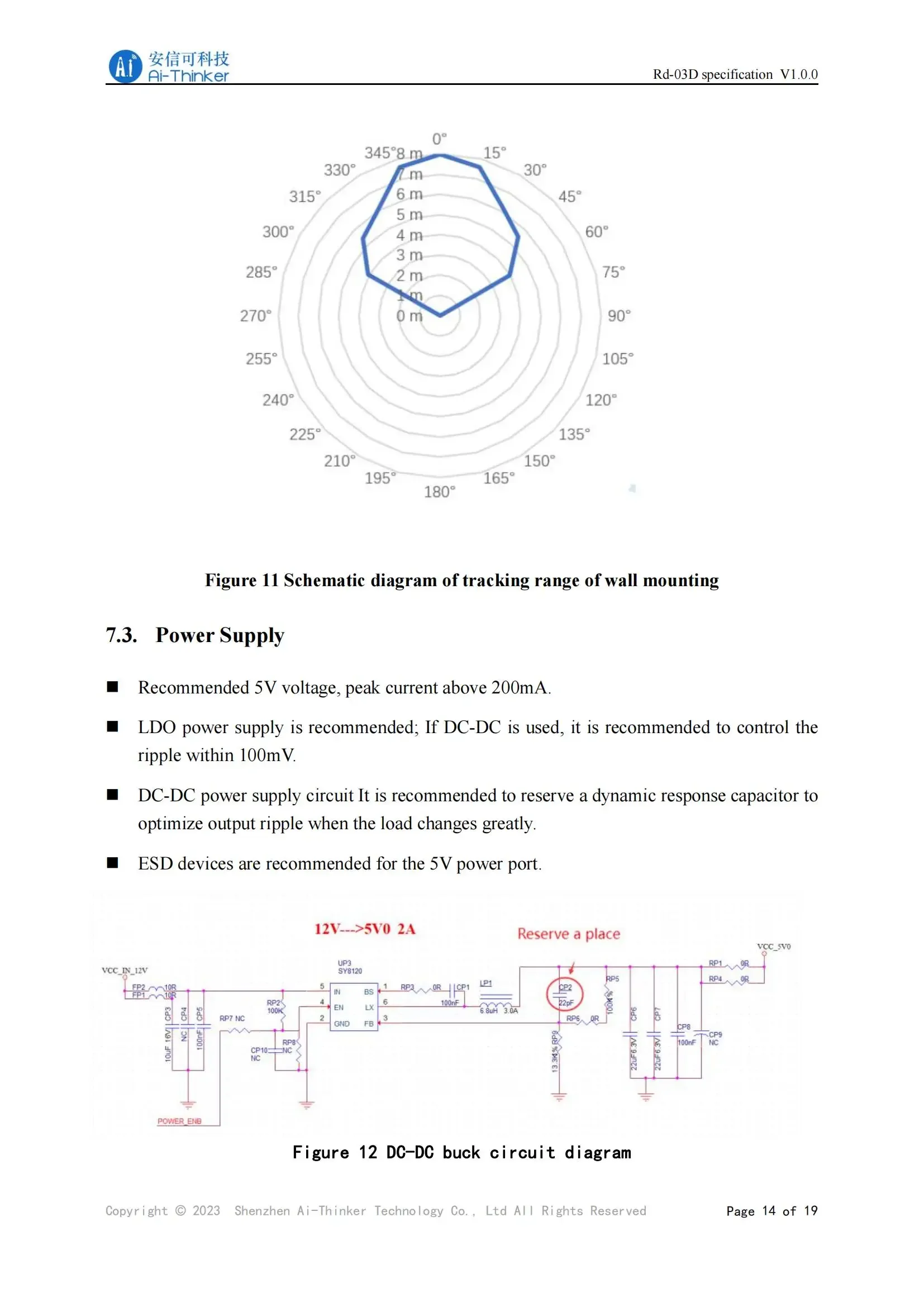

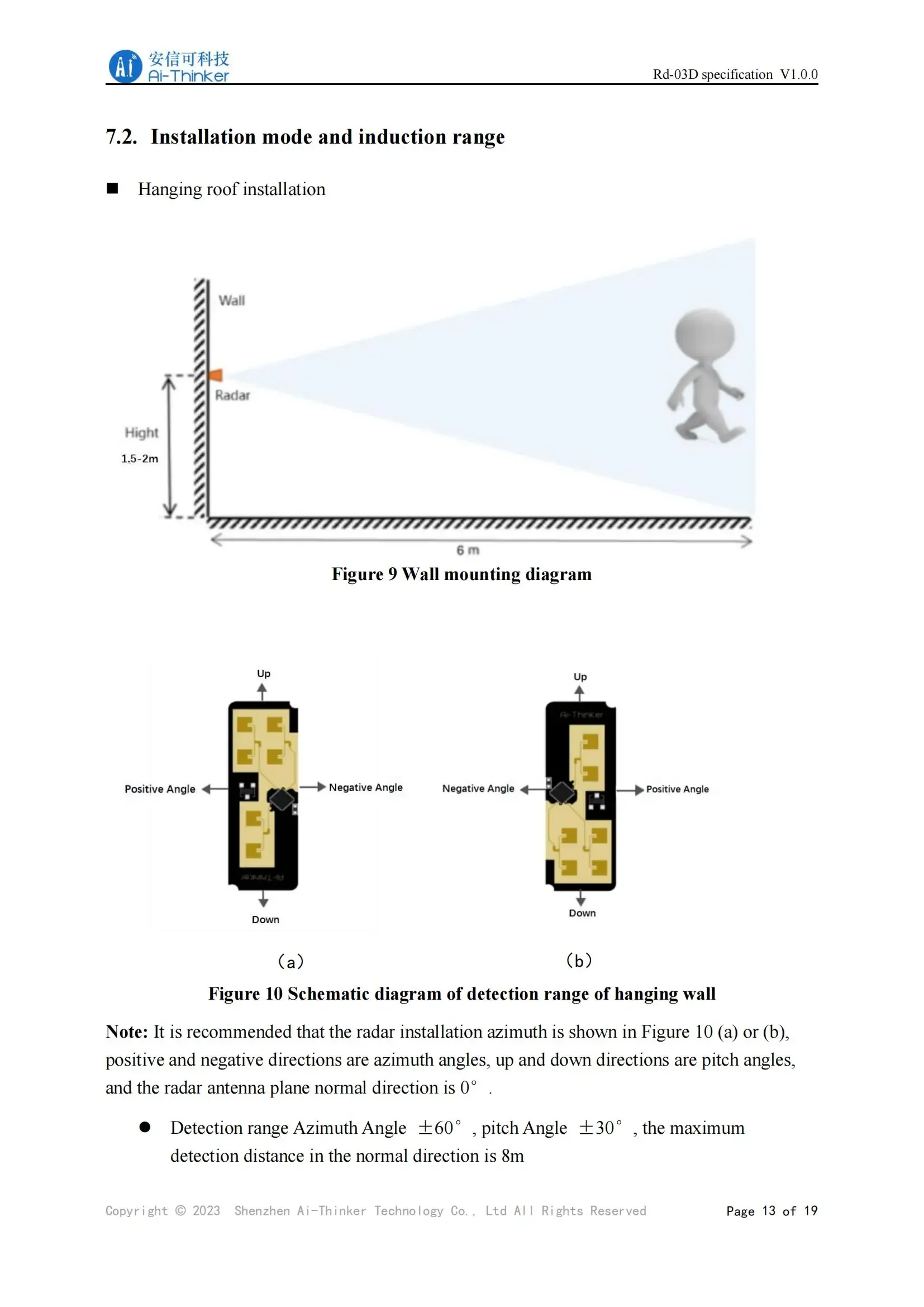

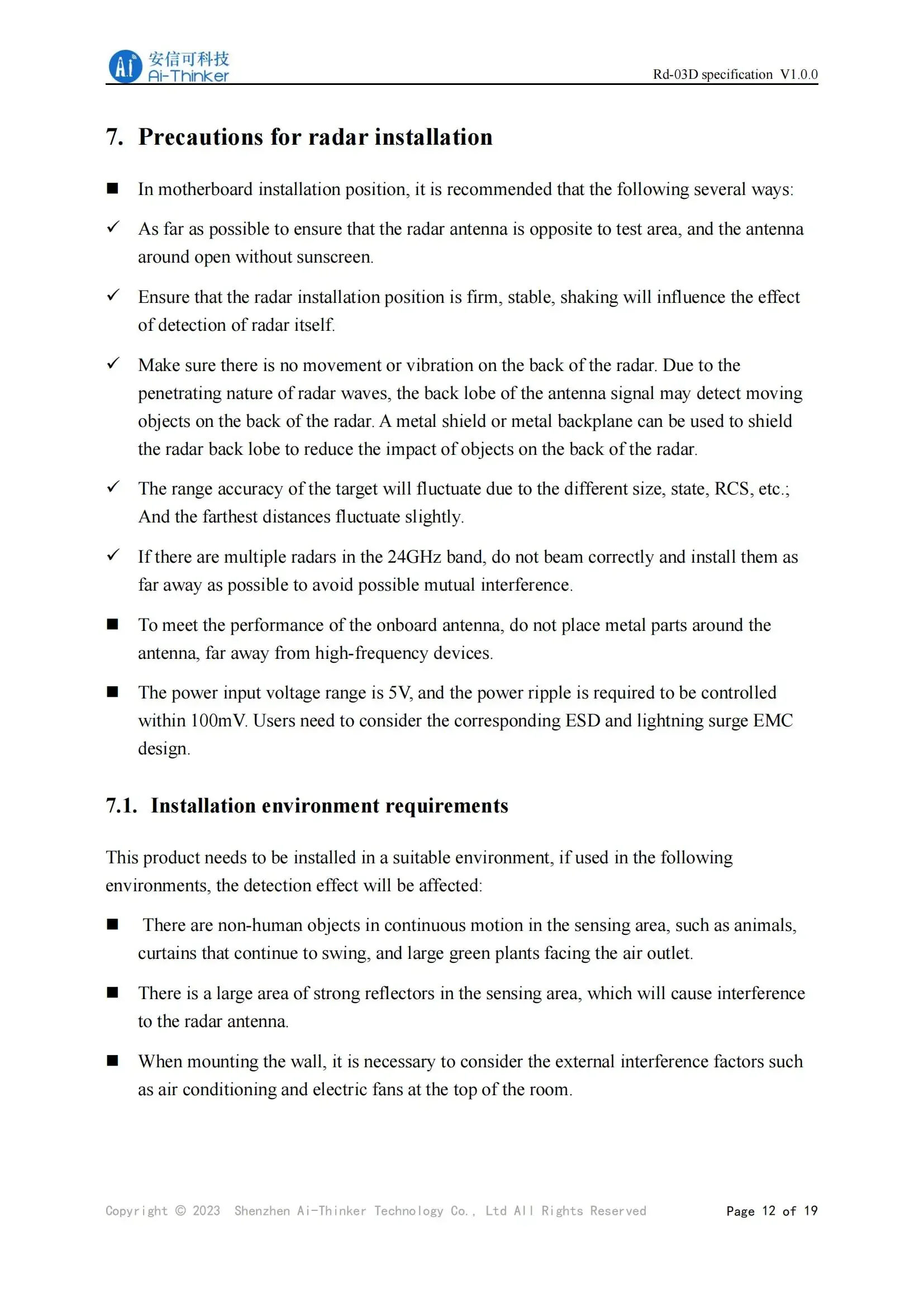

7. Detection range azimuth Angle ±60°, pitch Angle ±30° Wall mounting |
8. Provides a visual tool to configure the tracking detection range, data reporting interval, and target retention time |
9. Ultra-small module size: 15*44mm |
10. Automatically loads default configuration, plug and play |

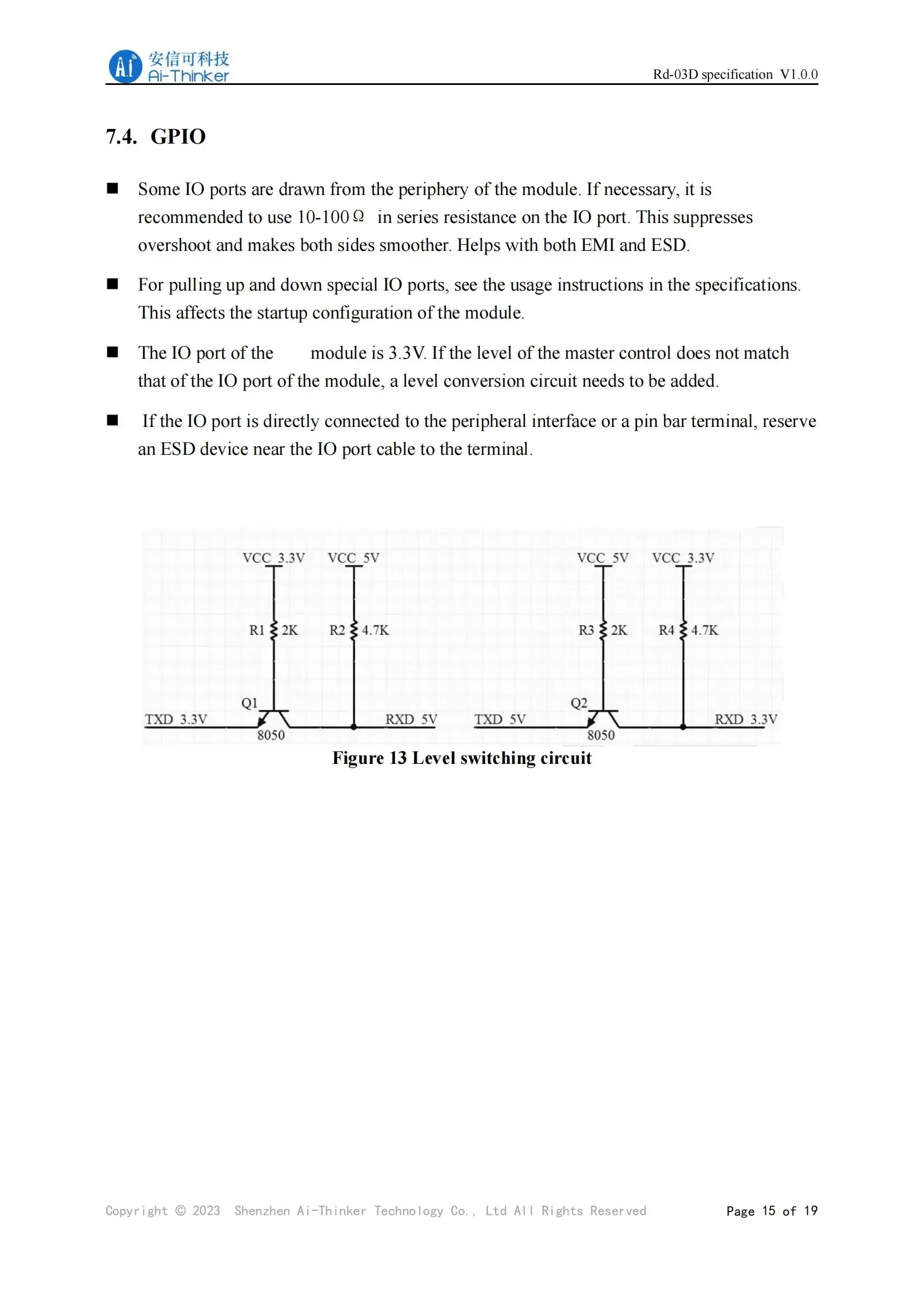

11. Support UART, you can use the serial port to realize radar intelligent parameter adjustment, convenient and fast |
12. 5V single power supply |
13. Typical application scenarios: |
1*Smart home |
2*Smart business |
3*Bathroom |
4*Smart lighting |
