8 Hub Central Heating Controller for Water Heating System 8 Sub-Chamber Concentrator for Gas Boiler Wireless Thermostat Actuator

Please click on the image below to view a detailed introduction to the Wireless Thermostat

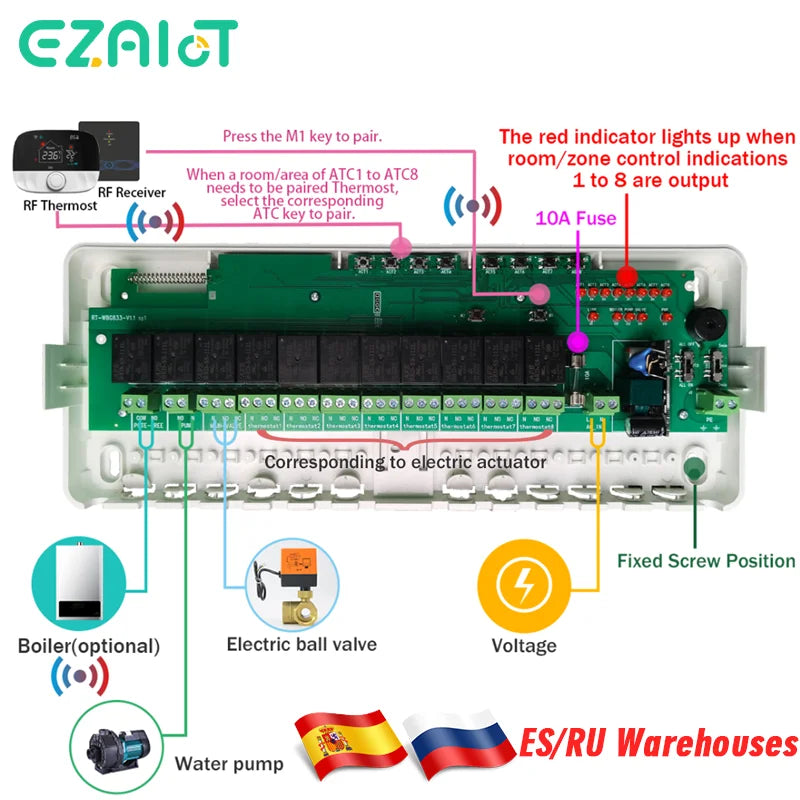

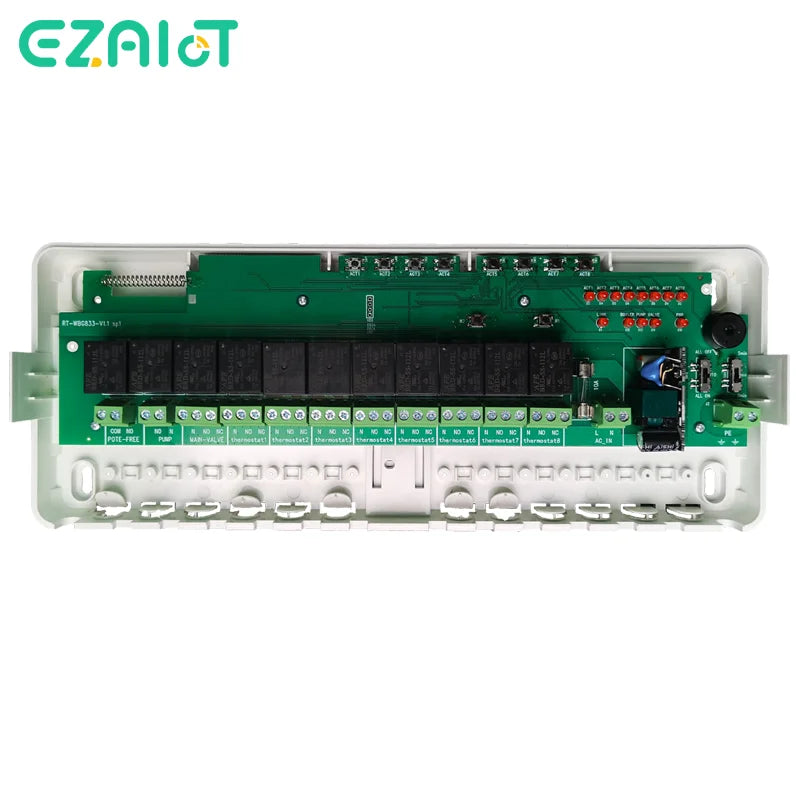

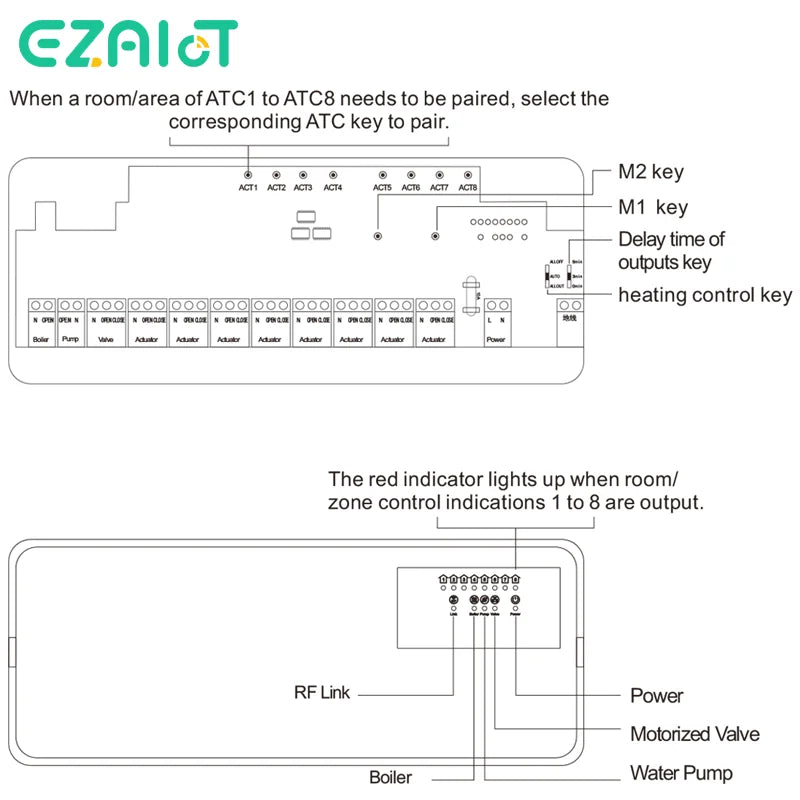

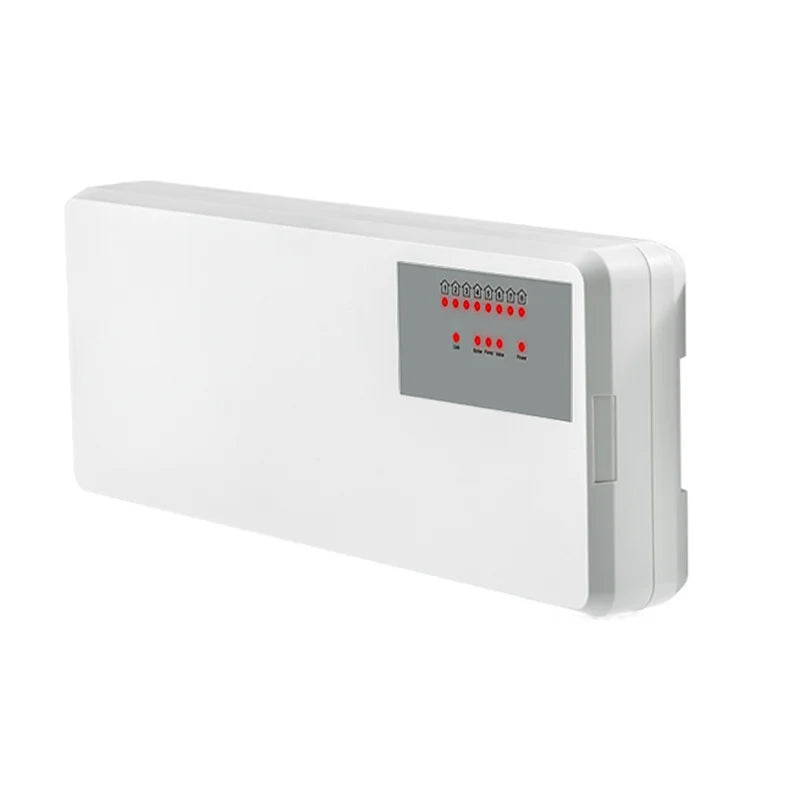

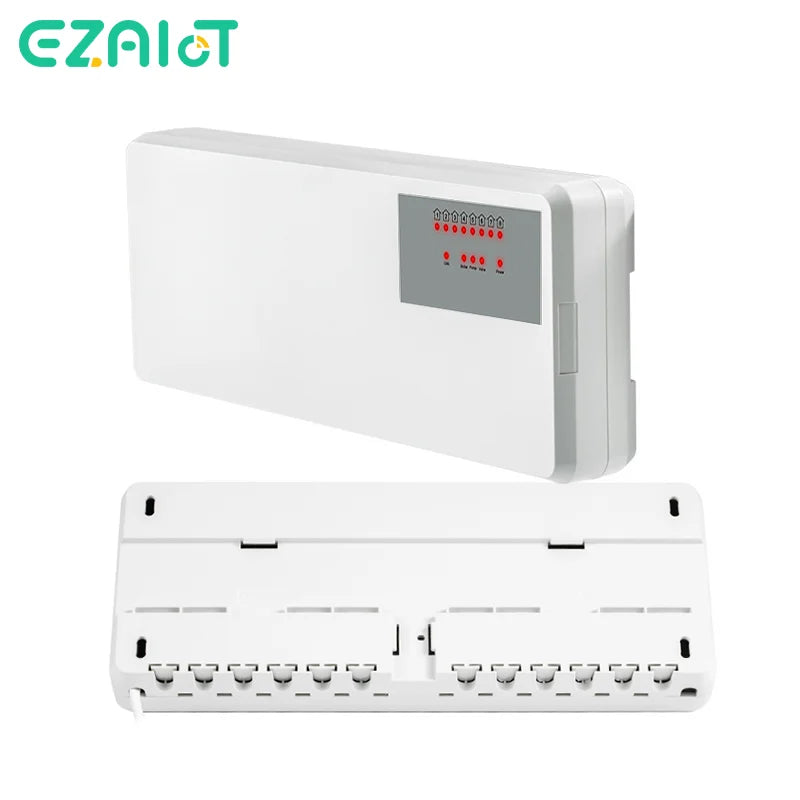

WBG833 8-Hub Controller

【Function】

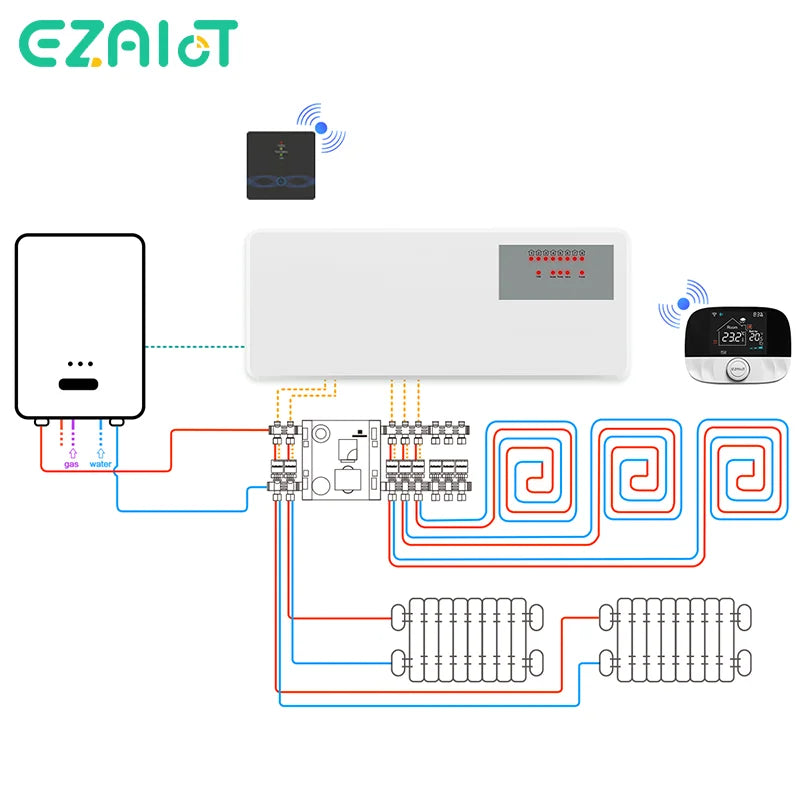

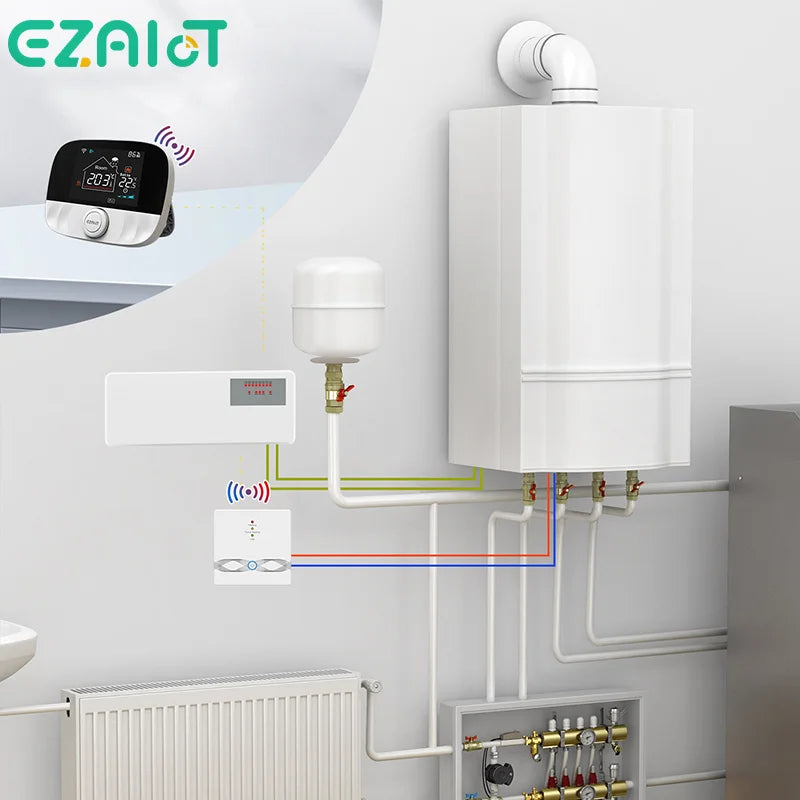

WBG833 wireless hub controller is suitable for controlling gas boilers, circulating pumps or electric actuators, i.e. multiple rooms independently using thermostats to control indoor temperature, with each thermostat controlling the respective branch electric heat actuators on the manifold separately to achieve independent temperature control for comfortable temperature control and reduced energy consumption.

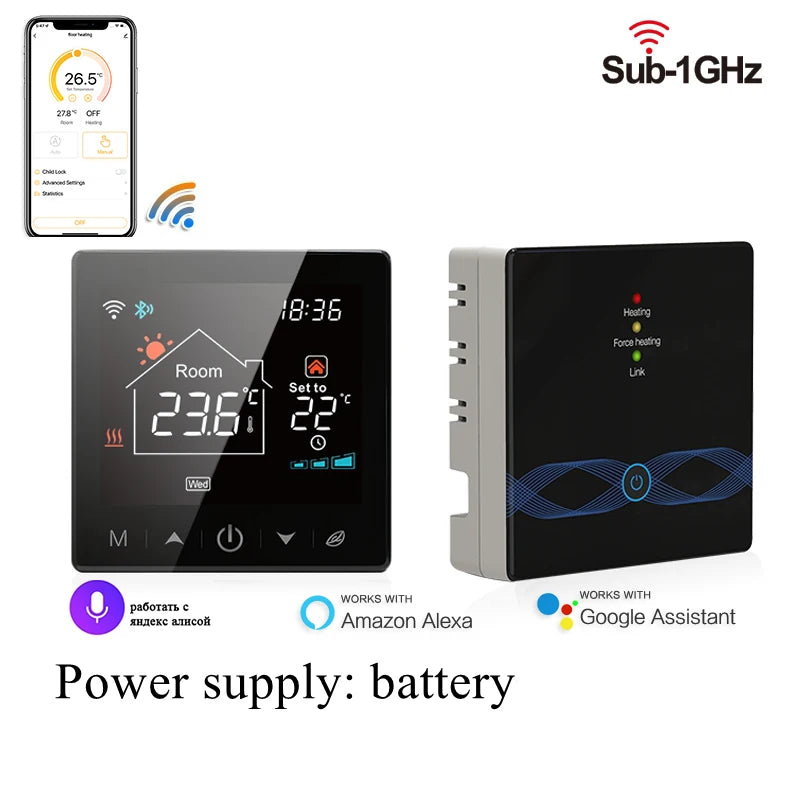

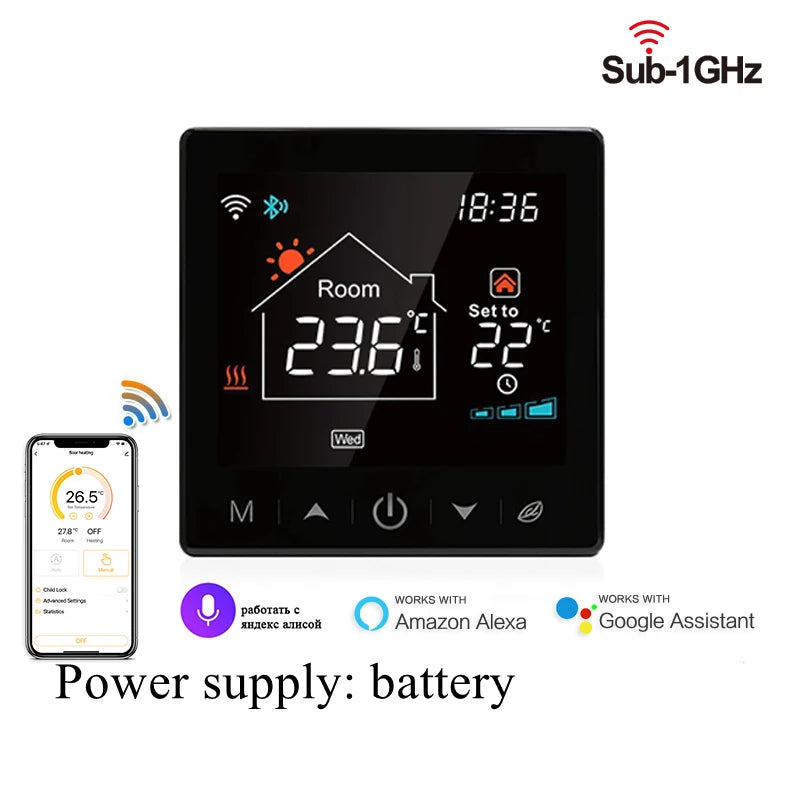

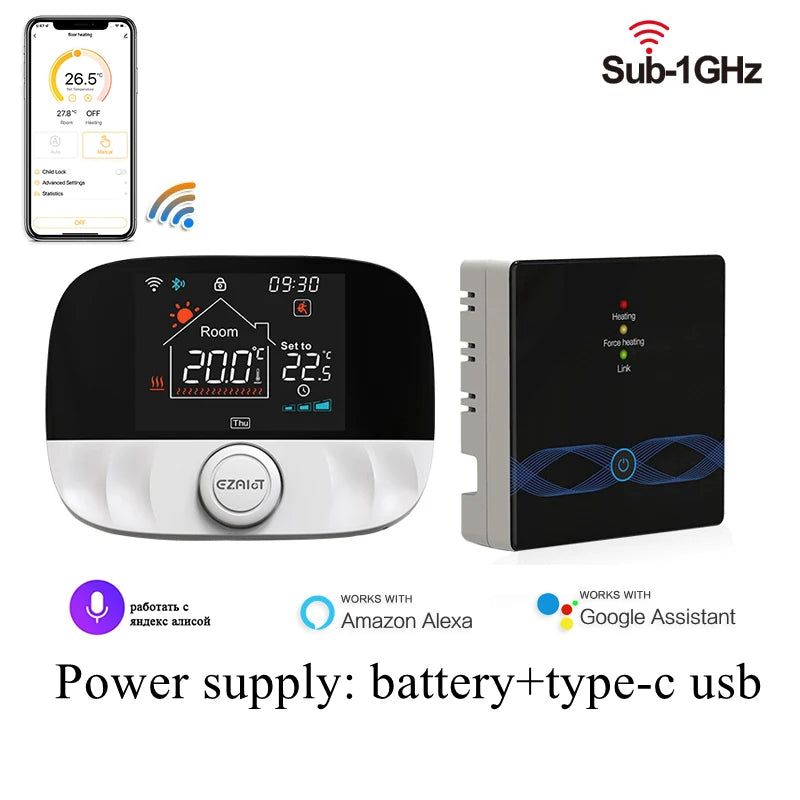

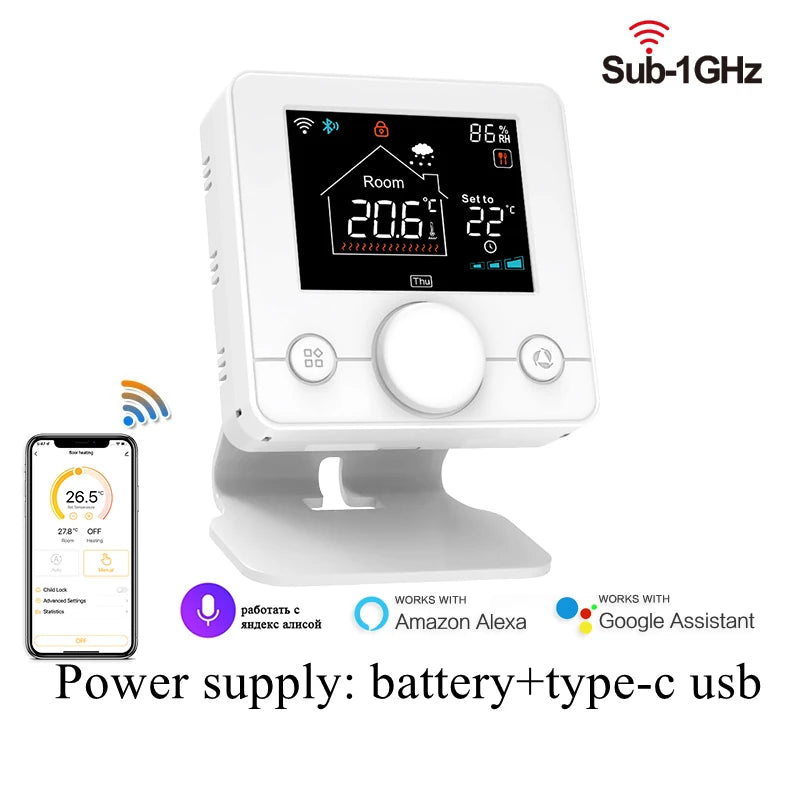

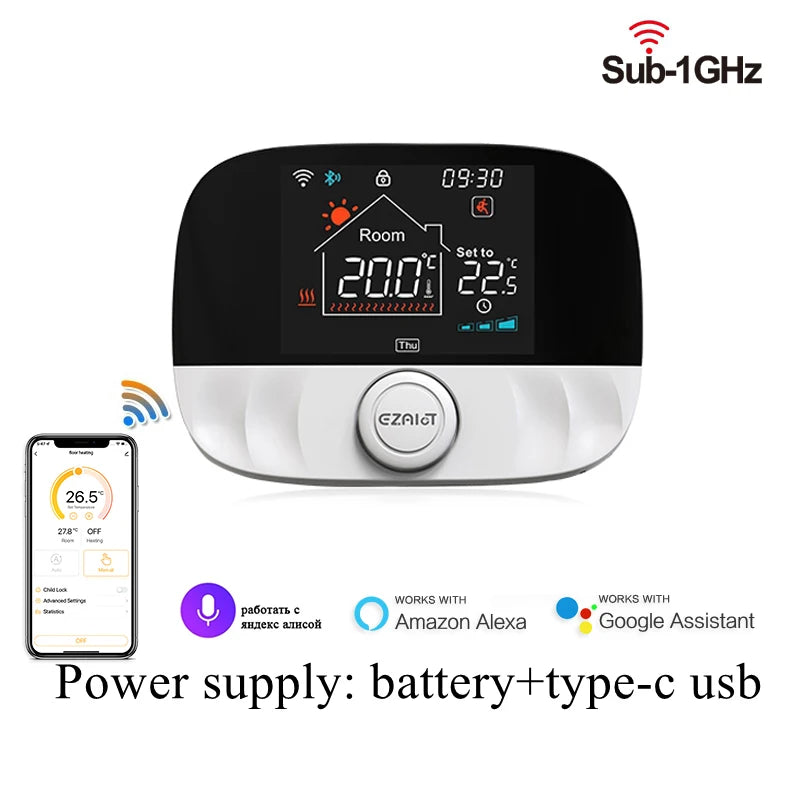

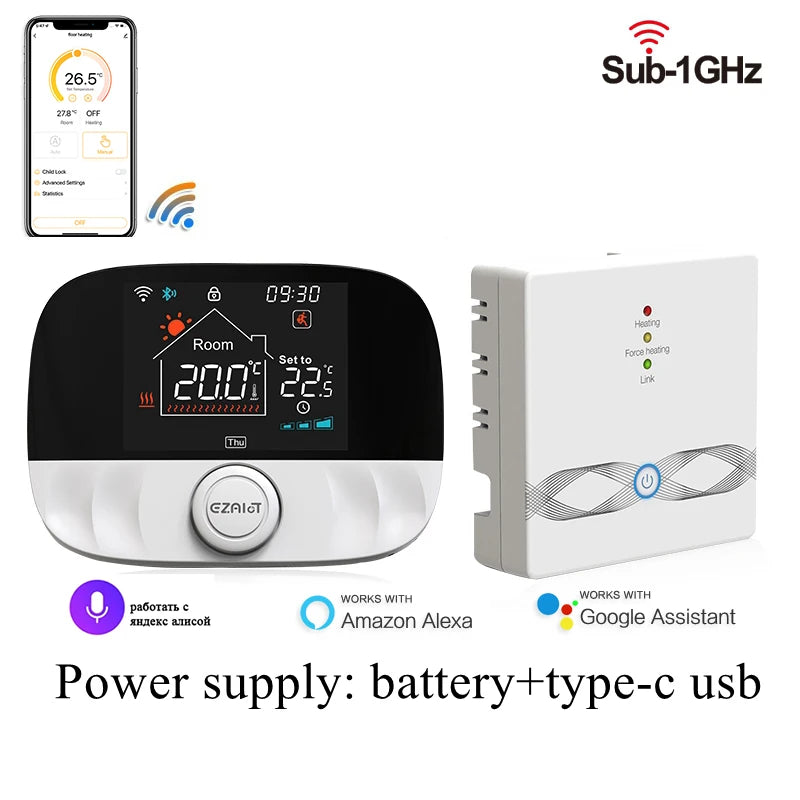

T9W wireless wall hung gas boiler thermostat is used to control gas boiler.

*Note - Up to 8pcs T9W can be connected to one WBG833

【Technical Parameters】

Power supply: AC100~240V; 50/60Hz

Maximum current: 10A

Storage temperature: -20~70℃

Ambient humidity: -20~60℃

Product size: length 280mm x width 110mm x thickness 40mm

Shell material: flame retardant PC + ABS

Max control distance: about 200m

Actuator interface: 8 normally open/normally closed electric heat actuator

Thermostat interface: 8 wireless thermostats

Description:

Electric heat actuator is mainly used in floor heating heating system to control the closing and opening of pipes. Specifically applied to the electric drive part of the electric heat actuator of the manifold branch valve, small valve, dynamic balance valve. Working operation without noise, nut connection installation method, simple, quick installation and easy disassembly.

Why choose our electric actuator?

①Compare with the 3mm on the market, our actuator stroke 4mm, spring internal expansion length can completely cover the valve spool stroke

②Vibration damping motor, working operation 0 noise

③Precise internal structure, smooth action, avoiding water hammer phenomenon when the valve is opened and closed

④Flame retardant shell, high temperature resistance and anti-aging, long service life

Specification：

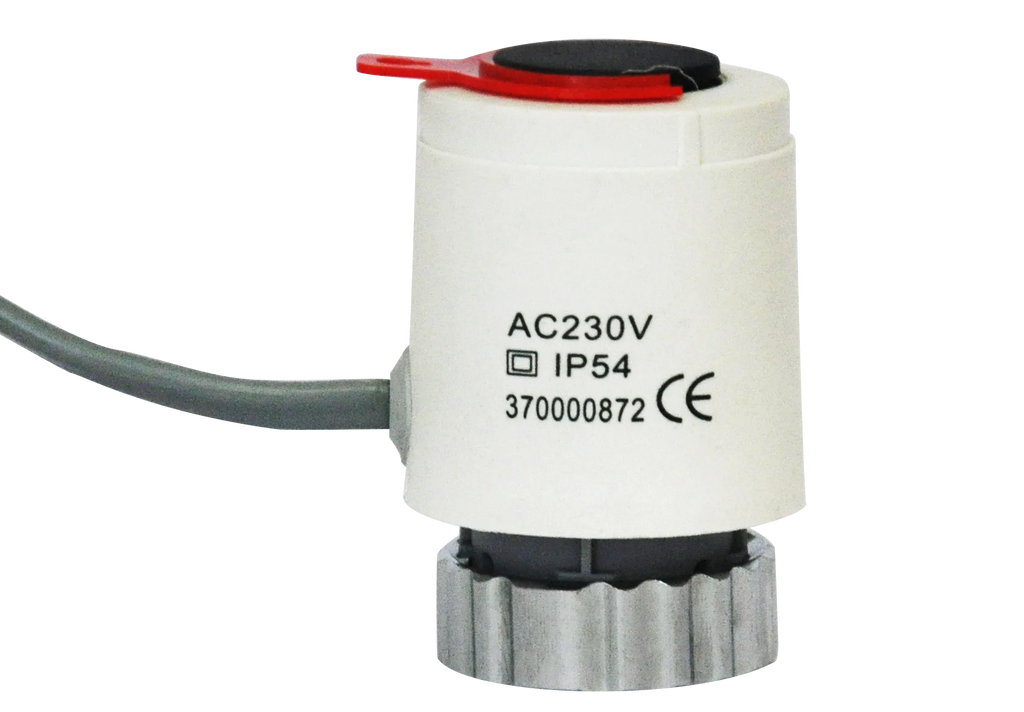

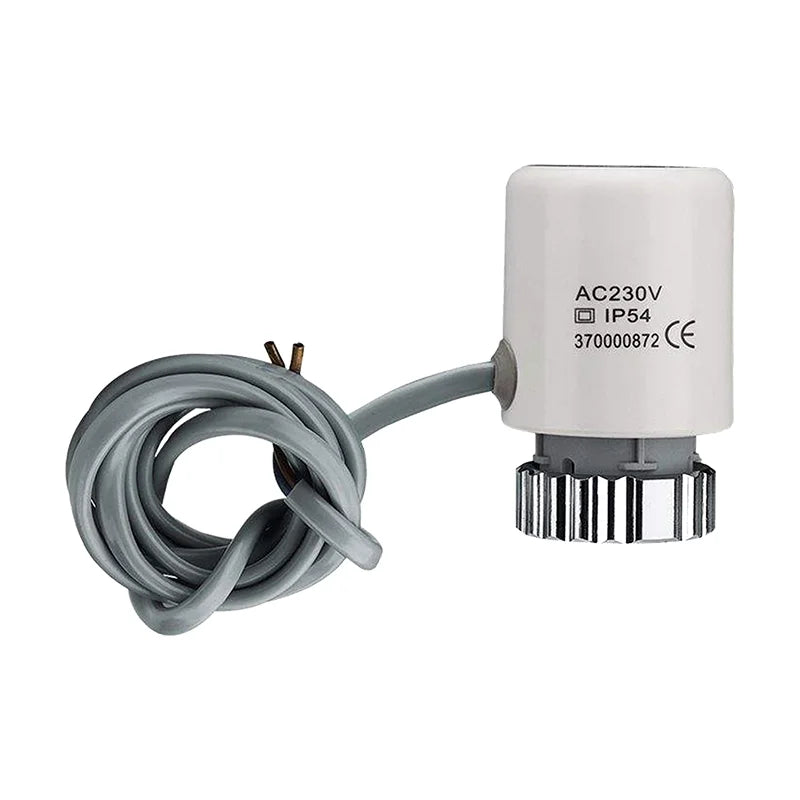

Thermal Actuator

Chinese Core, Vernet Core

Voltage: 230V

Status: NC，NO

Power Consumption: 2VA

Thrust: 110N

Stroke: 4mm

Running time: 3-5min

Connection size: M30*1.5mm

Ambient temperature: From -5℃ to 60℃

Cable Length: 1000mm

The difference between NC and NO:

Most customers choose the "normally closed" type.

Normally closed: the manifold valve is normally closed, the valve is opened after the power is applied, mostly used for household wall-hung boilers sub-heating

Normally open type: manifold valve is normally open, the valve is closed after the power is applied, mostly used for engineering central heating
