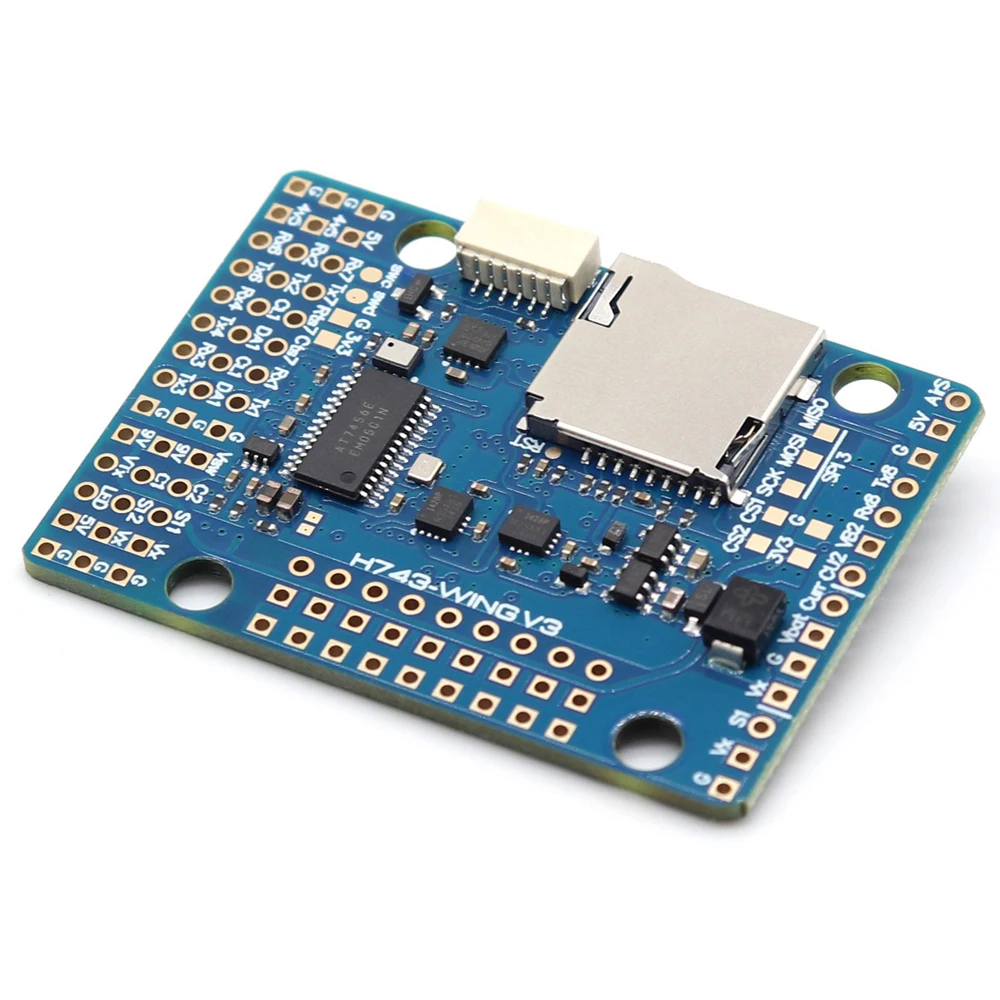

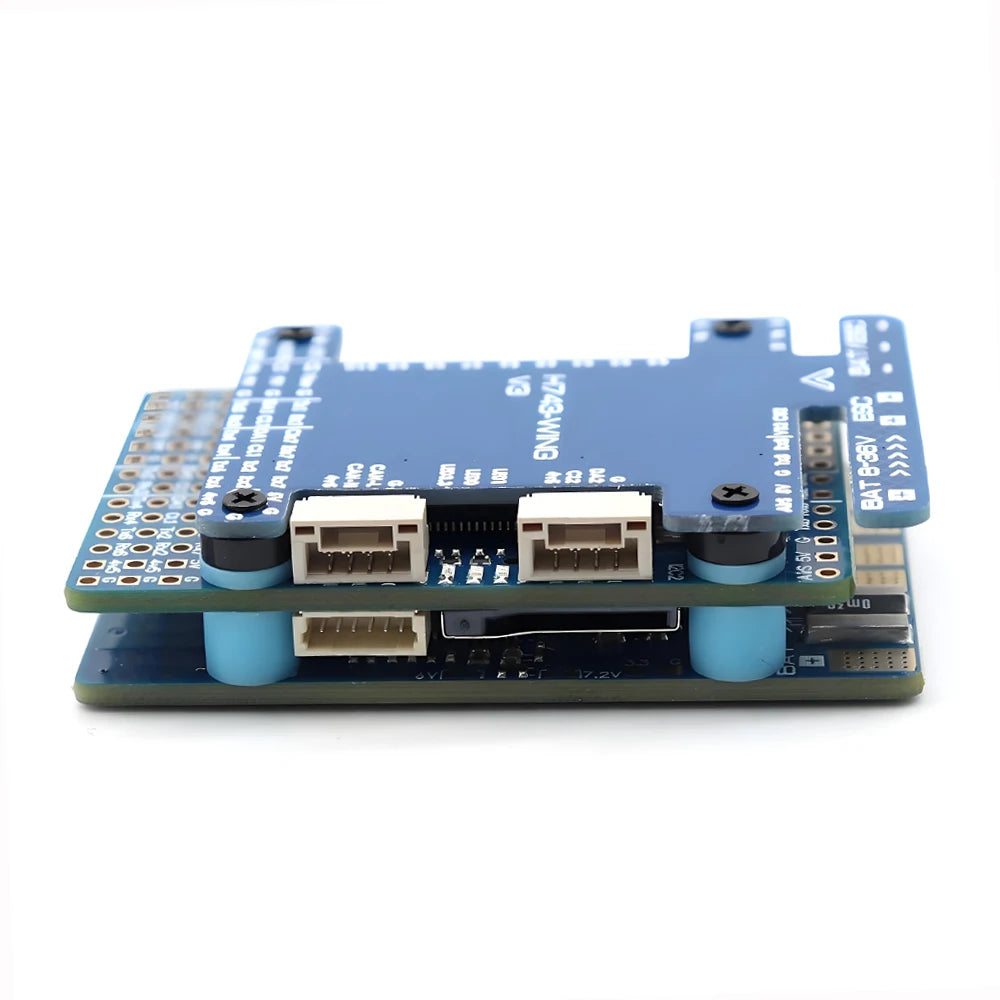

Newest H743-WING V3 Flight Controller 3-8S MATEKH743 ArduPilot For RC FPV Drone Accessories
Newest H743-WING V3 Flight Controller 3-8S MATEKH743 ArduPilot For RC FPV Drone Accessories
Couldn't load pickup availability
High Compatibility
The H743-WING V3 Flight Controller is compatible with GoPro drones, ensuring a seamless integration for aerial photography.
Reliable Origin
Originating from Mainland China, this product guarantees high-quality manufacturing and reliable performance.
Versatile Power Range
Supporting a wide range of power inputs from 3-8S, this flight controller caters to various RC FPV drone models.
Chemical-Free Material
Designed with high-concerned chemical-free materials, ensuring safety and durability for extended use.
Complete Package
The package includes all necessary accessories, making setup quick and hassle-free for users.

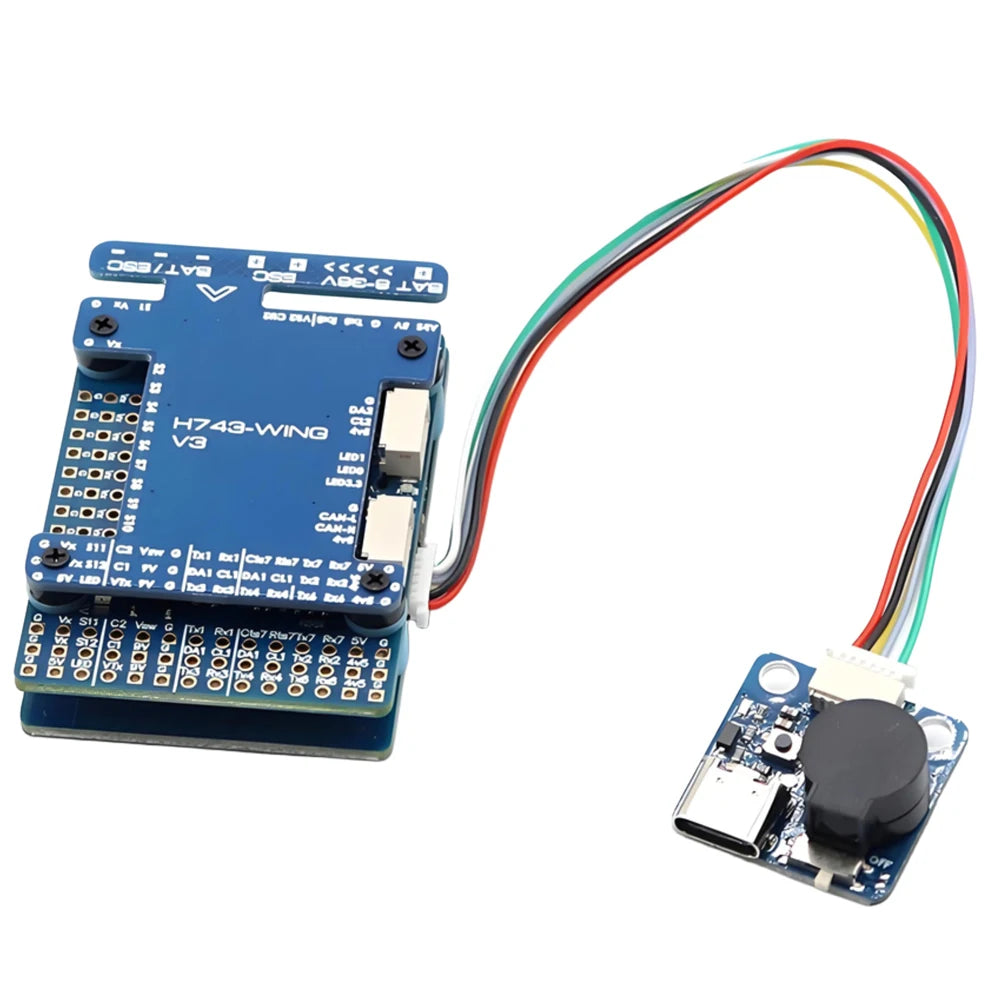

Newest H743-WING H743 WING V3 3-8S Flight Controller MATEKH743 ArduPilot
FC Specifications:

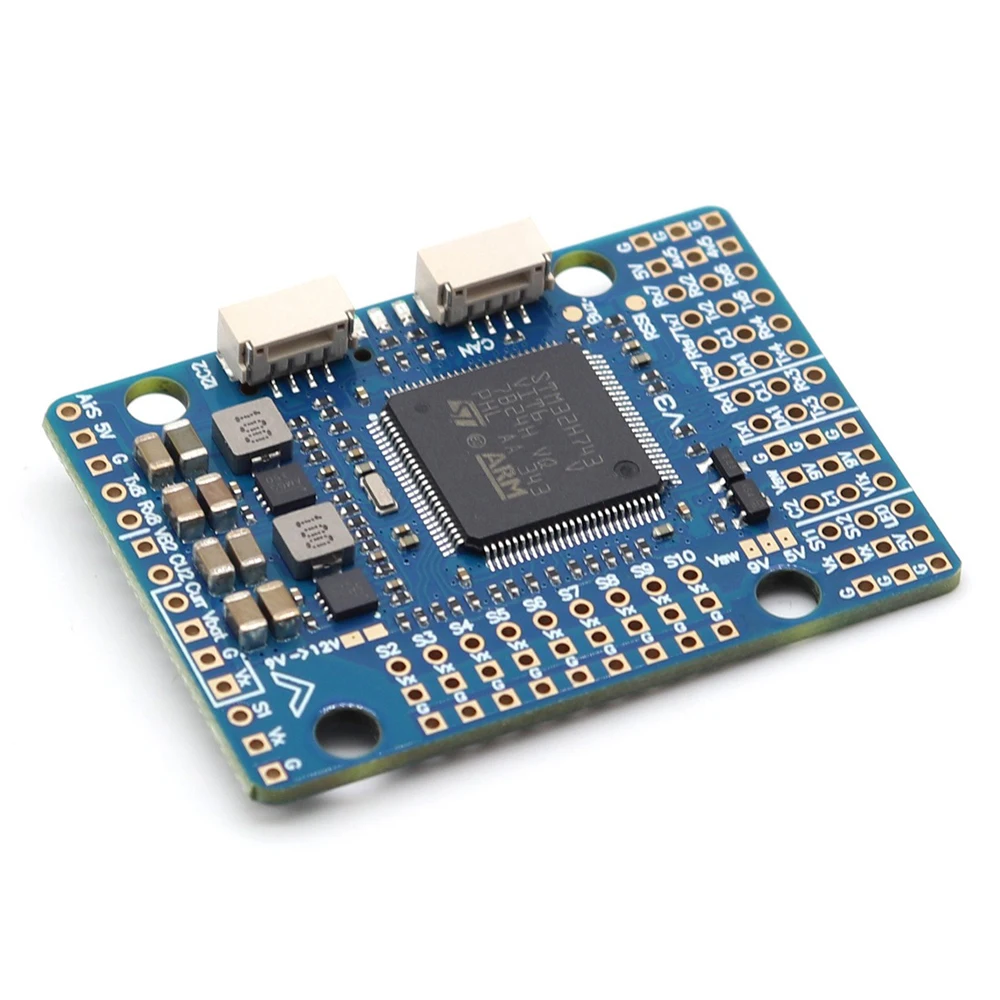

MCU: STM32H743VIT6,480MHz,1MB RAM, 2MB Flash;
ICM: 42688-P (SPI1) & ICM42688-P (SPI4);
Baro: Infineon DPS368 (12C2);
OSD: AT7456E (SPI2);
Blackbox: MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including "LED"pad)
2x 12C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
1x SPI3 breakout
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
5V/9V(12V) for Camera/VTX power switch
High-precision Current Sense (90A continuous, 220A peak)
Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
Static power 160mA@5V
FC Firmware
ArduPilot(ChiBiOS): MATEKH743
INAV:MATEKH743 PDB

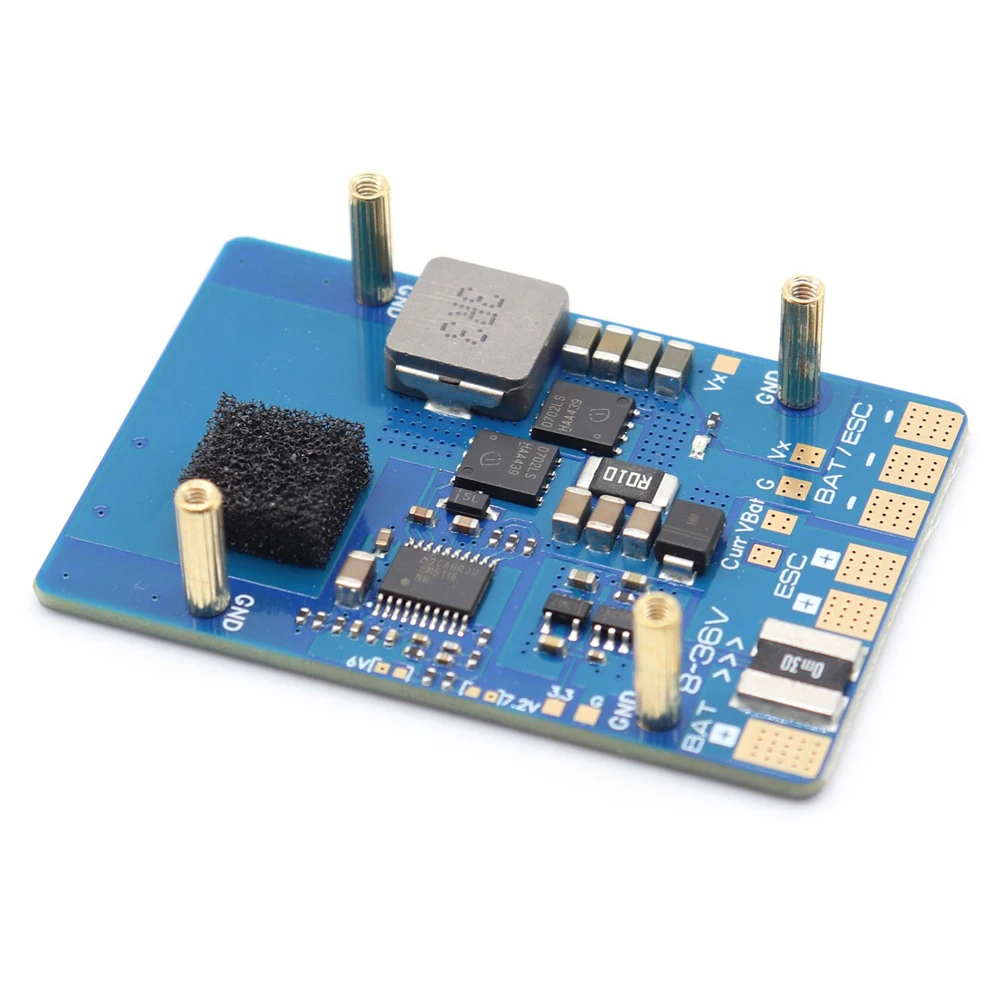

Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
2x ESC power pads
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
Sense resistor: 90A continuous, 220A peak.
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED _Strip, Buzzer, GPS module, AirSpeed
Output 5.15 +/-0.1V DC
Continuous current 2 Amps, 3A Peak
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current 2 Amps, 3A Peak
12V option with Jumper pad
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current 8 Amps, 10A Peak
BEC 3.3V output
Linear Regulator
Continuous current: 200mA

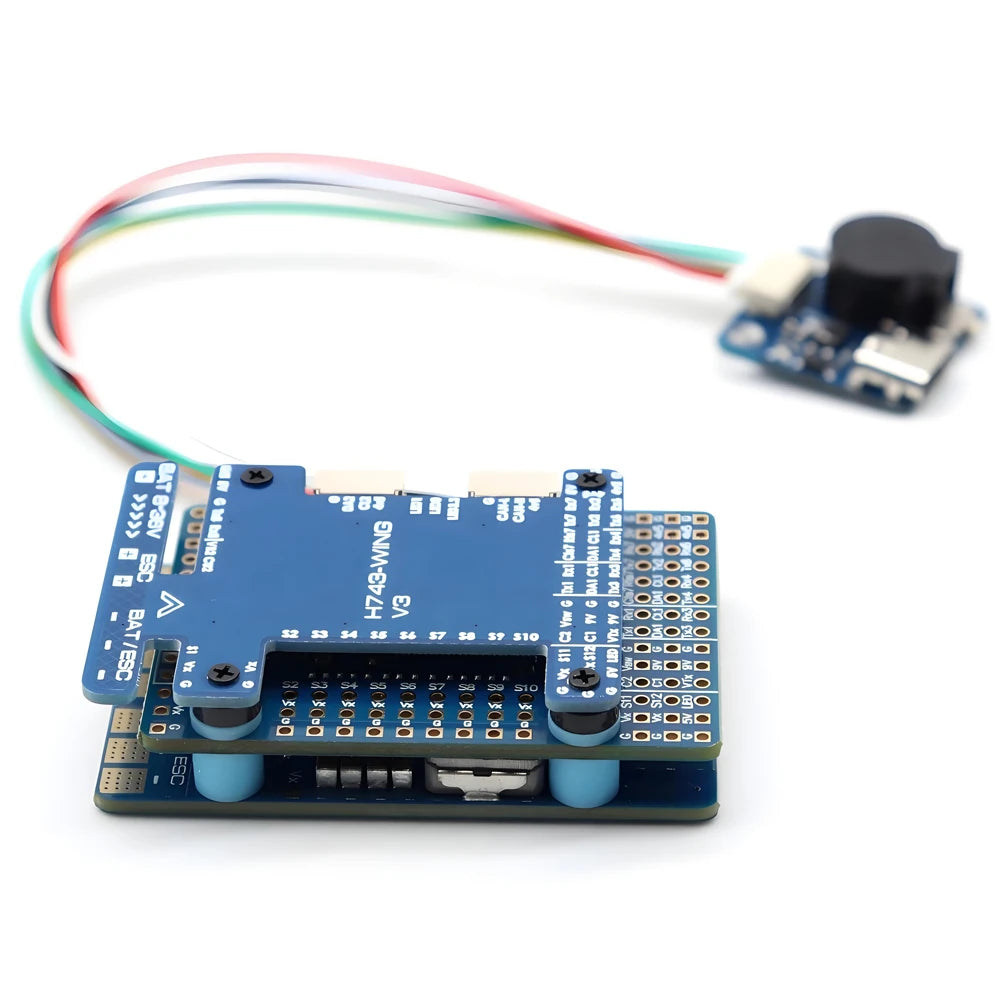

Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 54x36x13 mm
Weight: 30g with USB extender
H743-WING-V3 3d step file

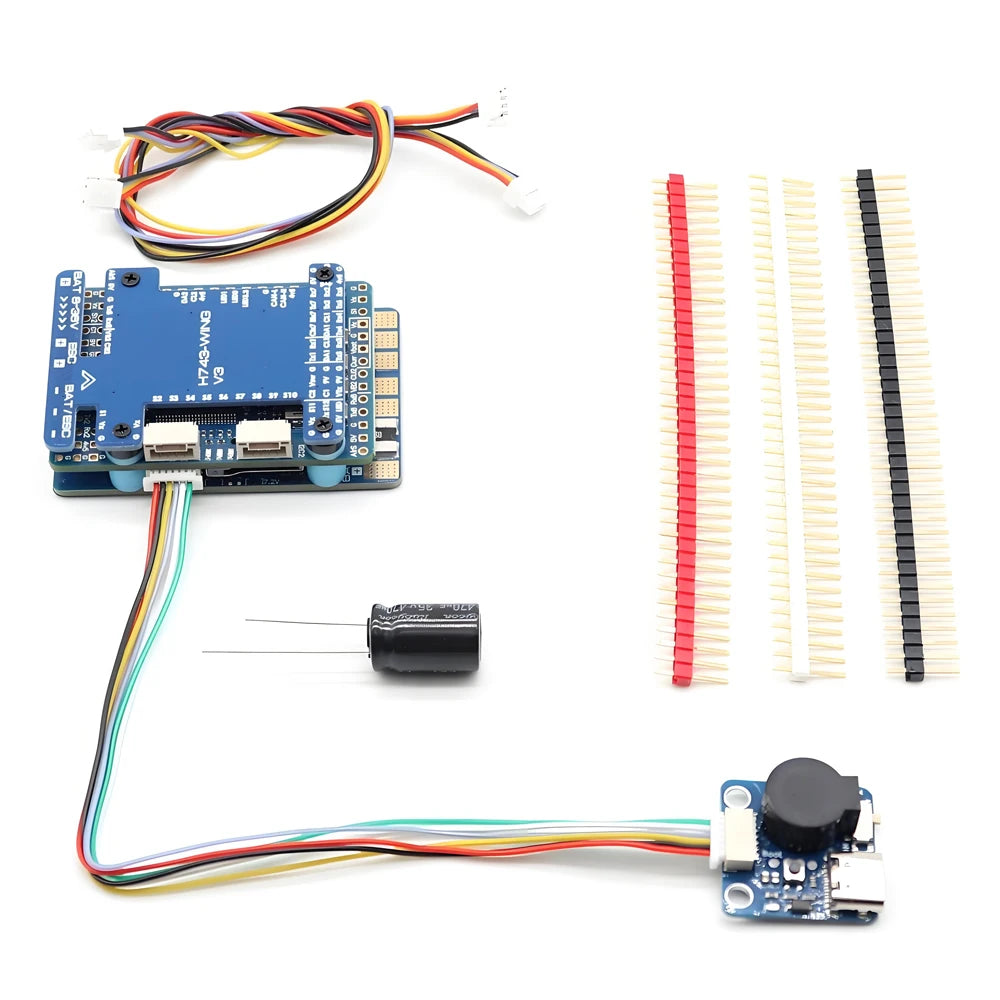

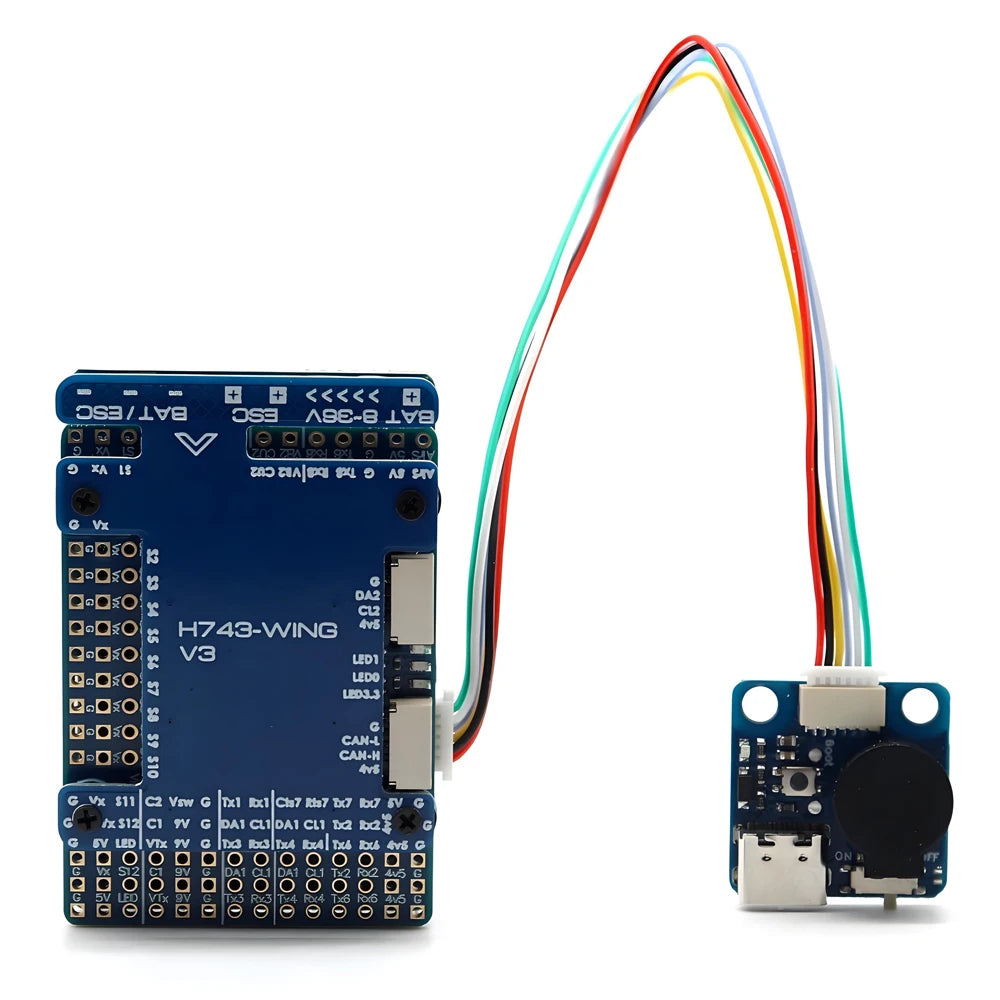

Including
1x H743-WING

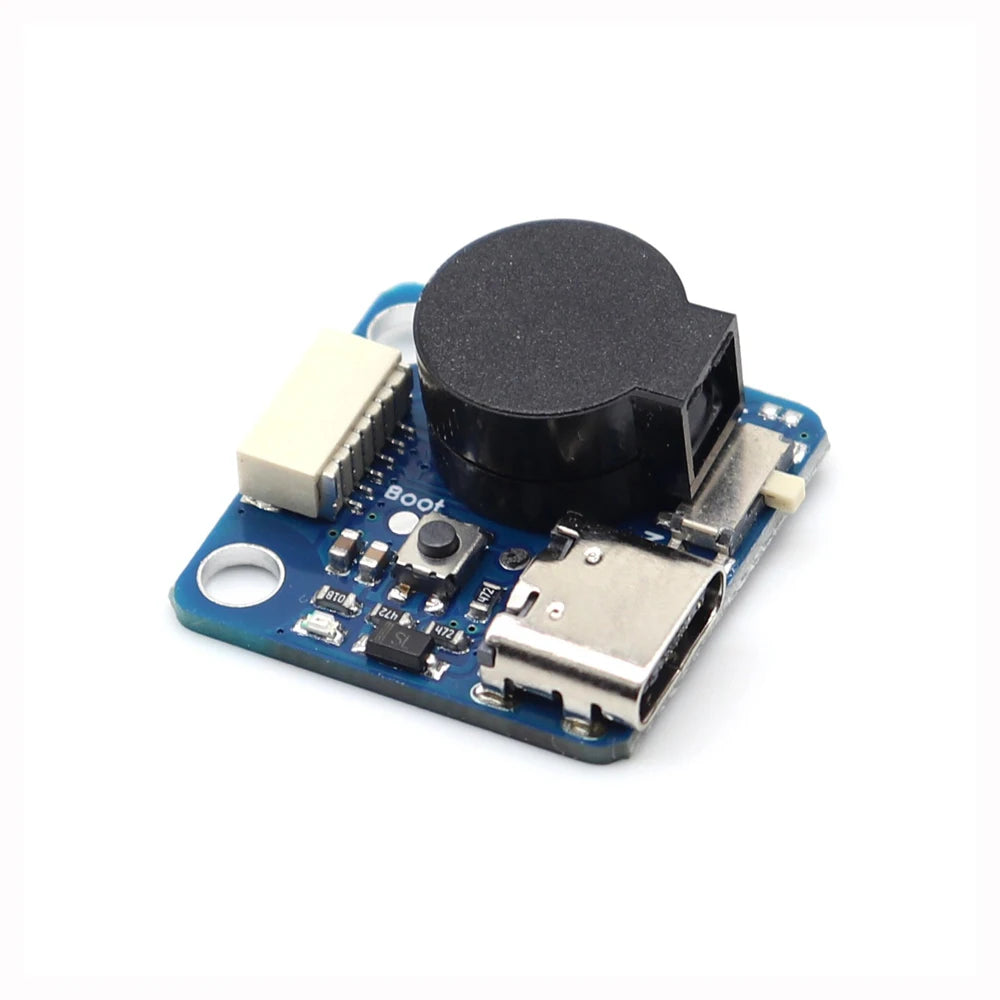

1x USB(Type-C)/Beep (Passive buzzer) Extender
1x 2Ocm JST-SH-6P to JST-SH-6P cable for USB extender.
2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
1x Rubycon ZLH 35V 470uF capacitor
Dupont 2.54 pins (Board is shipped unsoldered)
