PowMr Hybrid Solar Inverter 24V 110V Pure Sine Wave Inverter 2400W 3KVA Solar Panel Generator Portable Wechselrichter
PowMr Hybrid Solar Inverter 24V 110V Pure Sine Wave Inverter 2400W 3KVA Solar Panel Generator Portable Wechselrichter
Introduction:

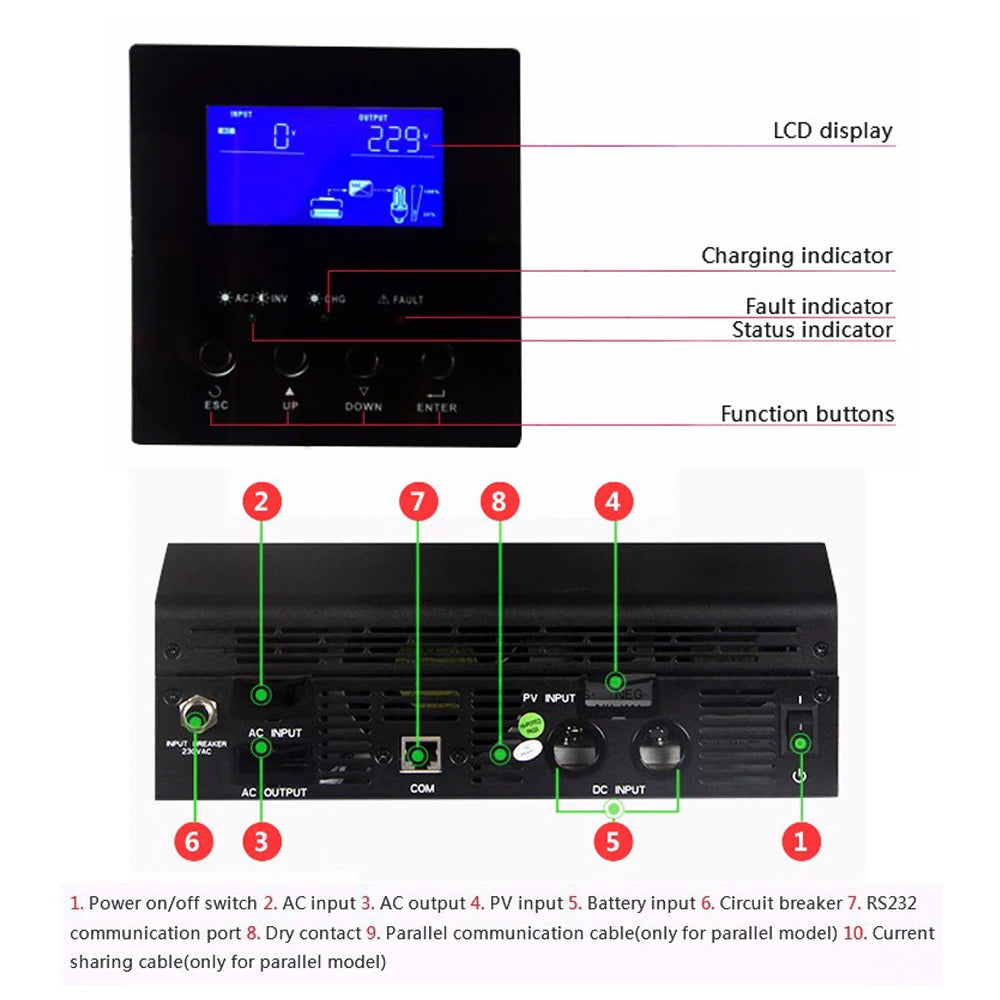

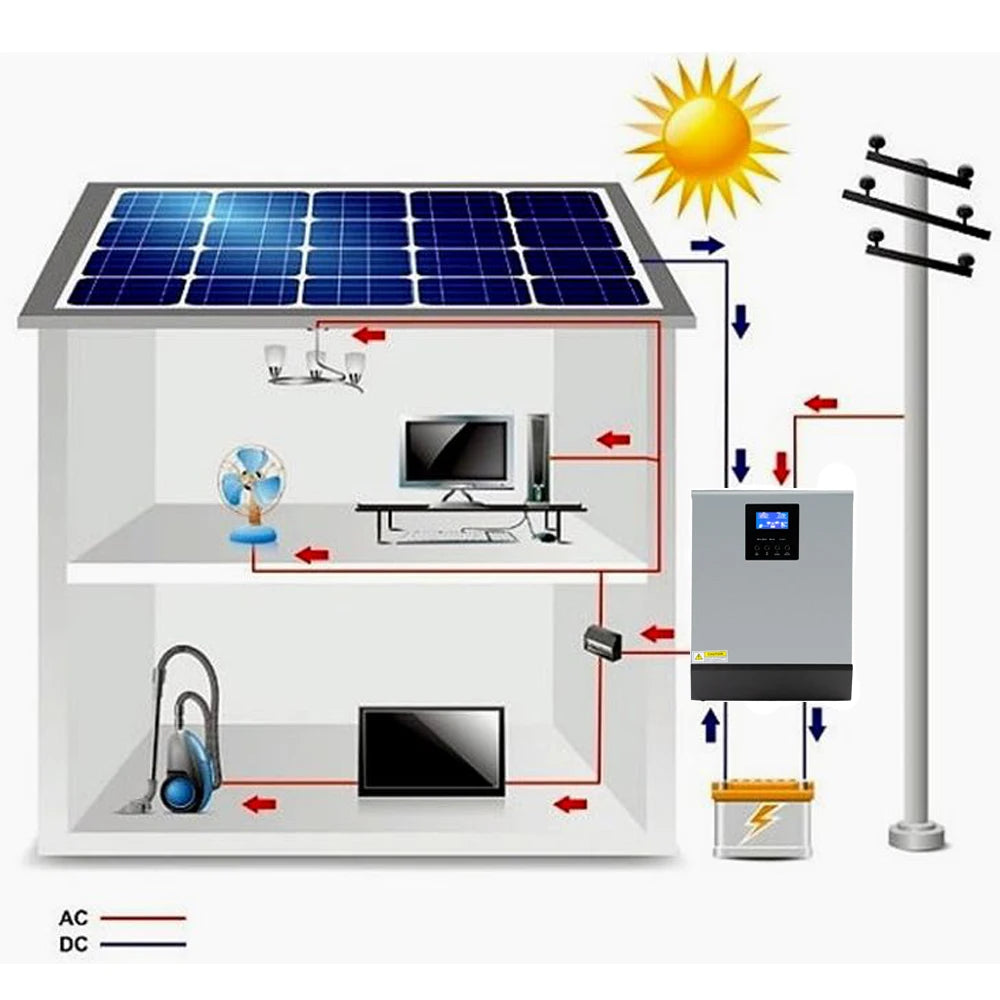

This is a multi-function inverter/chargei; combining functions of inverter solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.
Note:
Please Only Use Sealed Lead Acid Battery Or Sealed GEL/AGM Lead-Acid Battery.
The new package is no CD disc, but we have the software, if you need it , feel free to contact us.
Features:
Pure sine wave inverter
Built-in PWM solar charge controller
Configurable input voltage range for home applicances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/over temperature/ short circuit protection
Smart charging system optimizes battery performance
Cold start function

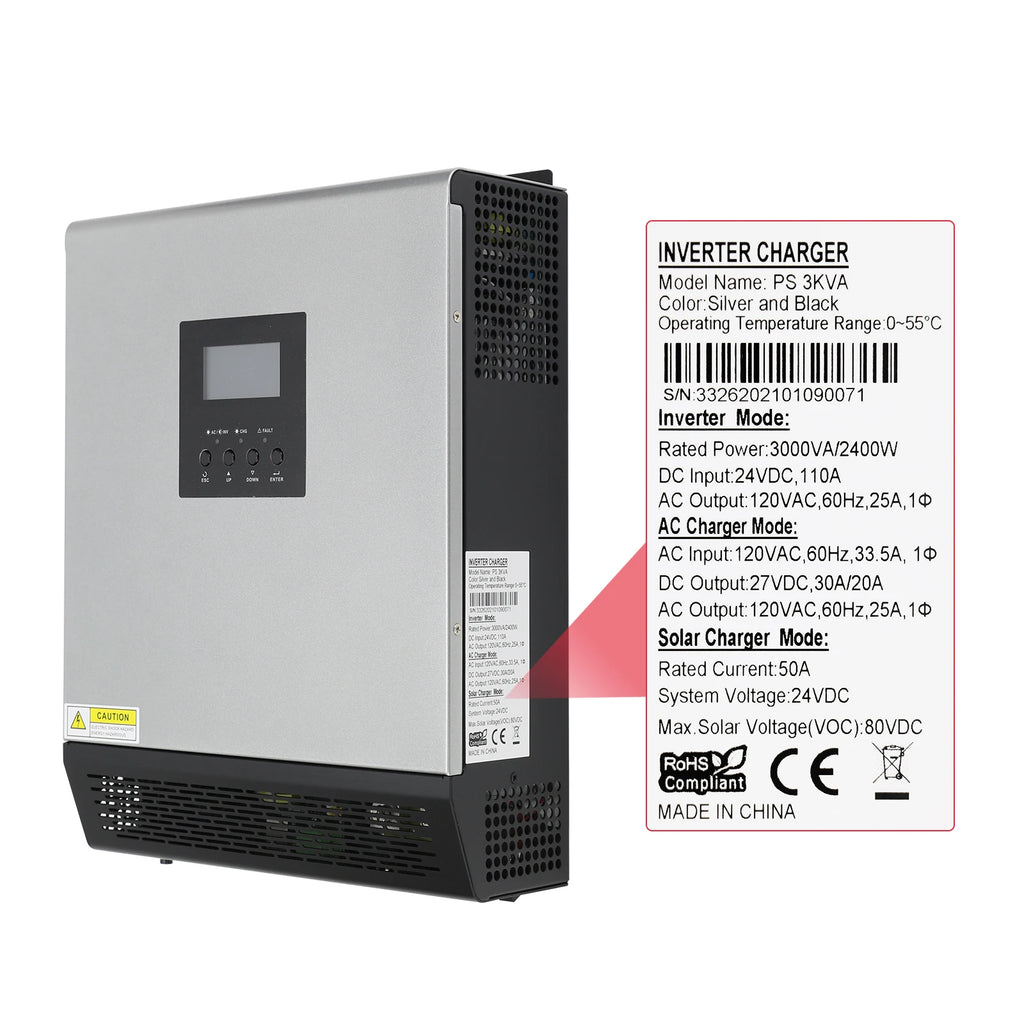

Product Parameter：
SPECIFICATIONS | |
Table 1 Line Mode specifications | |
INVERTER MODEL |
3KVA |
Input Voltage Waveform |
Sinusoidal (Utility Or Generator) |
Nominal Input Voltage |
120Vac |
Low Loss Voltage |
95Vac±7V (UPS);
65 Vac±7V (Appliances)
|
Low Loss Return Voltage |
100Vac±7V (UPS);
70Vac±7V (Appliances)
|
High Loss Voltage |
140Vac±7V |
High Loss Return Voltage |
135Vac±7V |
Max AC Input Voltage |
150Vac |
Nominal Input Frequency |
50Hz / 60Hz (Auto Detection) |
Output Short Circuit Protection |
Circuit Breaker |
Efficiency (Line Mode) |
>95% ( Rated R Load, Battery Full Charged ) |
Transfer Time |
10Ms Typical (UPS);
20Ms Typical (Appliances)
|
Table 2 Inverter Mode specifications | |
INVERTER MODEL |
3KVA |
Rated Output Power |
3KVA/2.4KW |
Output Voltage Waveform |
Pure Sine Wave |
Output Voltage Regulation |
120Vac±5% |
Peak Efficiency |
90% |
Overload Protection |
5S@≥150% Load;
10S@110% R 150% Load
|
Surge Capacity |
2* Rated Power For 5 Seconds |
Nominal DC Input Voltage |
24Vdc |
Cold Start Voltage |
23.0Vdc |
High DC Recovery Voltage |
29Vdc |
High DC Cut-Off Voltage |
31Vdc |
No Load Power Consumption |
<20W |
Saving Mode Power Consumption |
<10W |
Table 3 charge Mode specifications | |
Utility Charging Mode |
Utility Charging Mode |
AC Charging Current |
20/30Amp
(@V I/P= 120Vac)
|
Floating Charging Voltage |
27Vdc |
Solar Charging Mode |
Solar Charging Mode |
Charging Current (PWM) |
50Amp |
System DC Voltage |
24Vdc |
Operating Voltage Range |
30~32Vdc |
Max. PV Array Open Circuit Voltage |
80Vdc |
Standby Power Consumption |
2W |
DC Voltage AccurACy |
+/- 0.3% |
Battery Connection | |||||||
Model |
Typical Amperage |
Battery Capacity |
Wire Size |
Ring Terminal |
Torque value |
||
Cable mm2 |
Dimensions |
||||||
D(mm) |
L（mm) |
||||||
3KVA |
100A |
100AH |
1*4AWG |
22 |
6.4 |
33.2 |
2~3 Nm |
200AH |
2*8AWG |
14 |
6.4 |
29.20 |
|||
AC Input/Output Connection | |||||||
Model |
AC Breaker |
Gauge |
Torque value |
||||
3KVA |
32A |
12 AWG |
1.2~1.6 Nm |
||||
PV Connection | |||||||
Model |
Typical Amperage |
Gauge |
Torque value |
||||
3KVA |
50A |
8 AWG |
1.4~1.6 Nm |
||||

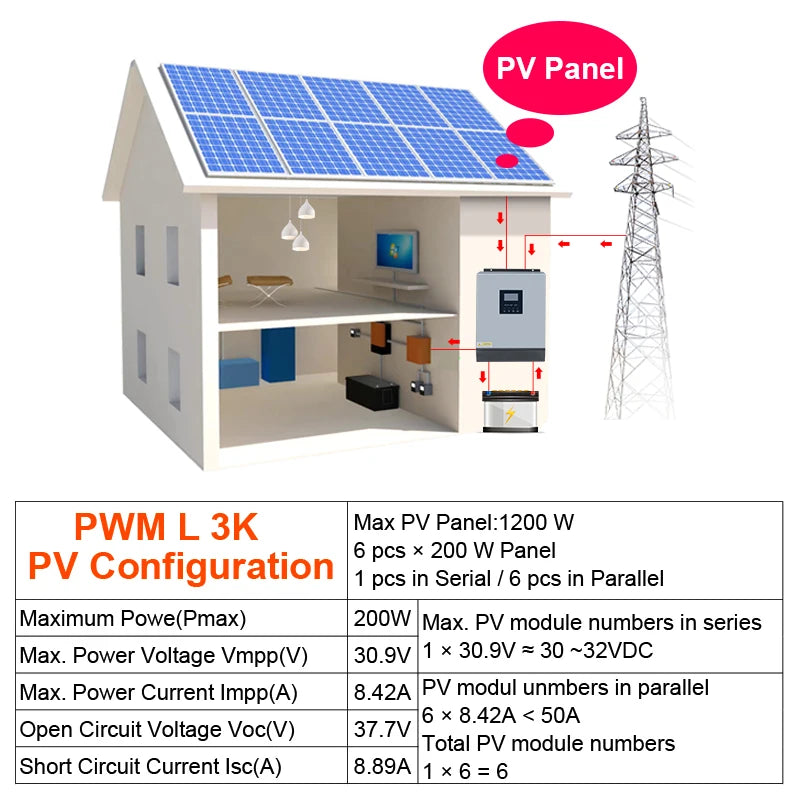

PV Module Selection | |||||||
Maximum Power(Pmax) |
260W |
Max.PV module numbers in series |
|||||
Max. Power Voltage Vmpp(V) |
30.9V |
1: 30.9x1=30~32 |
|||||
Max.Power Current Impp(A) |
8.42A |
PV module numbers in parallel |
|||||
Open Circuit Voltage Voc(V) |
37.7V |
6: 50A/8.42 |
|||||
Short Circuit Current Isc(A) |
8.89A |
Total PV module numbers:1x6=6 |
|||||
Maximum PV module numbers in Series :1 | |||||||
PV module numbers in parallel :6 | |||||||
Total PV module numbers :1x6=6 | |||||||
