Descriptions:

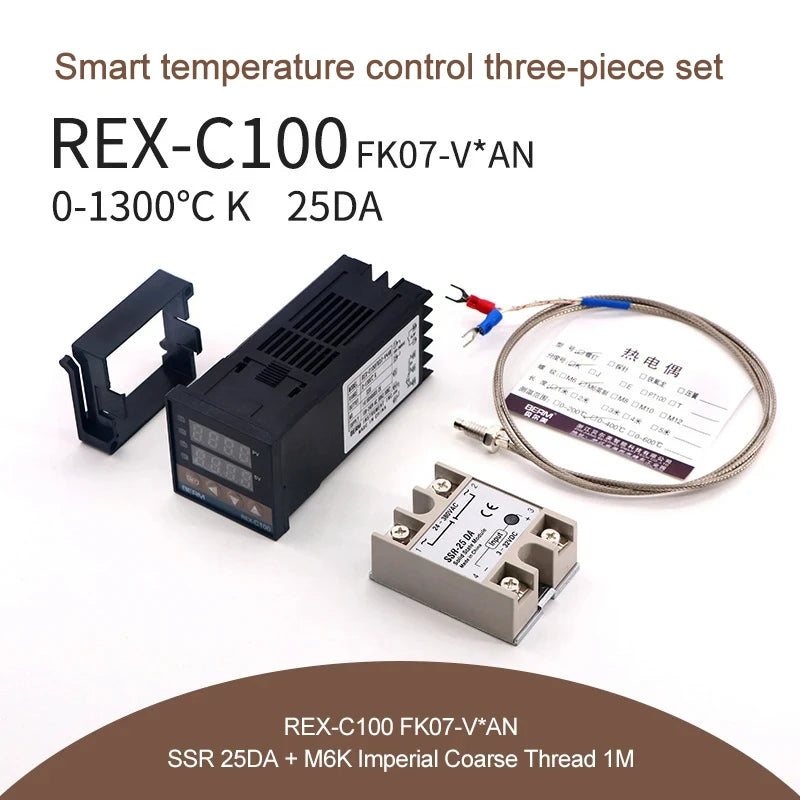

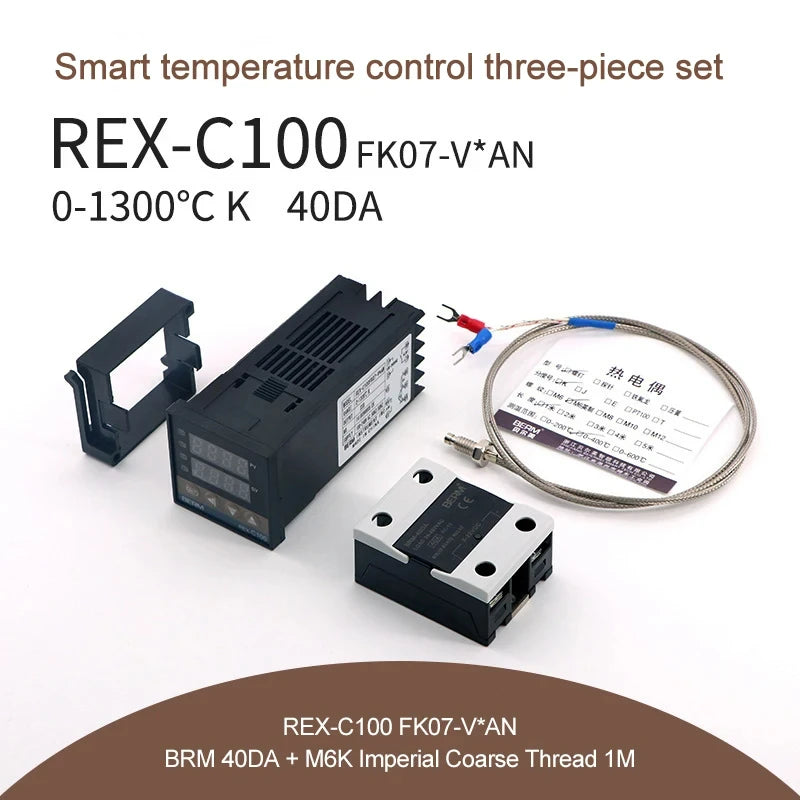

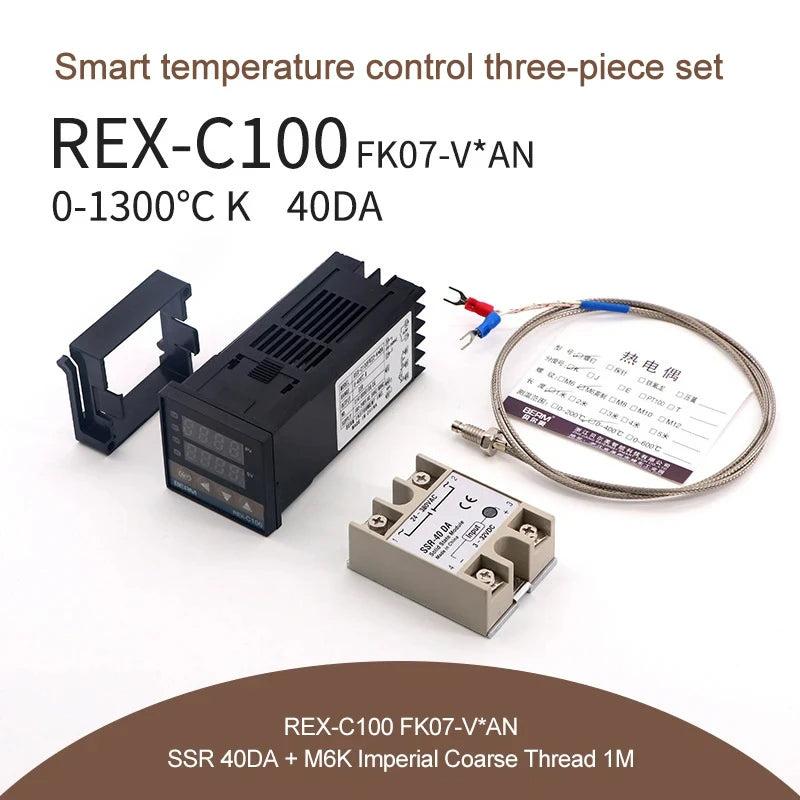

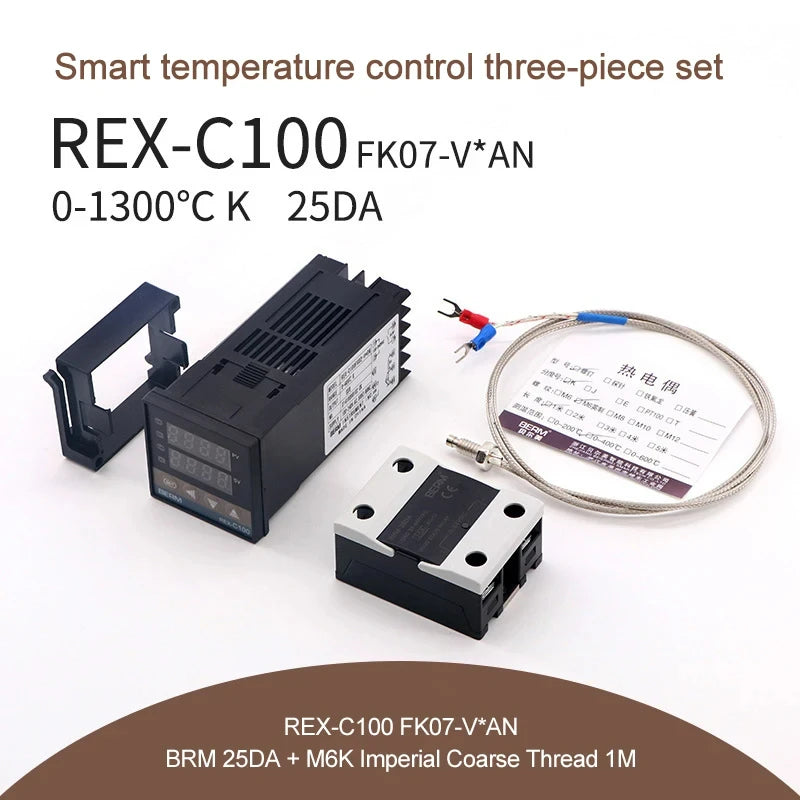

The temperature controller set includes temperature controller, SSR-40 DA(or SSR 25DA) and M6 1M cable, intelligent pid control, digital display control thermometer, high precision. The set is easy to use for mechnical and other automatic control systems to control temperature.
Features:

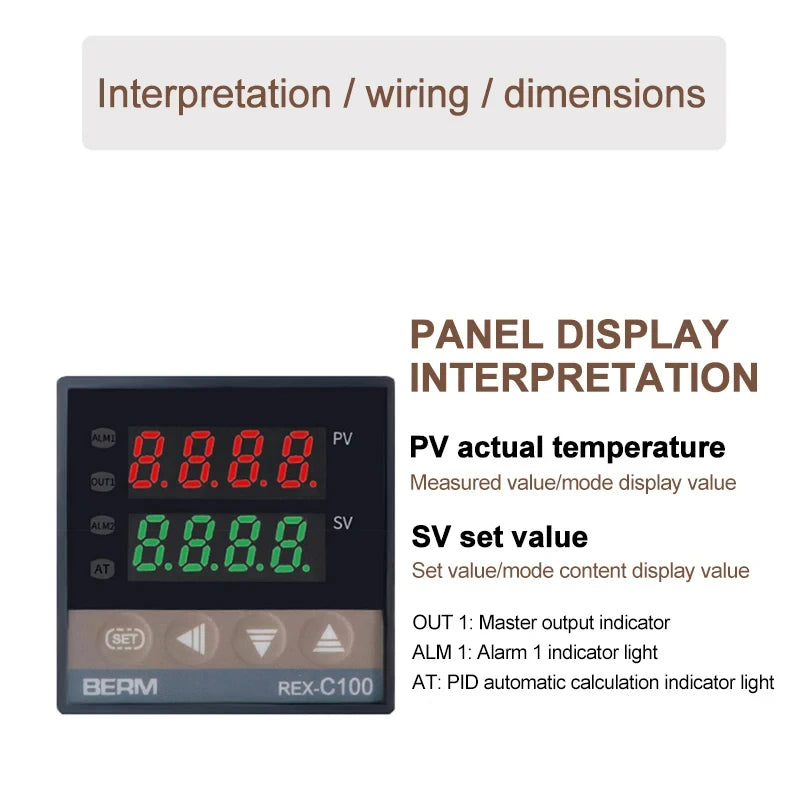

Process value (pv), adjustment value (sv).
Output, alarm and auto-adjustment can be indicated by: light-emitting diode.
Pin control (including on / off, step-type pid and continuous pid).
Self-adjusting control.
The SSR-40 DA has quick temperature control, small overrun and high precision.

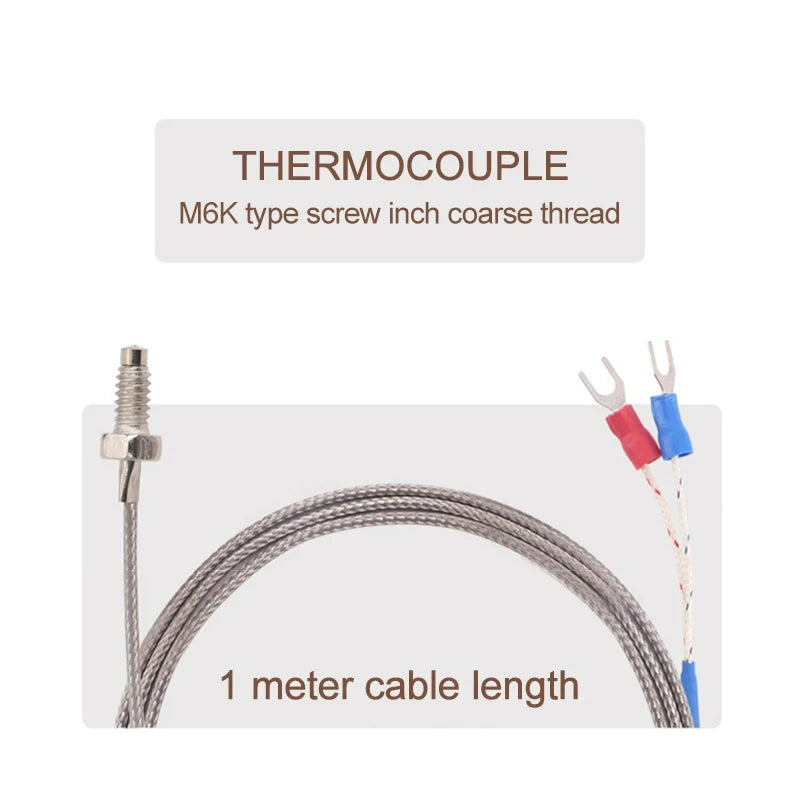

M6 thread 1m length k-type thermocouple temperature detection for temperature controller.
Widely applied to electric power, chemical industry, injection molding, food, oven and other equipments.
Specifications:

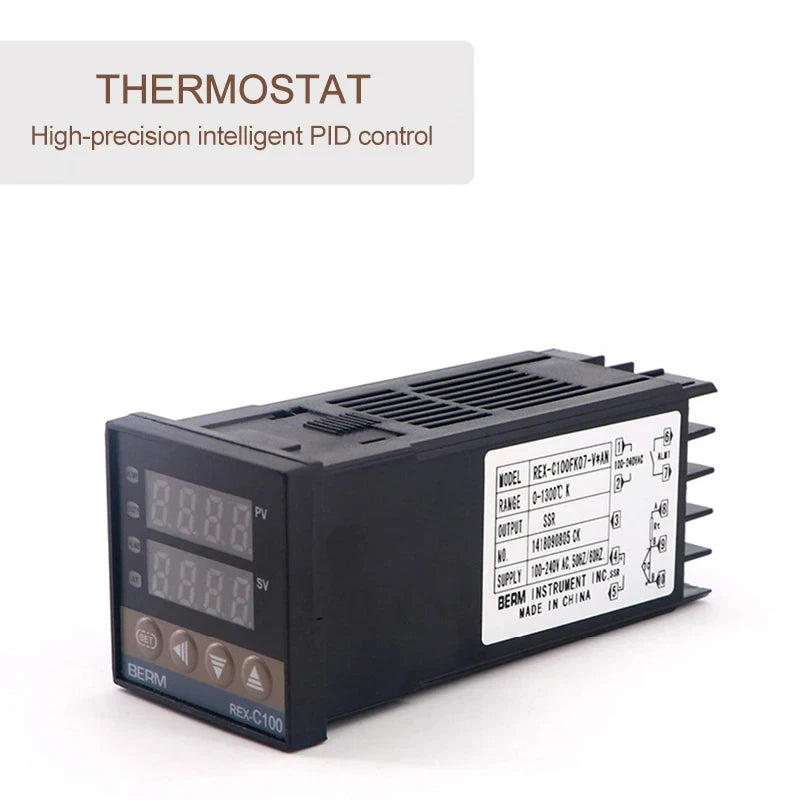

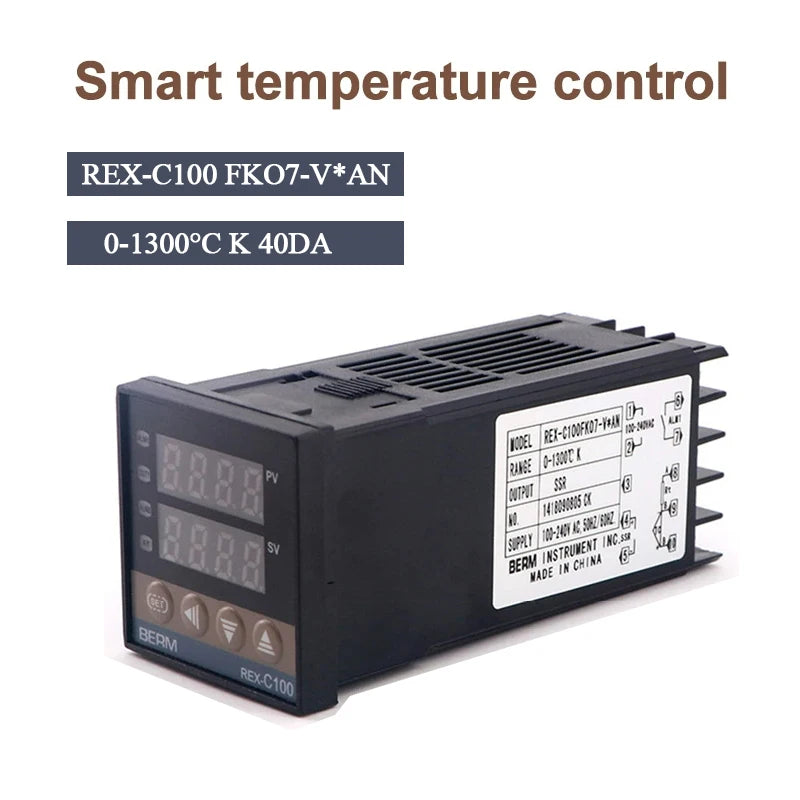

Temperature Controller
Supply: AC100-240V, 50/60HZ
Material: ABS
Color: Black
Temperature Range: 0 to 1300 ℃
Output: SSR
Supply: AC100-240V, 50/60HZ
Item Size: 107 * 48 * 48mm / 4.21 * 1.89 * 1.89in
Bracket Size: 53 * 47mm / 2.09 * 1.85in

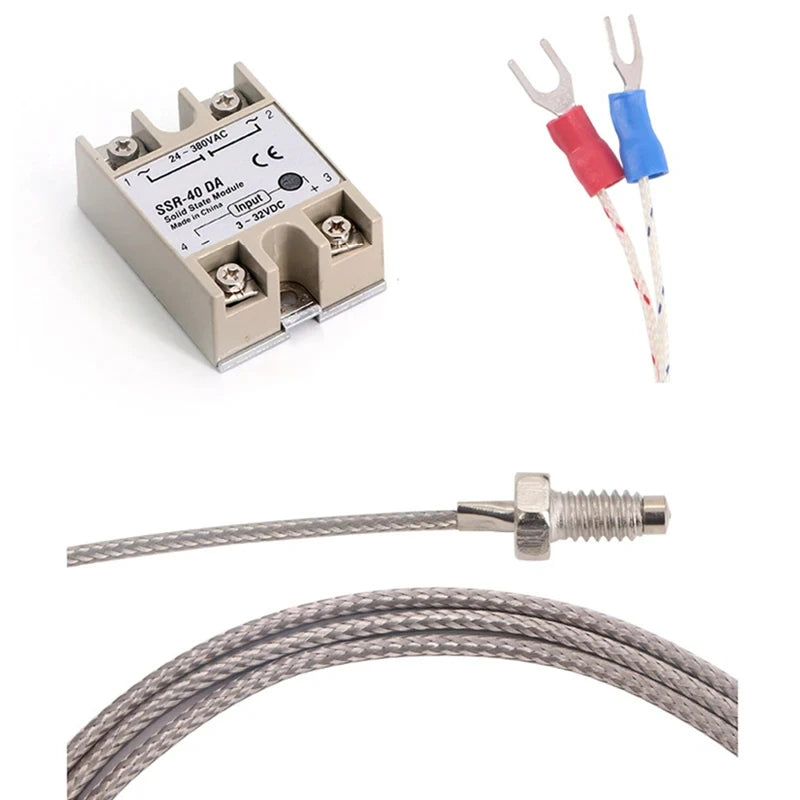

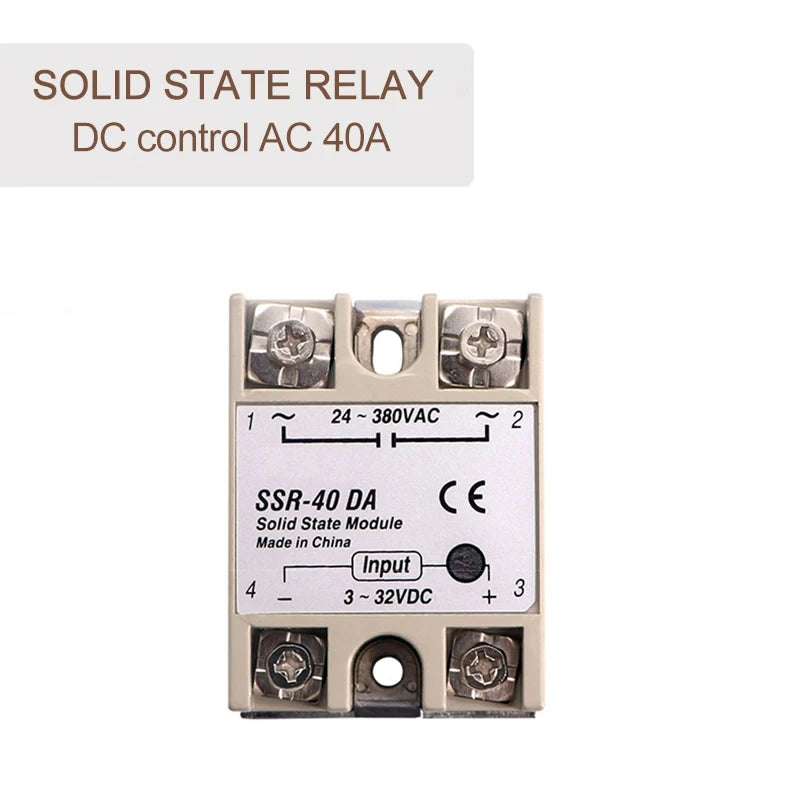

SSR-40 DA or SSR 25DA
Output Current: 25A / 40A(optional)
Input Voltage: DC3-32V
Output Voltage: AC24-380V
Item Size: 62.8 * 46 * 23.5mm / 2.47 * 1.81 * 0.93in
K Thermocouple Probe Cable
Length: 1m / 3.28ft
Package Weight: 269g / 9.49ounces
Package Size: 150 * 125 * 50mm / 5.91 * 4.92 * 1.97in
Packing List:
1 * Temperature Controller
1 * SSR-40 DA or SSR 25DA
1 * K Thermocouple Probe Cable
1 * User Manual
