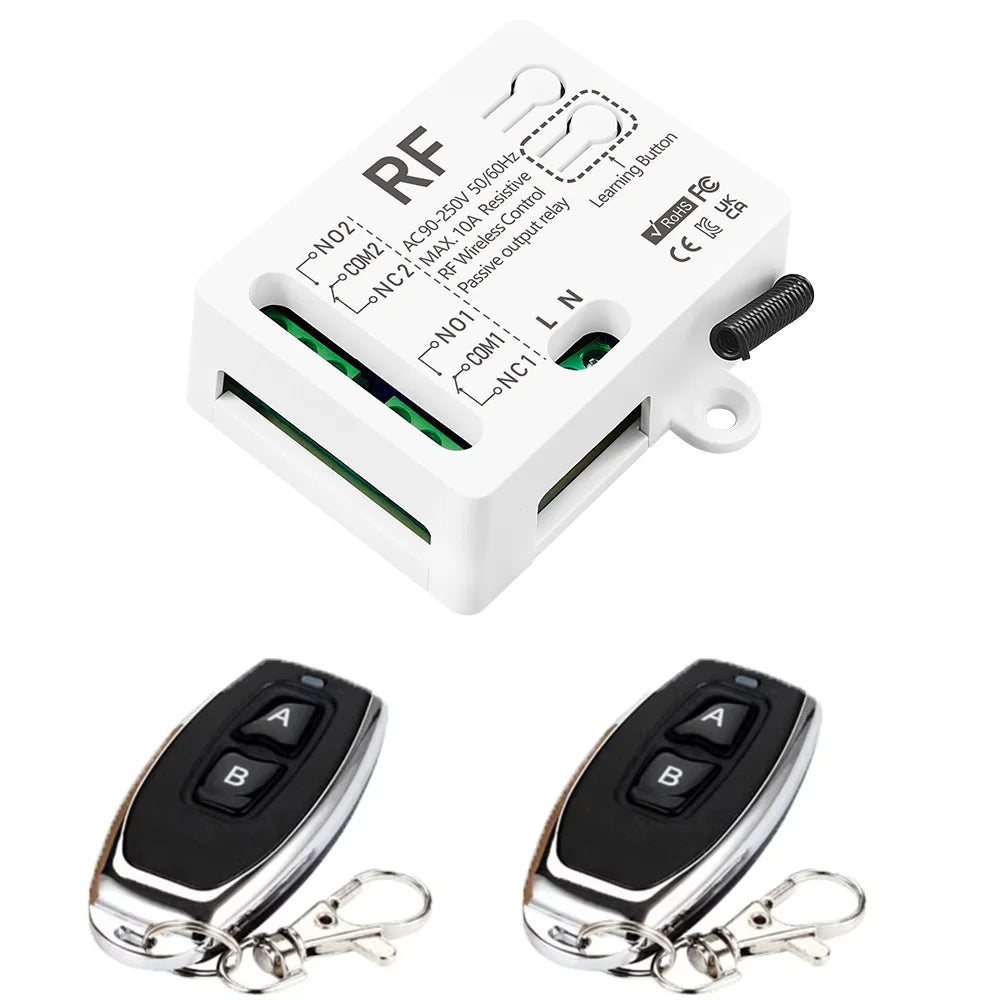

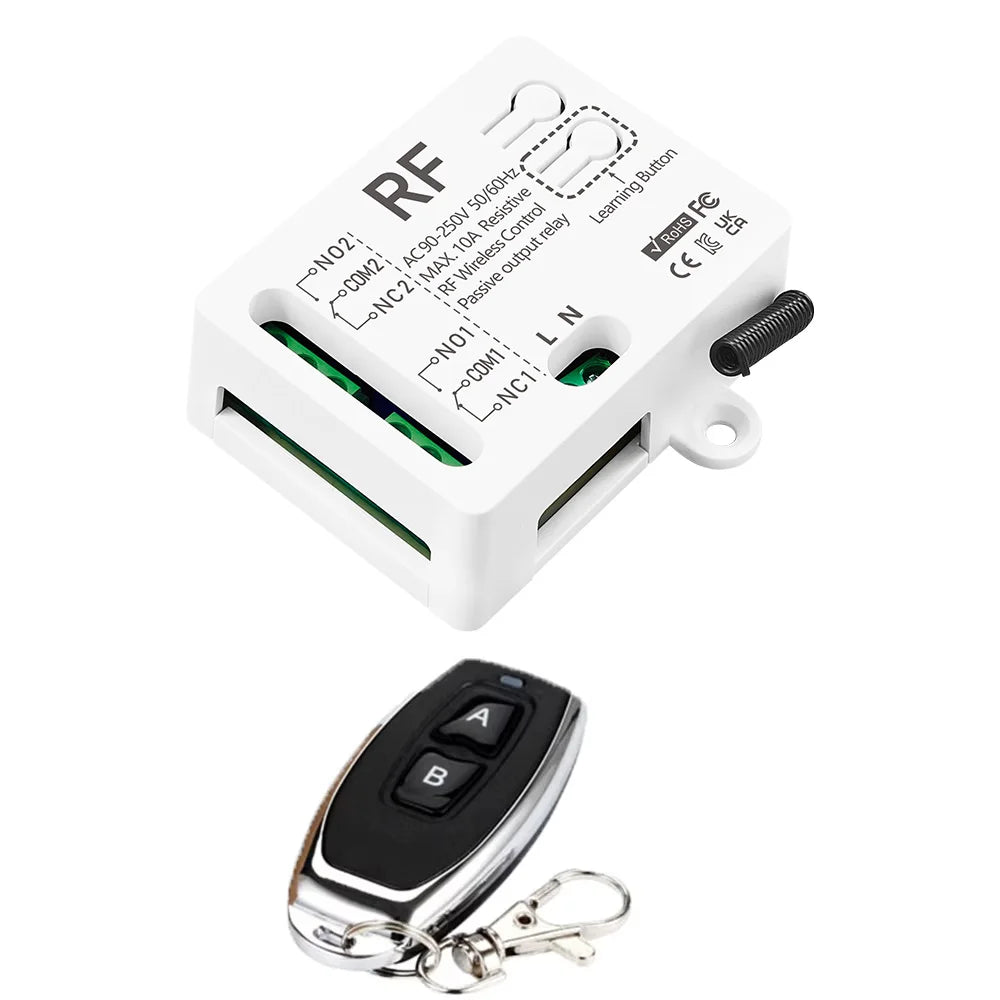

Rf 433Mhz Wireless Remote Control Switch AC110V 220V 230V 10A 2300W 2CH Relay Receiver Remote Control for Lights garage door
1Receiver 2Remotes
$23.99
Sale price
$23.99
Regular price
$45.12
Skip to product information
The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
Rf 433Mhz Wireless Remote Control Switch AC110V 220V 230V 10A 2300W 2CH Relay Receiver Remote Control for Lights garage door
$23.99
Sale price
$23.99
Regular price
$45.12
Shipping calculated at checkout.
Rf 433Mhz Wireless Remote Control Switch AC110V 220V 230V 10A 2300W 2CH Relay Receiver Remote Control for Lights garage door
This wireless receiver has 3 control modes:
Please choose the appropriate control mode according to your needs.
1: Momentary mode:
Performance
Press and hold on A button,the A relay will work;Release A button ,this relay will stop.
Press and hold on B button,the B relay will work;Release Bbutton ,this relay will stop.

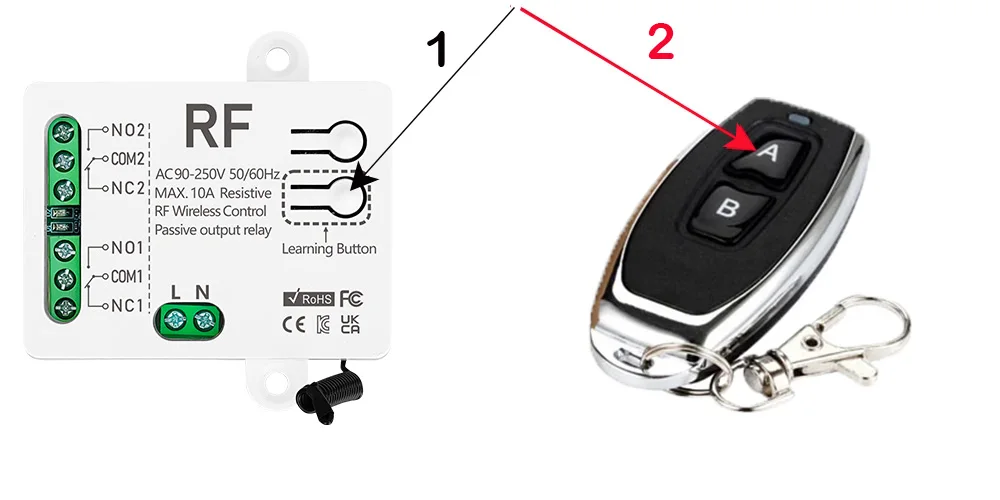

Match signal:
1:Press the black learning button (on the receiver) 1 time. Wait for 1second,
2. Press button on the *A* remote control 1 time. Wait for 1second,
2. Press button on the *B* remote control 1 time. succeed.
2:Toggle mode:
Performance
Press A button 1 time,the A relay will work;press A button 1 time again,this relay will stop.
Press B button 1 time,the B relay will work;press B button 1 time again,this relay will stop.
Match signal:
1:Press the black learning button (on the receiver) 2 times. Wait for 1second,
2. Press button on the *A* remote control 1 time. Wait for 1second,
3. Press button on the *B* remote control 1 time. succeed.
3:Mix mode:
Performance
Press and hold on A button,the A relay will work;Release A button ,this relay will stop.
Press B button 1 time,the B relay will work;press B button 1 time again,this relay will stop.
Match signal:
1:Press the black learning button (on the receiver) 4 times. Wait for 1second,
2. Press button on the *A* remote control 1 time. Wait for 1second,
3. Press button on the *B* remote control 1 time. succeed.
Please choose the appropriate control mode according to your needs.
1: Momentary mode:
Performance
Press and hold on A button,the A relay will work;Release A button ,this relay will stop.
Press and hold on B button,the B relay will work;Release Bbutton ,this relay will stop.
Match signal:
1:Press the black learning button (on the receiver) 1 time. Wait for 1second,
2. Press button on the *A* remote control 1 time. Wait for 1second,
2. Press button on the *B* remote control 1 time. succeed.
2:Toggle mode:
Performance
Press A button 1 time,the A relay will work;press A button 1 time again,this relay will stop.
Press B button 1 time,the B relay will work;press B button 1 time again,this relay will stop.
Match signal:
1:Press the black learning button (on the receiver) 2 times. Wait for 1second,
2. Press button on the *A* remote control 1 time. Wait for 1second,
3. Press button on the *B* remote control 1 time. succeed.
3:Mix mode:
Performance
Press and hold on A button,the A relay will work;Release A button ,this relay will stop.
Press B button 1 time,the B relay will work;press B button 1 time again,this relay will stop.
Match signal:
1:Press the black learning button (on the receiver) 4 times. Wait for 1second,
2. Press button on the *A* remote control 1 time. Wait for 1second,
3. Press button on the *B* remote control 1 time. succeed.

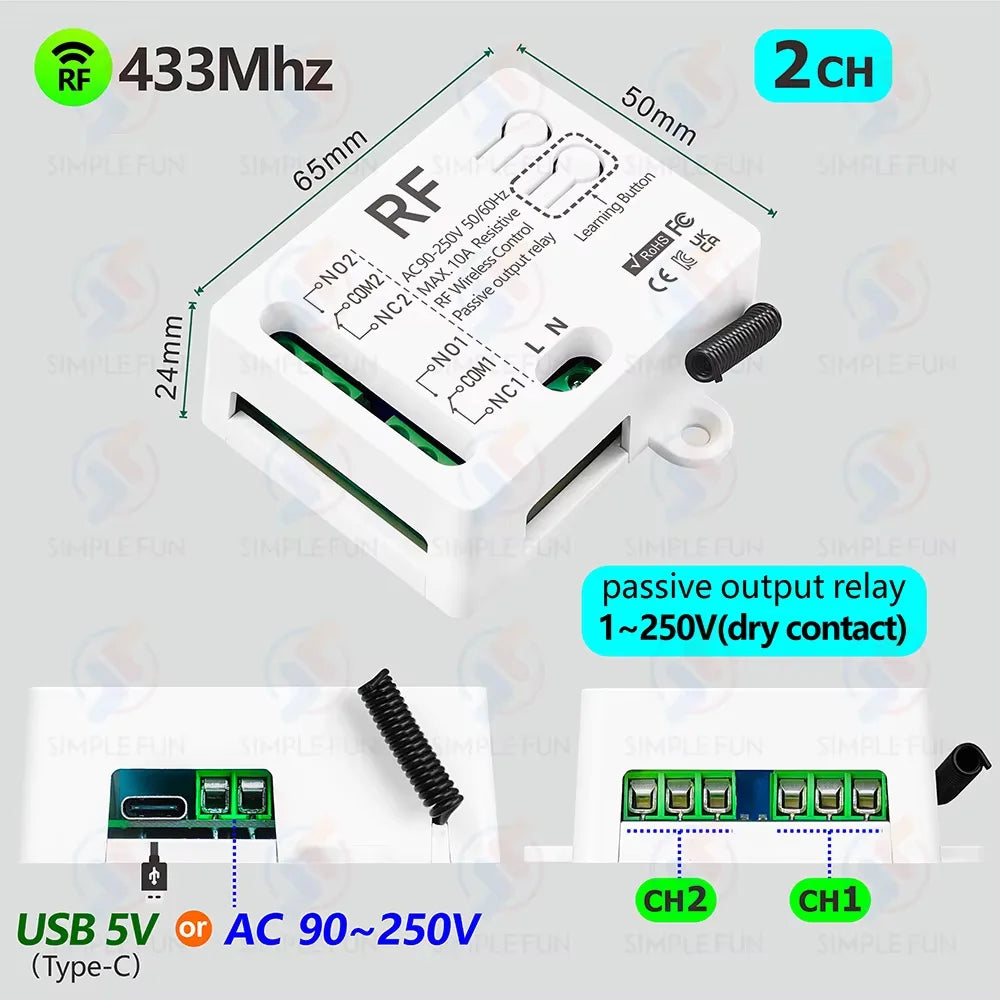

Relay Receiver Board Parameter
--Working voltage : AC 85V~250V OR TYPEC 5V
--Quiescent Current : <5MA
--Max current : 10Amp
--Max load : 2200W
--RF frequency : 433MHz
--Pin : COM,NO,NC
--Working temperature : -30~+80
--Receiving Sensitivity : >97dbm
--Amount of storage remote controls : 25 pieces

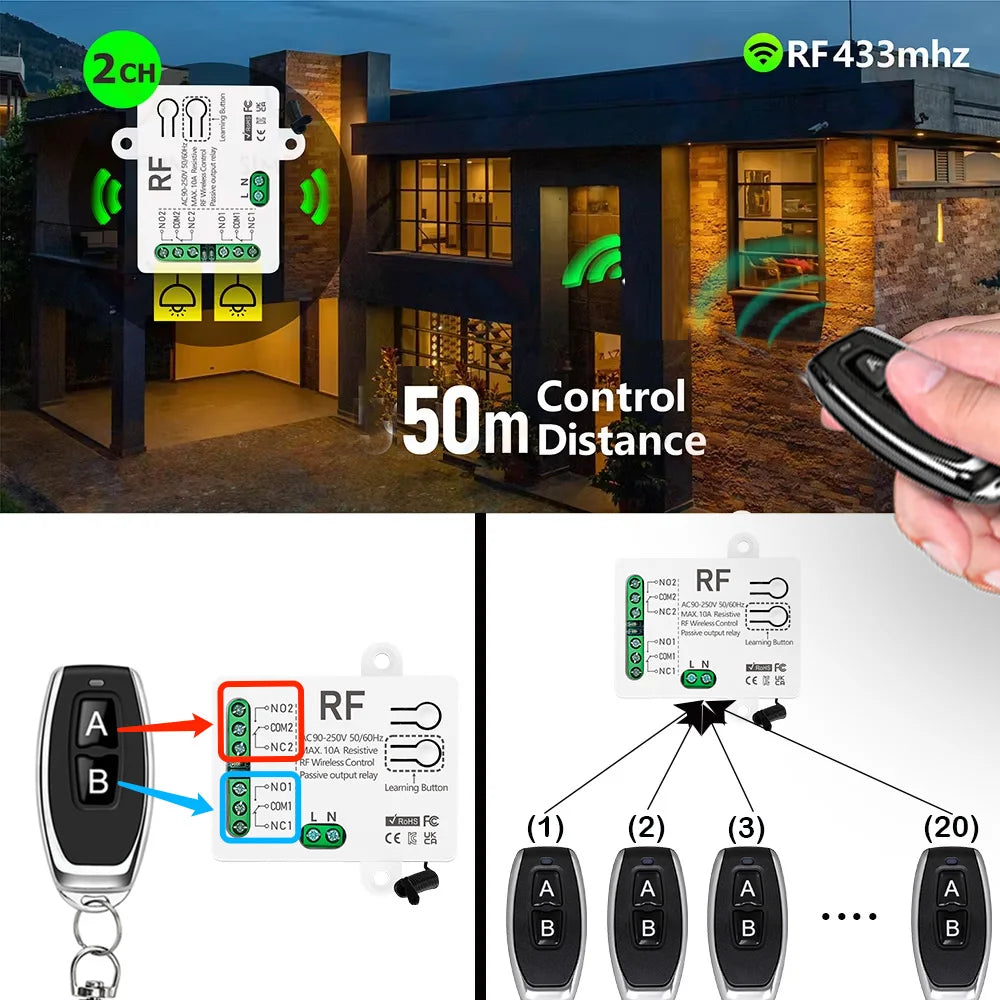

--Receiving range : Open space is more than 50 meters
--Remote operating mode : Momentary Mode / Toggle Mode / Mix Mode

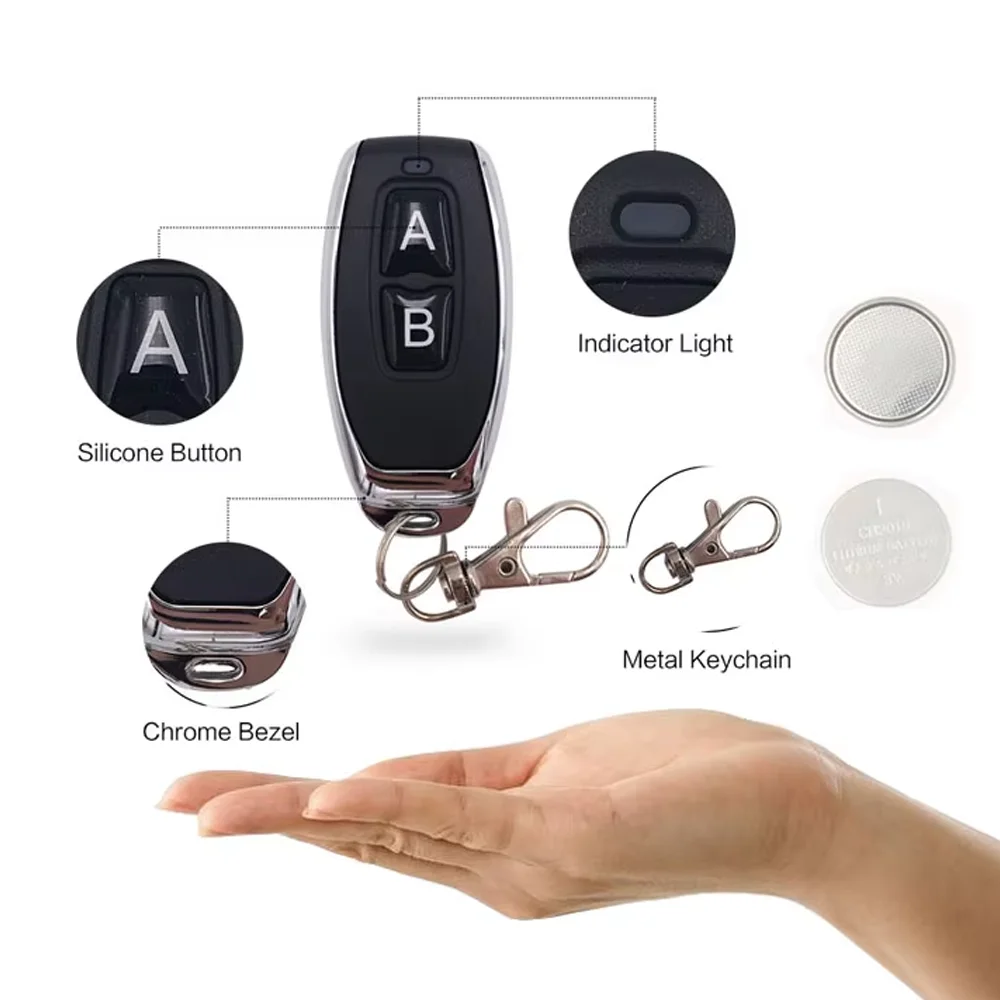

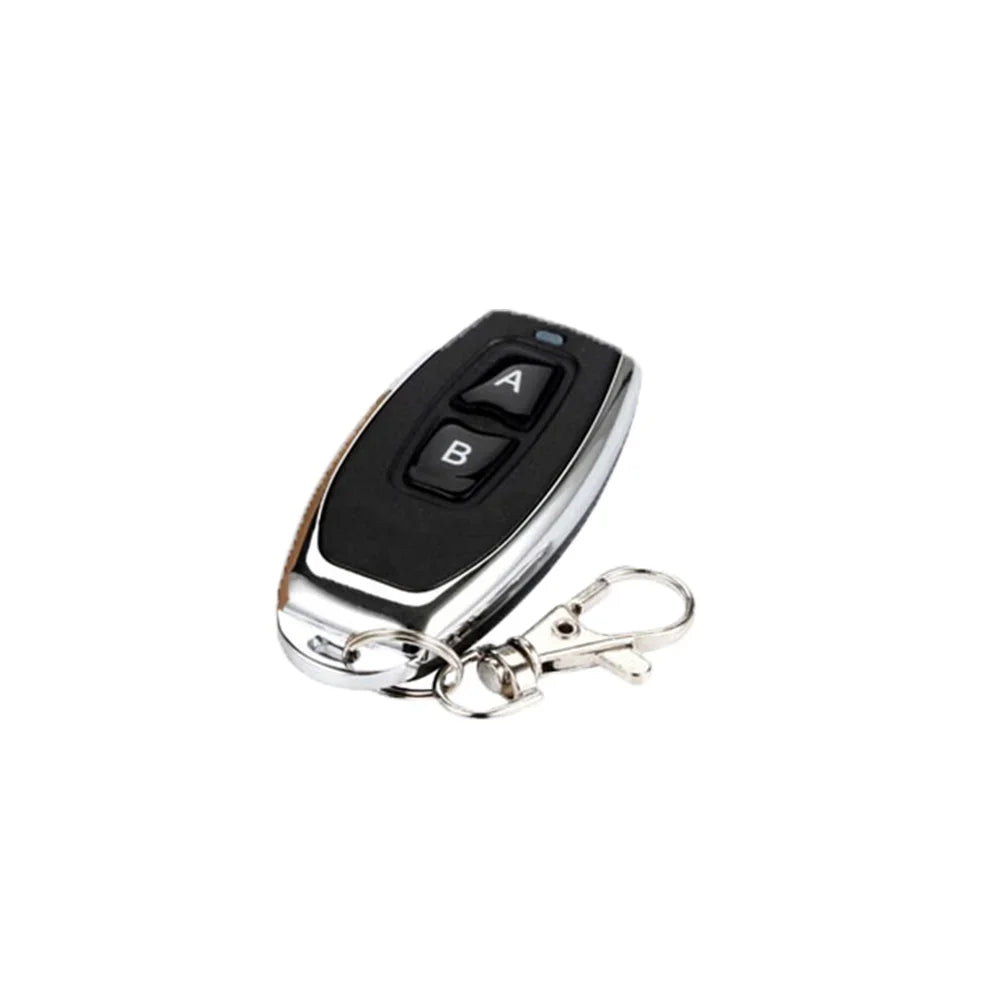

Transmitter Parameter
--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Transmitting range : Open space is more than 50 meters
--Battery : 1pc * CR2032 ( include )
--Quiescent Current : <5MA
--Max current : 10Amp
--Max load : 2200W
--RF frequency : 433MHz
--Pin : COM,NO,NC
--Working temperature : -30~+80
--Receiving Sensitivity : >97dbm
--Amount of storage remote controls : 25 pieces
--Receiving range : Open space is more than 50 meters
--Remote operating mode : Momentary Mode / Toggle Mode / Mix Mode
Transmitter Parameter
--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Transmitting range : Open space is more than 50 meters
--Battery : 1pc * CR2032 ( include )

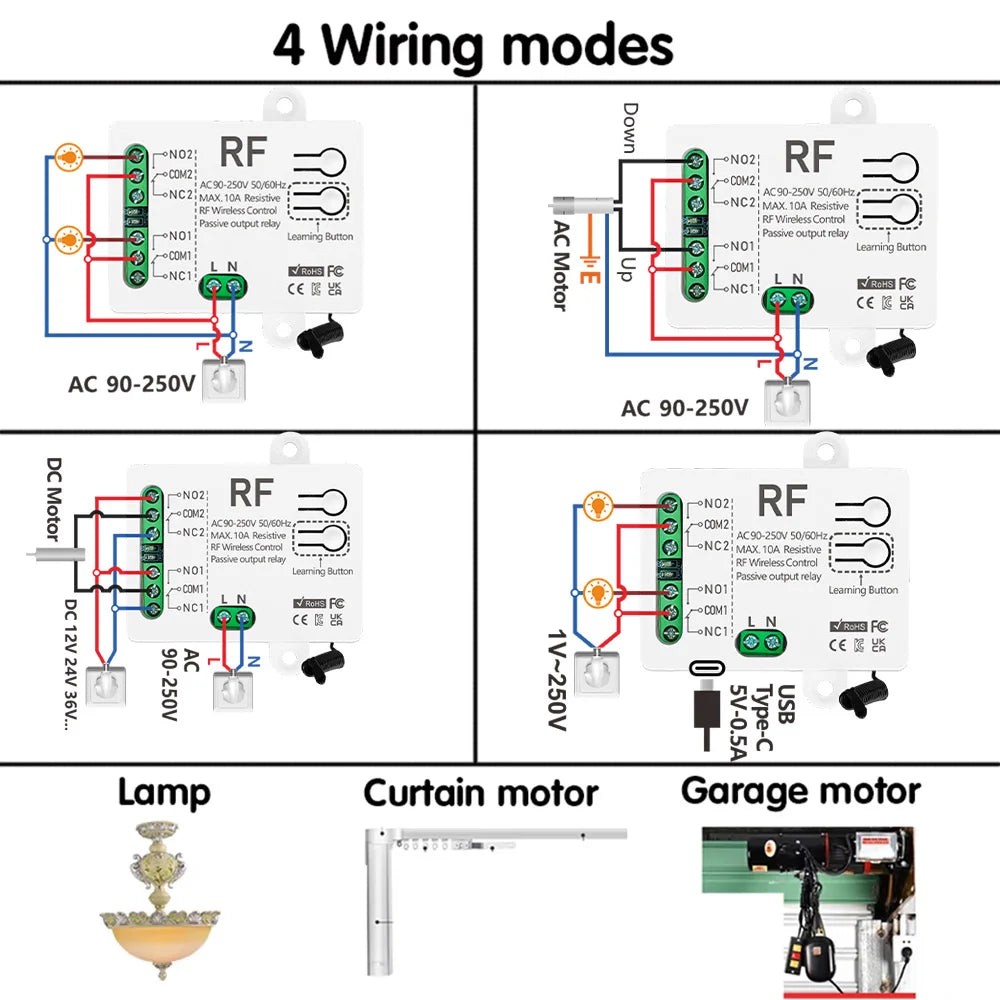

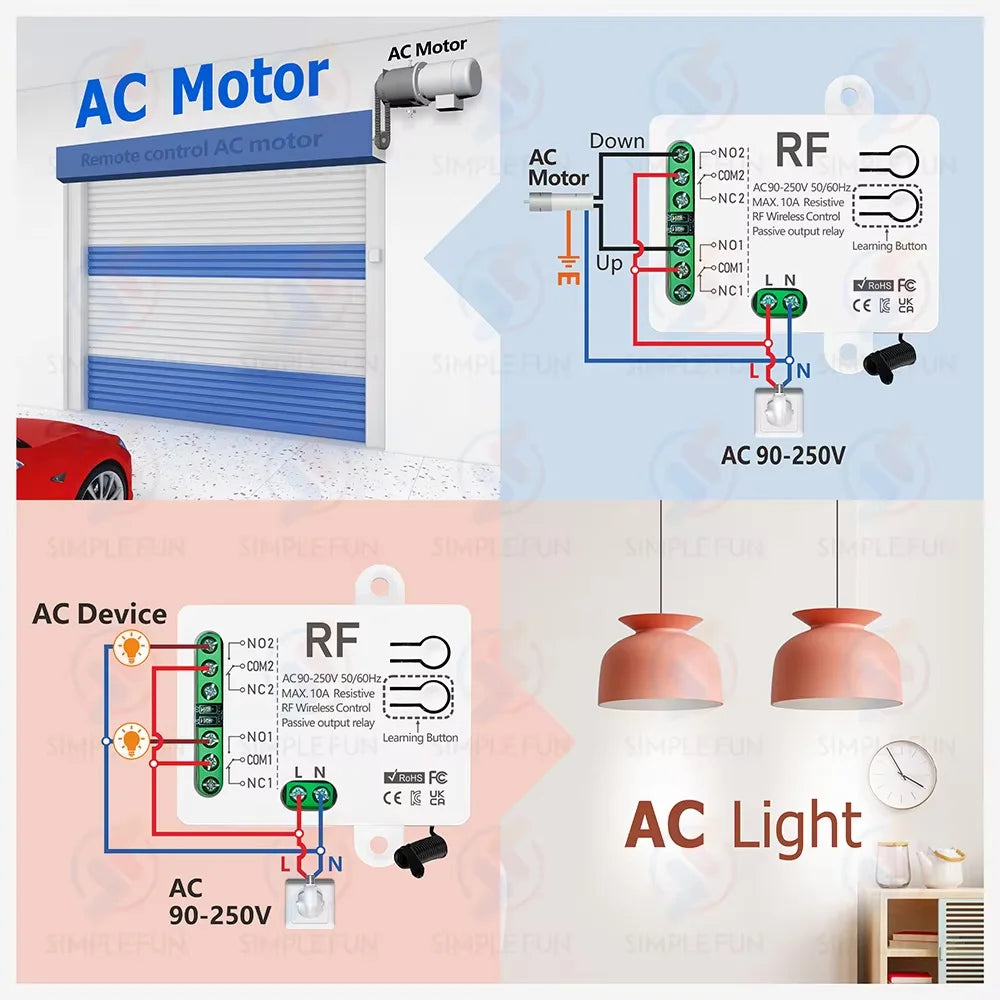

4 Wiring diagrams

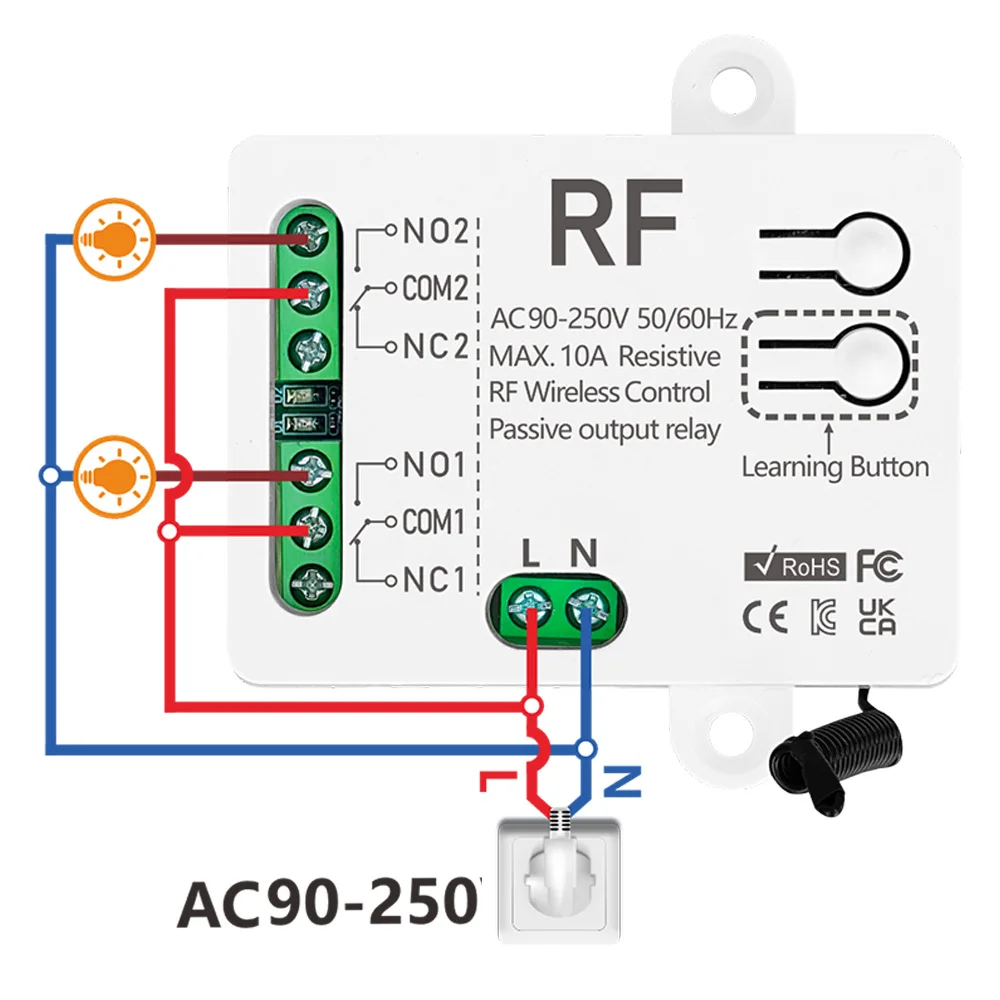

The first Wiring diagram
------- No Extra Power Use for Light/Home appliance
The first Wiring diagram
------- No Extra Power Use for Light/Home appliance

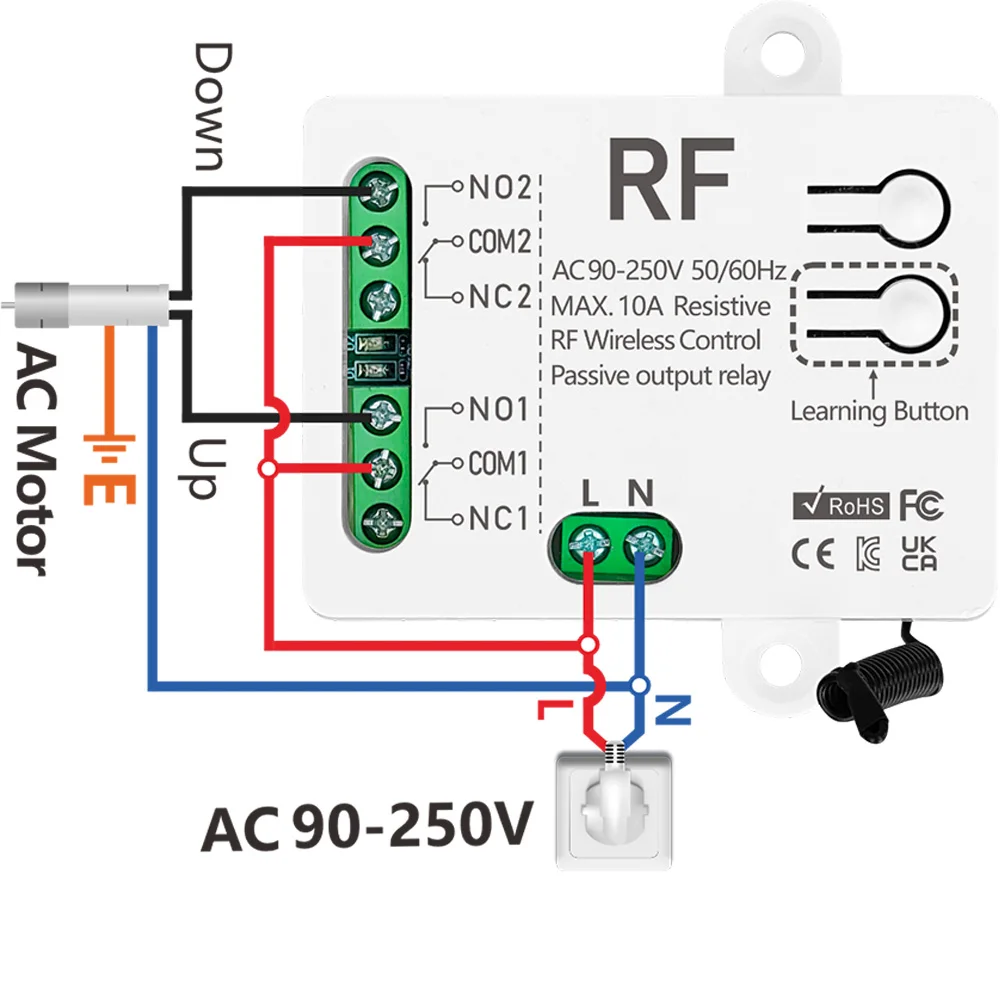

The second Wiring diagram
------- No Extra Power Use for Motor/Electric Door
------- No Extra Power Use for Motor/Electric Door

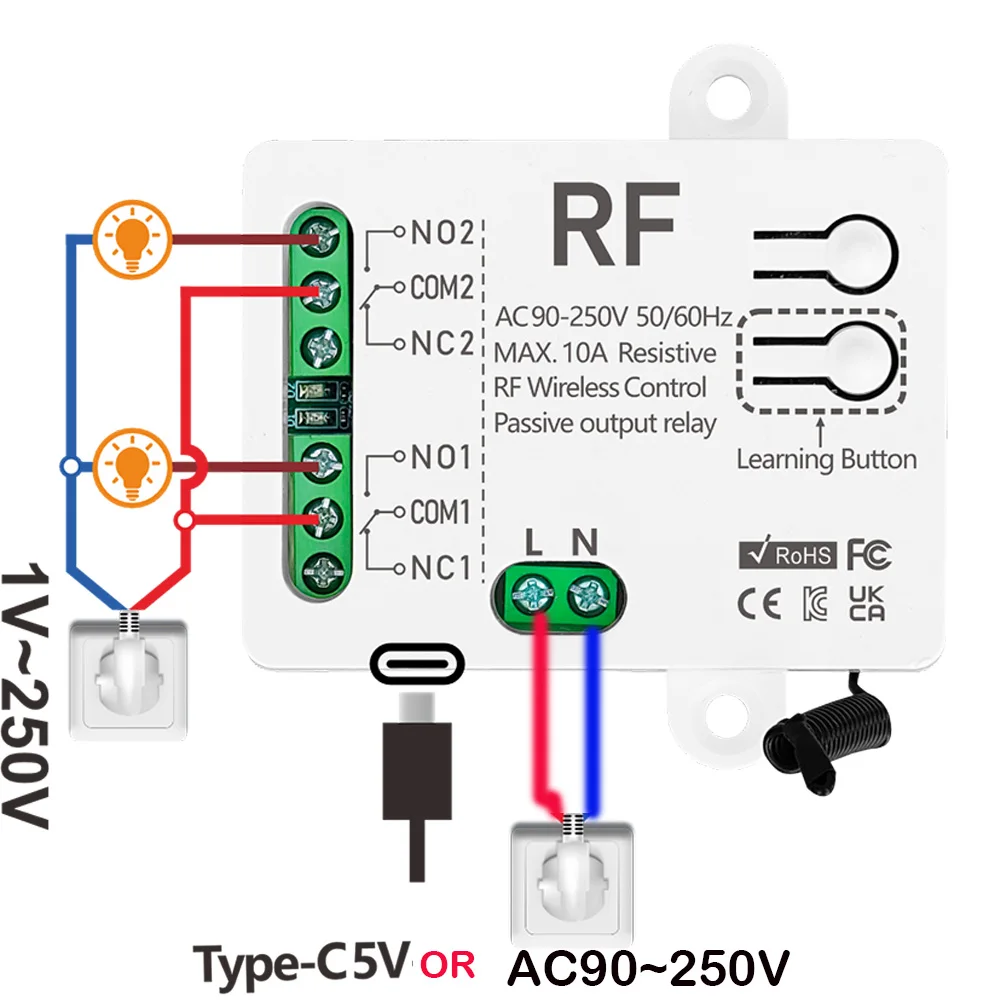

The third Wiring diagram
------- Extra Power Use for Light/Home appliance
------- Extra Power Use for Light/Home appliance
The fourth Wiring diagram
------- Extra Power Use for Motor/Electric Door
------- Extra Power Use for Motor/Electric Door
On this product detailed page, there is a demonstration video for your reference.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
