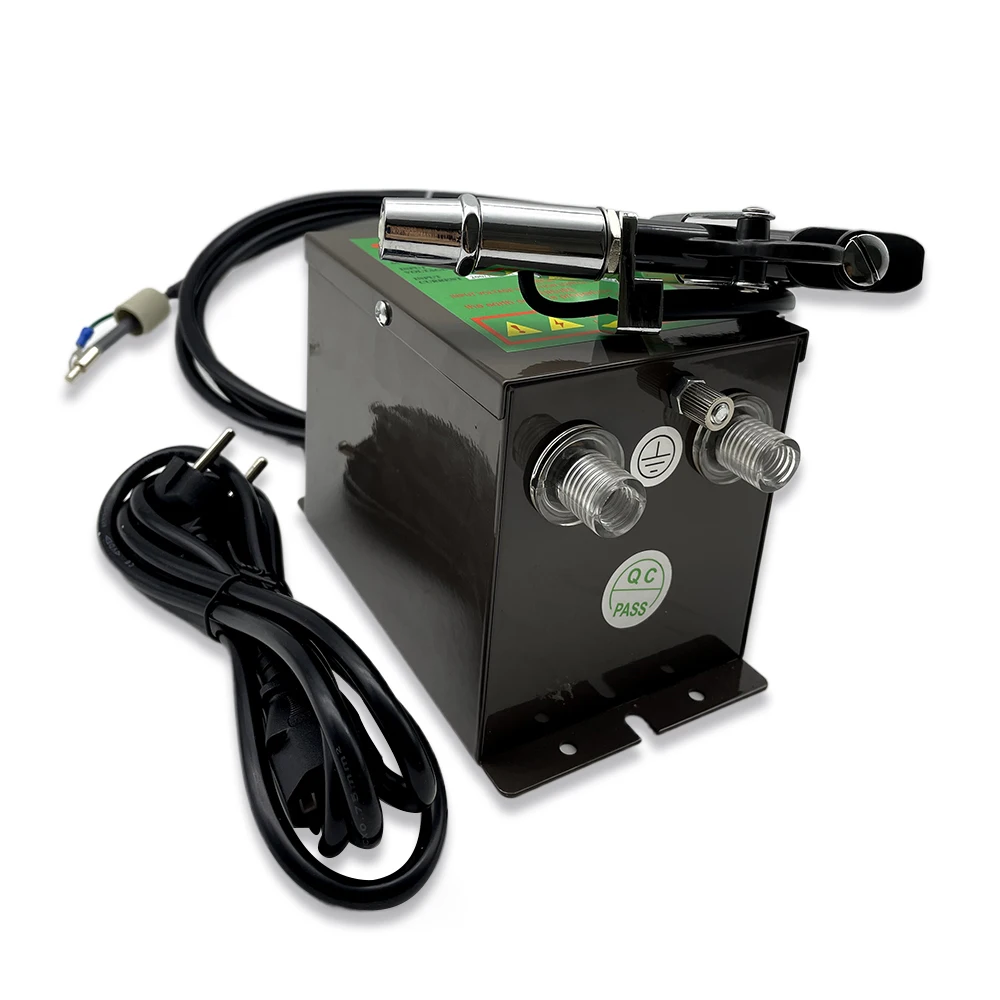

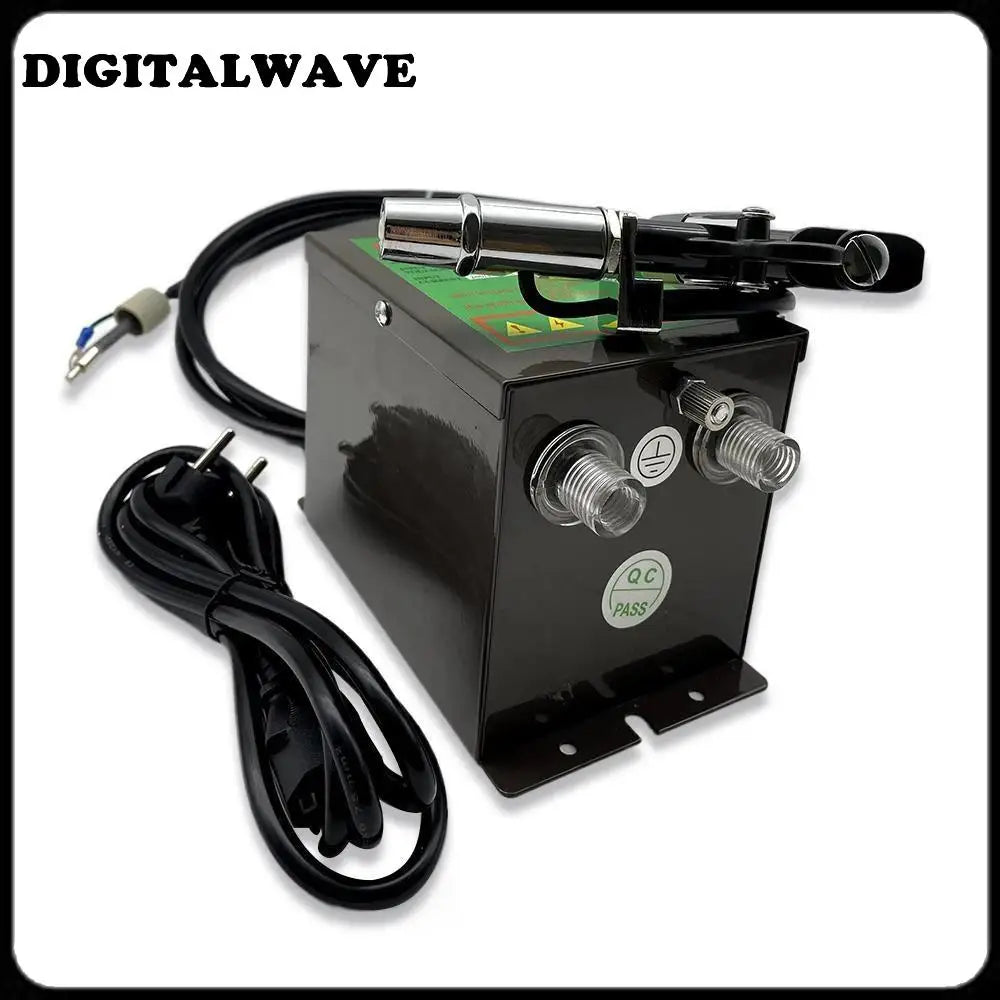

SL-004 Antistatic Ionizing Air gun Static Eliminator with SL-007 High Voltage Generator 110V/220V

SL-004 Antistatic Ionizing Air gun Static Eliminator with SL-007 High Voltage Generator 110V/220V

$68.99 USD
$100.90 USD $68.99 USD
Sale Sold out
Shipping calculated at checkout.
Sl-004 Handheld High Efficiency Ion Wind Nozzle Ion Wind Gun Static Eliminator High Voltage Ion Generator


Product parameter

product code:WL00049

Name: Ion Air Gun

Packing size: 32*23*22

Package weight: 3.5KG

Voltage: 110V/220V

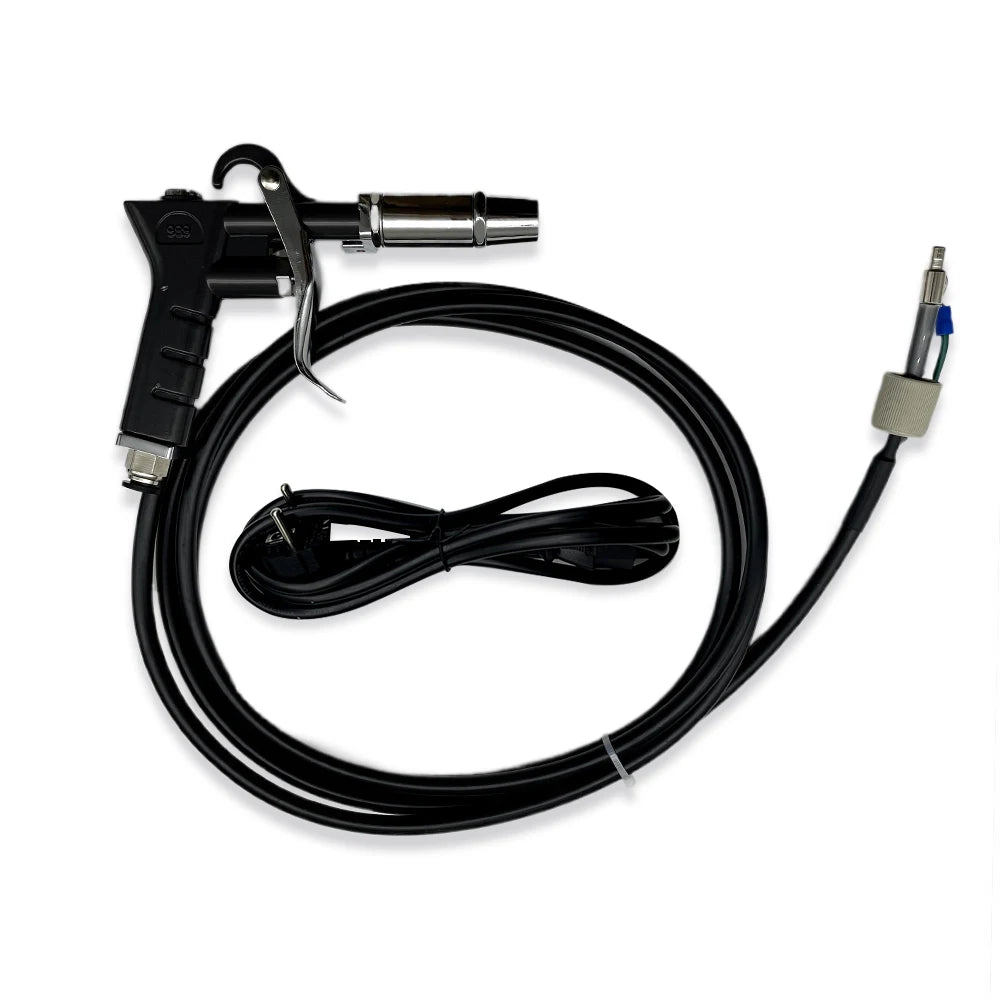

SL-004 Manual Type In addition to Static Ionizing Air Gun

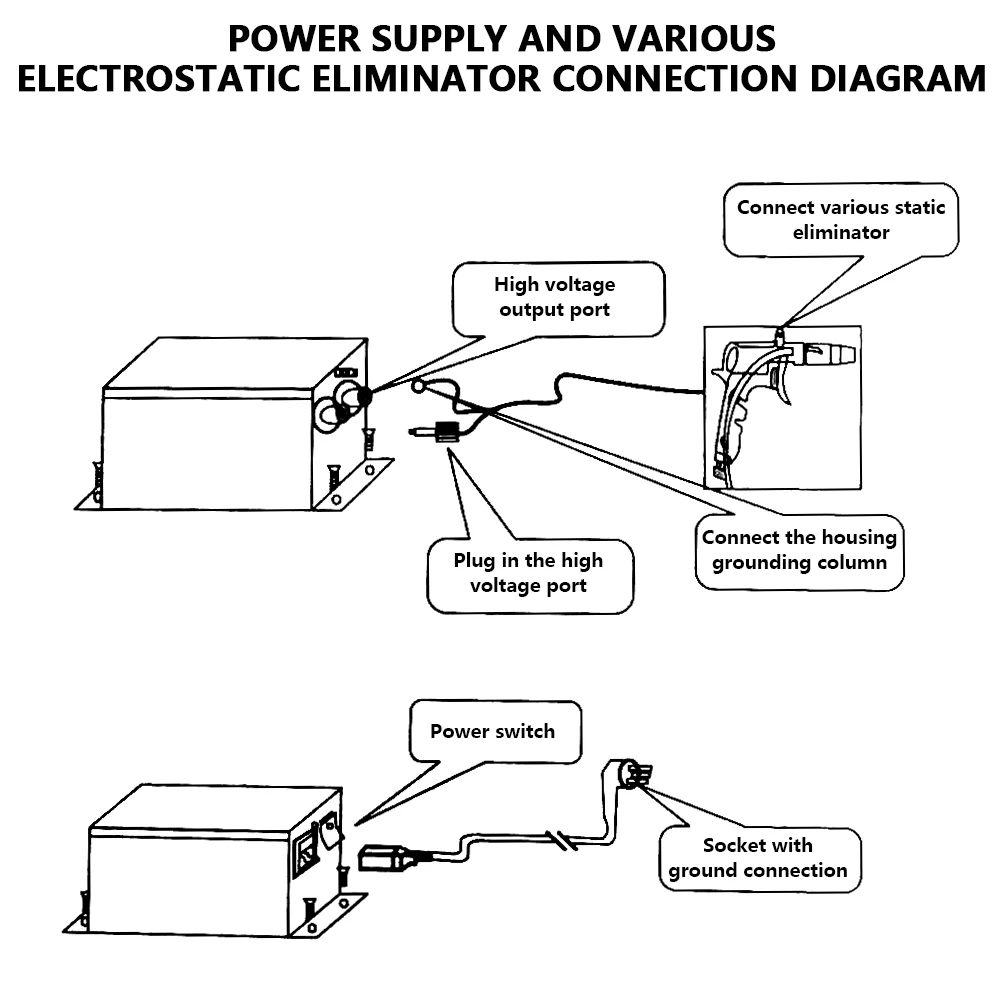

SL-004 manual anti-static and dust-removing ion air gun is a hand-held static eliminator that can provide strong ion wind to objects. Designed for large air volume dust removal and neutralization of static electricity. Mainly used in precision electronic products, electronic assembly lines, spraying equipment, pharmaceutical manufacturing, etc. The ion action distance can be up to one meter, and it needs to be used with a matching power supply body. (The power supply needs to be purchased separately). The SL-007 power supply series can provide power for 2 or (4) static eliminators. According to the operation manual and the logo on the product, the power supply and static eliminator can be easily installed and connected. It is designed and manufactured specifically for high-efficiency ion wind nozzles and ion wind guns.

technical parameter:

Working voltage: 4.6KV

Current consumption: 200uA

Operating temperature -10~ 50°C

Weight: 0.55Kg

High voltage cable length: 3 Meters

Air pressure: 5~7Kg

Air velocity:> 10m/sec


Test Results:

Test conditions Test voltage: 5KV- 500V Operating voltage: 4.6KV Ambient temperature: 22°C

Distance 30mm 90mm 150mm

Neutralization time is positive 0.1s 0.4s 0.7s

Minus 0.1s 0.3s 0.8s

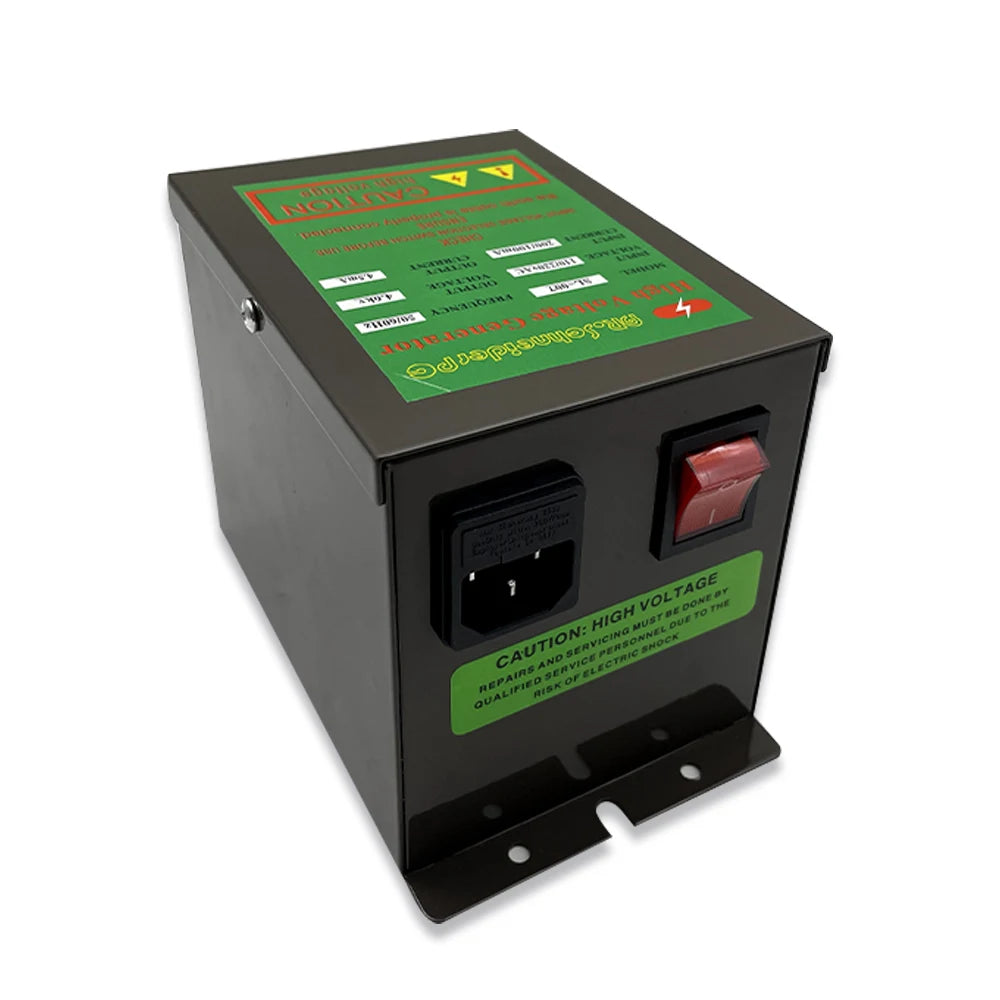

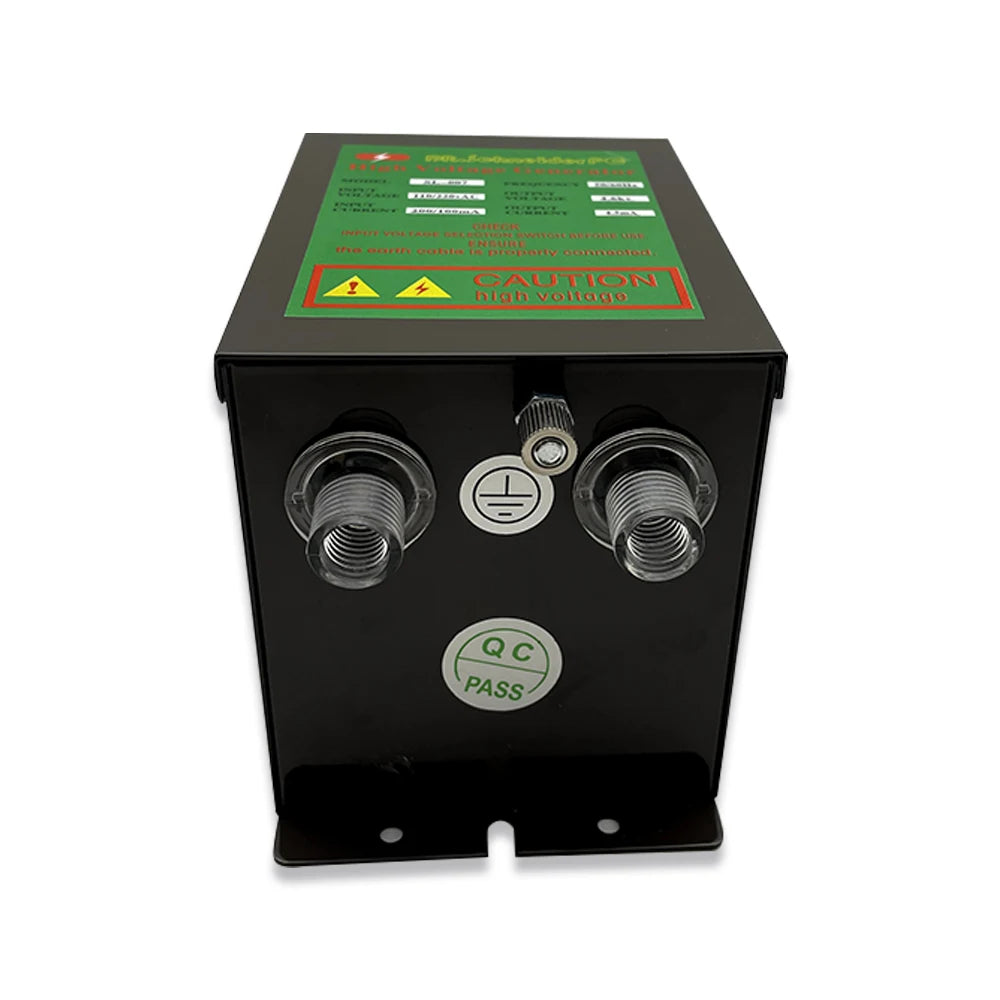

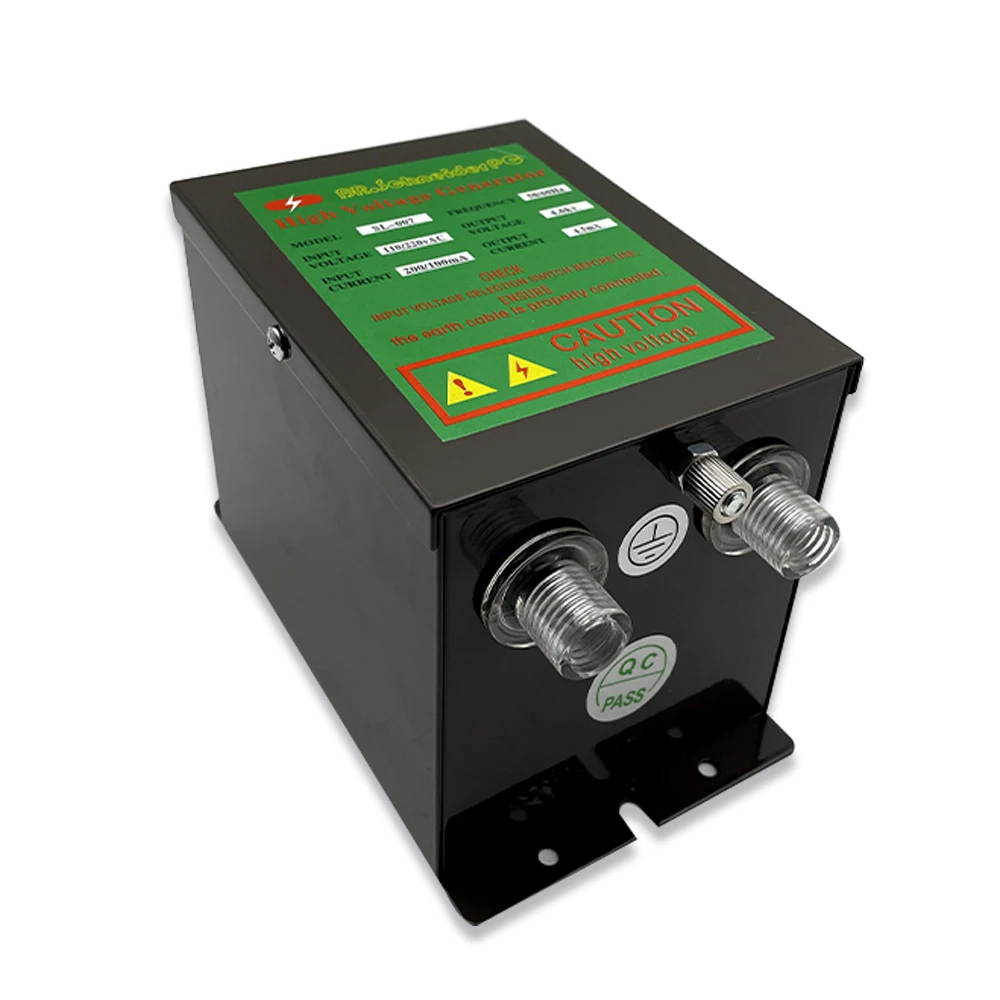

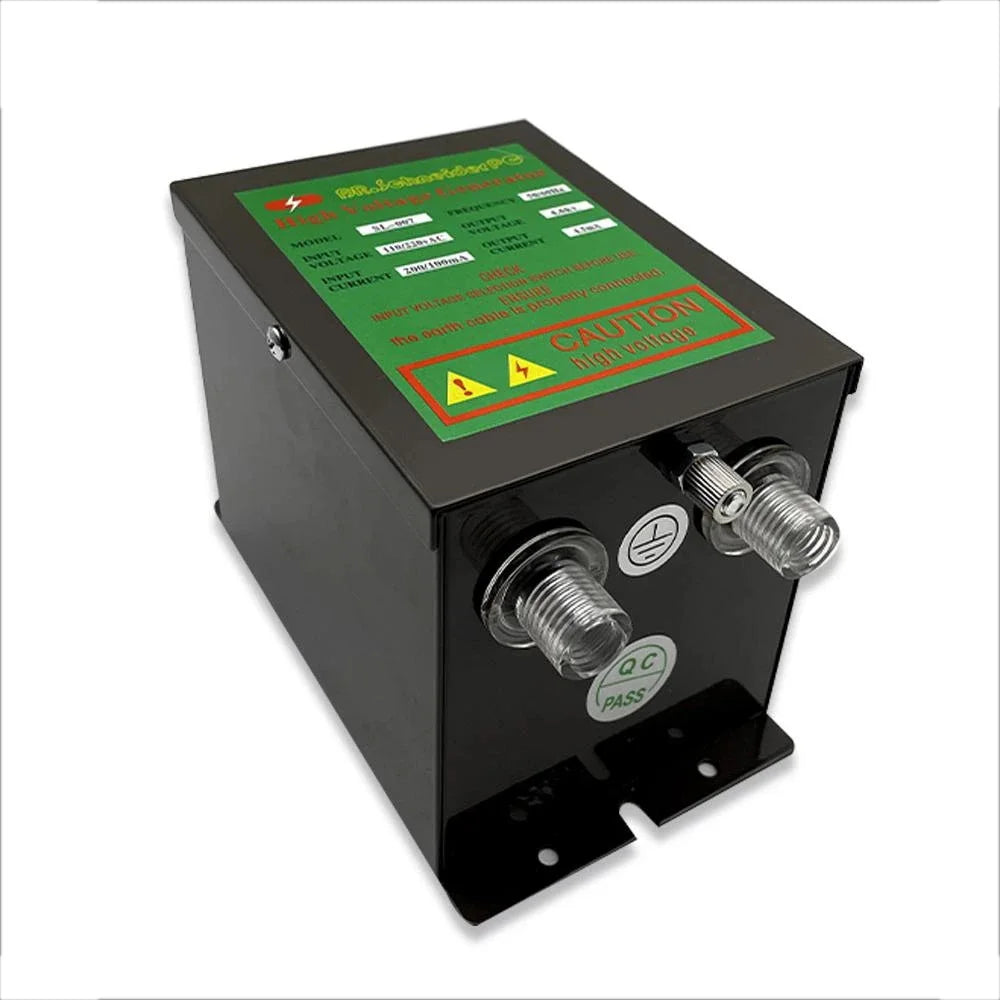

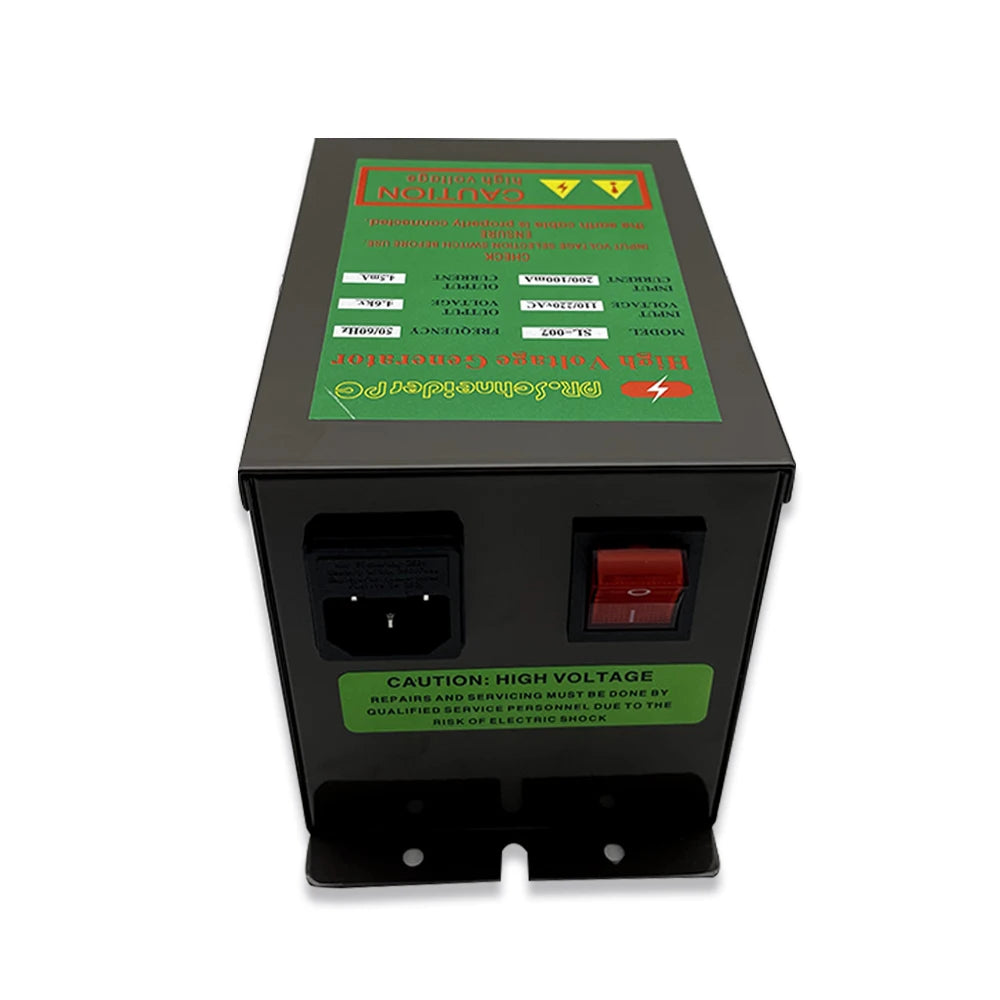

SL-007-tow_ -high voltage ion generator

The SL-007 high voltage generator is mainly equipped with air gun, air nozzle, and wind snake static eliminator.

technical parameter:

Working voltage: 110V/60HZ or 220V/50HZ

Current consumption: 0.23A or 0.12A

Operating temperature: -10~ 50°C

Weight: 3.3Kg

Output voltage: 4.6Kvx2

Output current: Max 4.5mAtechnical parameter:

Working voltage: 110V/60HZ or 220V/50HZ

Current consumption: 0.23A or 0.12A

Operating temperature: -10~ 50°C

Weight: 3.3Kg

Output voltage: 4.6Kvx2

Output current: Max 4.5mA.

technical parameter:

Working voltage: 110V/60HZ or 220V/50HZ

Current consumption: 0.23A or 0.12A

Operating temperature: -10~ 50°C

Weight: 3.3Kg

Output voltage: 4.6Kvx2

Output current: Max 4.5mA

Notice :

1.Regarding import duties: If the customs points out that taxes and customs clearance must be paid, the buyer needs to pay the duties. We do not bear any duties or import taxes. If the buyer is unwilling to pay customs duties and customs fees, we will not refund.
2.About customs clearance: For countries that are difficult to pass through customs, such as: Brazil, Chile,Turkey, Argentina, etc. Make sure you have the ability to pass customs. We do not give a refund if the buyer cannot go through customs and Customs deducts the package.
3.If your place is remote ,then need to pay 38usd .
